Hydraulic Vertical Platform Lift 250kgs Wheelchair Elevator for Sale
- QING DAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4m Wheel Chair Lift for Disabled
-
1m Hydraulic Electric Platform Lift for Disabled People
-
Hydraulic Wheel Chair Lift for the Disabled and the Elderly
-
3m Hydraulic Wheel Chair Platform Lift
-
High Quality 250kg Wheel Chair Lift for Disabled/hydraulic Wheelchair Lift
-
5m Hydraulic Wheel Handicap Chair Lift for Sale
Product Details
| Place of Origin | Shandong, China | Brand Name | TRUE WIN | |
| Model Number | LRL0.25-2 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 1.5kw | |
| Rated Loading Capacity | 250KG | Min. Lifting Height | 60MM | |
| Max. Lifting Height | 1200MM | Table Size | 1220mm*915mm | |
| Overall Dimensions | 1220mm(L)*1400mm(W)*460 | Weight | 350KG | |
| Certification | CE / ISO 9001 | Warranty | 12 Months | |
Product Description
wheelchair lift elevator
1.Load capacity: 300kg
2.CE / ISO9001
3.multi-point control
4.Non-pit installation
5.Emergency lowering
6.vertical lifting structure
7.hydraulic drive,smooth easy
Attention:our products can be made by your needs.
Platform size | 1200mm(L)x1000mm(W) |
Max Platform Height | 1500mm |
Min Platform height | 80mm |
Configuration | Open through or front and side entrances |
Speed | 60mm/s |
Load capacity | 250kg~350kg |
Control voltage | 24V/DC |
Power Output | 2.2kw |
Power Input | 220V/50HZ/25A (or customized for local power supply) |
Drive System | Hydraulic |
Control Mode | Inching Switch or Automatic |
Drive Control | Self-resetting system |
Overload | Protection Over current relay |
Guard panel & drive cabinet (framework) | Aluminum Alloy / 304 stainless steel |
Operation Panel | Polished aluminum Alloy |
Safety Wane Working Range | 75° |
Working Condition | Both indoors and outdoors |
Working temperature | From -10°~60°C |

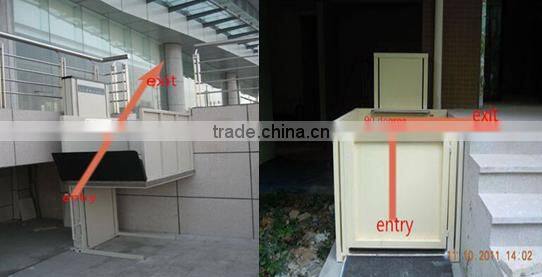

A wheelchair lift is a mechanical device that is designed specifically to transport a wheelchair or motorized scooter and individual from one floor to another. This allows wheelchair users the opportunity to move freely within a multi-floored building while taking the wheelchair with them so they are fully independent between floors
1.Vertical elevating system. Suitable for indoor or outdoor applications requiring vertical transportation
2.Easy Installation.It can be directly installed into the ground without architectural supporting pits
3.Easy operate and safety.Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4.Emergency descending:When power failure, manually descend the device.
Safety protection device:
(1)Emergency Stop:The lifting and lowering process can be stopped immediately by pressing the emergency button.
(2)Safety device:
Safety Interlock:Lock the platform when it is out of control
(3)Safety Sensor:The operation must be stopped immediately the safety edge meets obstacles during operation.
(4)Emergency lowering:The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
(5)Auto-flap:Turn up after lifting]
(6)Safety Interlocking: The lifting platform shall not run if operates improperly.


1.Inclined strair climbing lifts (sometimes called a Stair chair lift, stairglide, Stairway Lifts or stair climber) are the perfect, affordable solution to mobility issues with your stairs, making your whole home accessible again. Stair lifts are mainly intended to take persons up the staircase with the ease of usability. The stair lifts are mainly utilized by the people confined to a wheel chair or who have knee problems or other medical conditions which make staircases difficult to climb. Moreover, they are easy to install.
2.It is widely used in residential areas, hotels, administrative offices buildings, subways, banks, stadiums, hospitals and other public places. For the aged and disabled people.
3.Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
4.It can be directly installed into the ground without architectural supporting pits and easy to operate
We are a professional manufacturer of kinds of Hydraulic Lift in China. Welcome to visit our website for more details
Shan Dong True Win Construction Material Co.,Ltd is a professional manufacturer of aerial working platforms,logistics equipments and handling equipment for logistics ,Our company main products are: Mobile scissor lift, Self-propelled scissor lift, Stationary scissor lift, Aluminum alloy lift , Crank arm type lift, Guide rail lift, and Hydraulic yard ramp,have 8 series and more than 60 varieties. They are widely used for many industries such as plant maintenance, industrial installation, equipment's repair and maintenance, property management, warehouse, airport, port, station, gas station, stadium, museum, exhibition hall. all of our products have passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China and also has passed ISO9001-2000 quality system certification , the quality and performance of our products have won acceptance,all its products are not only sold well at home, but also exported to 30 countries around the world,mainly in Europe , south-Africa ,middle-east,south-east Asia,USA and south-Afr ica.
FAQ:
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Q:What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:What’s the advantage of your company?
A:We have exported our lifts and service to more than 100 countries. We have speclized team work for you, you will get our feedback within 24 hours./ Germany and Italian advancedmanufacturering technology.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
