High Quality Accessible Control Vertical Lift Platform for Wheelchair

True win products show case

Quick Details

Place of Origin: Shandong, China (Mainland)                                        Brand Name: True Win
Model Number: VL/Y                                                                                    Lift Mechanism: Telescoping Lift
Lift Drive / Actuation: Hydraulic                                                                   Power: 0.75kw
Rated Loading Capacity: 250kg                                                                Min. Lifting Height: 60mm
Max. Lifting Height: 10m                                                                              Table Size: 1400*1000mm
Overall Dimensions: 1200*800*1700mm---2500*1350*2300mm    Weight: 400kg
Certification: CE ISO9001                                                                           Warranty: 12 Months
After-sales Service Provided: Overseas third-party support available Name: Accessible vertical lift
Usage: Disabled Person                                                                            Color: Customers' Requirements
Voltage: AC220V/50HZ                                                                                Platform: Strong
Feature: Easy Operation Safety Convenience

Packaging and Delivery:

packaging Details:plywood case

Delivery Details:Shipped in 25 days after payment

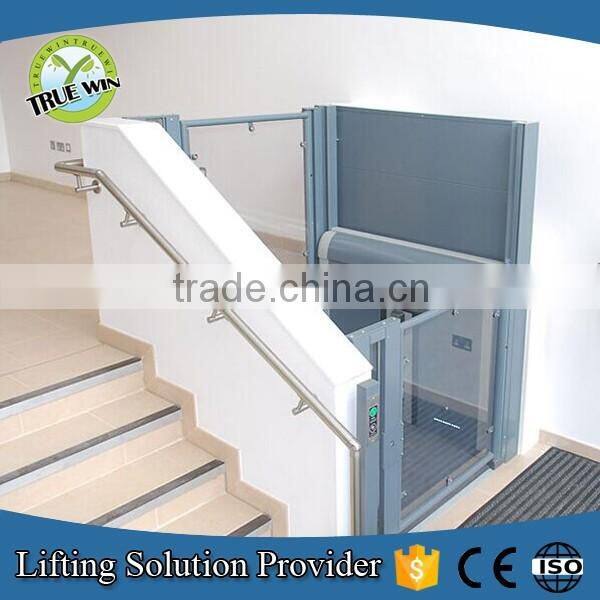

Be customer-made access control Widely used vertical man lift wheelchair platform

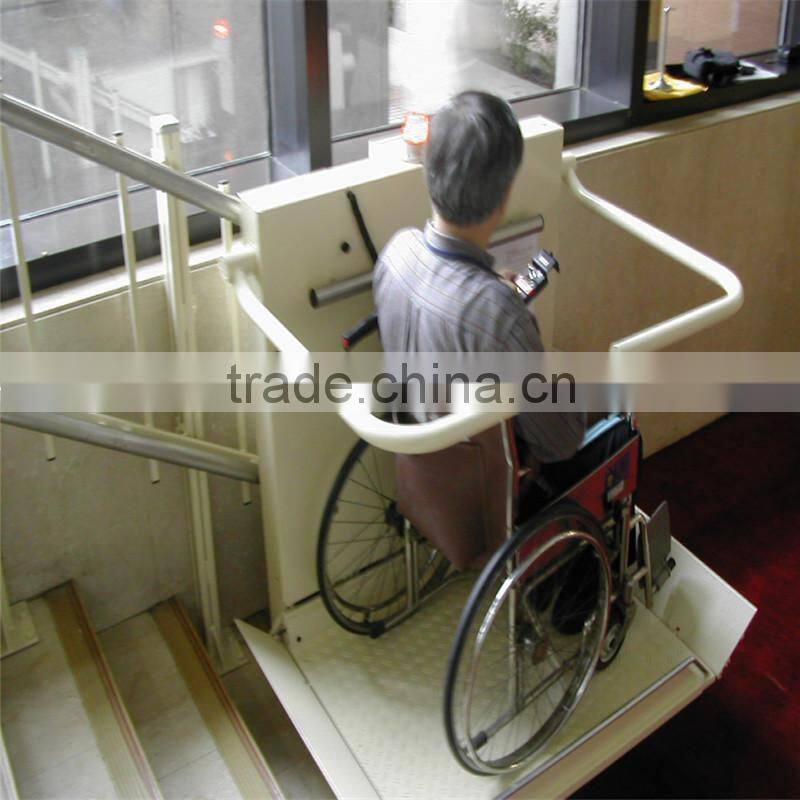

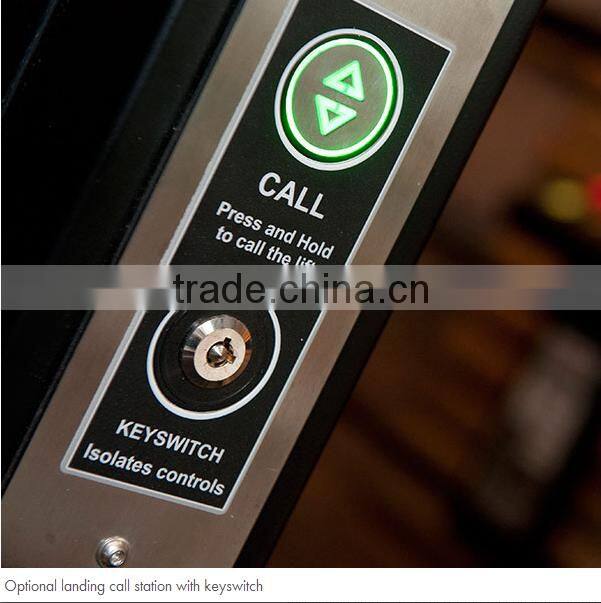

All the buttons are specially designed for disable people both in shapes and appearances .The platform is a square space you can just put a wheelchair right in there.

Fences,anti-crash device,emergency call-in device,all kinds of active and passive devices are equipped to make sure everyone in this lift is safe.The wheelchair lift is made of high strength steel and other life-long parts for long term use.

products details:

Technical Parameters                                                      Power 220V/50HZ/25A
Platform size 1400mm*1000mm                                   Self-height 65mm
Max Lifted height 8000mm                                               Lifting speed 0.06-0.1m/s

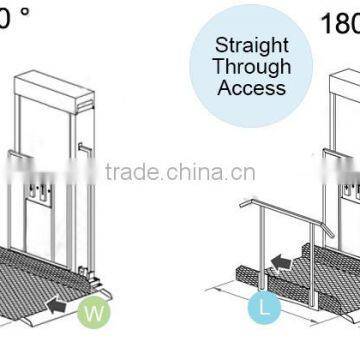

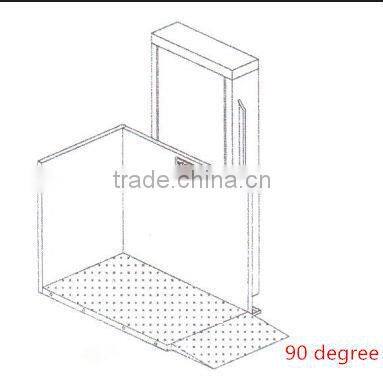

Load capacity 300kg                                                         Type of entrance and exit 90 or 180 degrees
Platform checkered plate                                                 Auto-flap working angle 75 degrees
Weight less than 400kgs                                                 Lifting system hydraulic or screw
Control voltage 24V/DC                                                    Lifted type Self-resetting system
Overload protection Over -current relay control           Working Temperature 20 below zero to 60 degrees
Install type Non-pit installation,directly fixed to concrete floor
Emergency stop The lifting and lowering process can be stopped immediately by pressing the emergency button.
Manual control pressing the manual value or turning screw
Safety fence there have fence blow the platform,when it descending,if touch angthing,it will stop.

Our company:

Our service:

1- One year warranty for whole machines.

2- Providing free quick-wear part.

3- Low charge for continue maintenance when warranty is expired.

4- Exclusive engineer support at any time.

5- We can provide free training to end-users.

Teel:0531-85942227

Fax:0531-85942228

Web:ture

Add:A407.NO.3,Fenghuangshan Road,Tianqiao District,Jinan,Shandong provence,China(Mainland)

Welcome to contact us!
