Truck Mounted Concrete Mixer With Good Quality
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zeyu | Model Number | CMT-6 | |
| Weight | 7560kg | Dimension(L*W*H) | 7225*2285* 3570 | |
| Power(W) | 96kw | Certification | ISO9001:2008 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

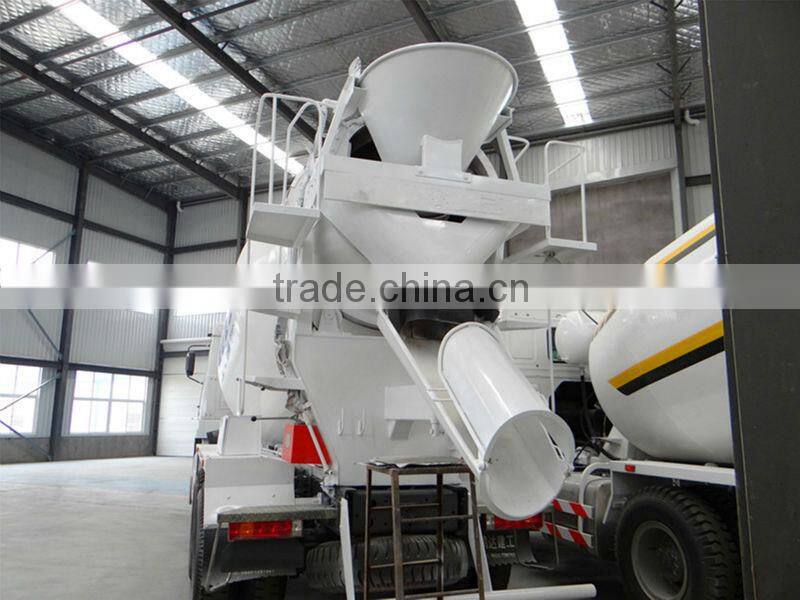

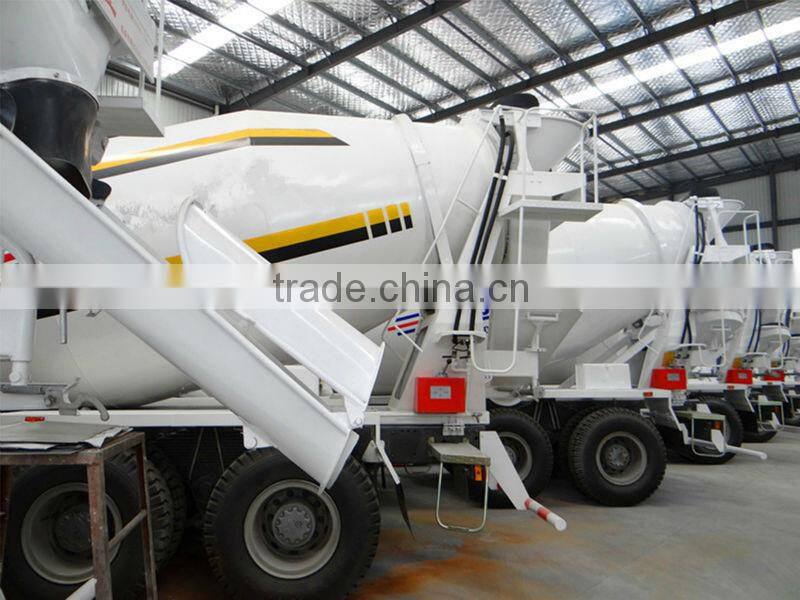

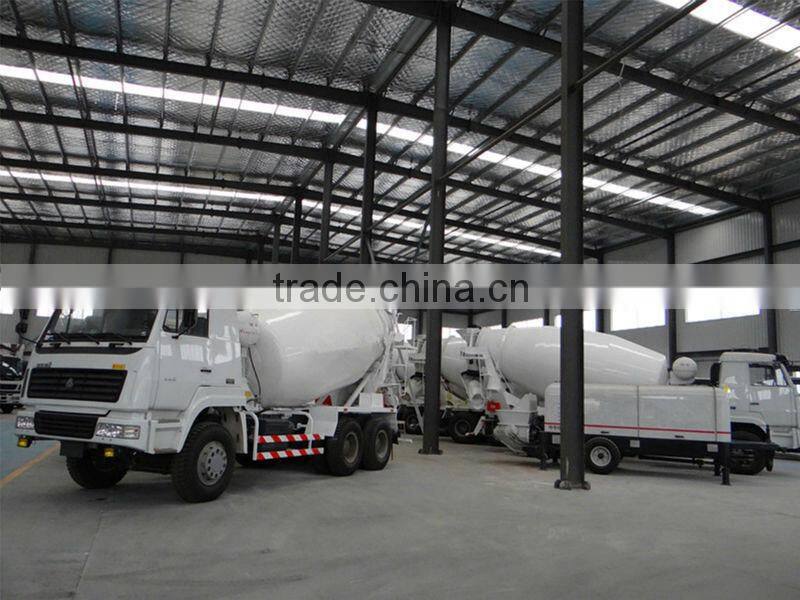

truck mounted concrete mixer
The mixing tank of the concrete mixer transport vehical and the chassis of the damper are fixed together with riding bolts and special cushion iron to form a concrete transport vehicle. Its main function is to send the well mixed concrete to the designated location in time. It could also be used as a mixing tank.
The characteristics of the machine are that it does not rely on the outside power, and the gravity center and structure adopt the optional design, and its appearance is elegant and the operation is smooth. The hydraulic components are the high quality products from national key enterprises, the mechanical components have reasonable structure with convenient operation snd stable performanc. The mixing tank could gyrate when the truck is on the march, and no undesirable phenomenon like slurry discrete or sedimentation occur, so as to ensure the quality of the will mixed cement paste during the process of transportation.
Name | Model | CMT-6 | |
6m3 concrete truck mixture |
| 6m3 | |
Chassis model |
| Tangjun ZB3160TPE3F | |
Kerb mass | Kg | 7580 | |
Overall dimensions | mm | 7025*2285* 3570 | |
Wheelbase | mm | 3700 | |
Front suspension | mm | 1290 | |
Rear suspension | mm | 2035 | |
Max. gradability |
| 25 | |
Max. speed | km/h | 83 | |
Min.turning diameter | m | 15 | |
Fuel type |
| diesel | |
Cluth |
| Double disc dry joint | |
Transmission way |
| Shaft drive | |
Driving type |
| 4*2 | |
Turning way |
| Hydraulic power steering | |
Service brake |
| Air-brake | |
Parking brake |
| Air brake braking | |
Tire |
| 900-20 | |
Emmission standard |
| GB3847-2005 GB17691-2005 (IV) | |
Engine model |
| YC4D130-41 Turbocharged | |
Engine type |
| Forced circulation cooling | |
Displacement | L | 4.200 | |
Power | kw | 96 | |
Max. stardard speed | r/min | 3200 | |
Geometric volume | m3 | 10 | |
Rated stirring volume | m3 | 6 | |
Feeding speed | m3/min | 1 | |
Discharging speed | m3/min | 0.8 | |
Max. rotate speed | r/min | 6-15 | |
Flange slant angle | ° | 16 | |
Max.diameter | mm | 2100 | |
Speed reducer |
| Ky67-3-F | |
Hydraulic pump |
| 63 gear pump | |
Hydraulic motor |
| Gerotor motor | |
Heat device |
| 24V air-cooled | |
Tank volume | L | 62 | |
Water supply way |
| Air pressure water | |
1. more than 100 engineers available for oversea service,supply face to face training on buyer’s worksite
2. Offer skillful after-sale-service specialists are available for all customers at 7/24 hours every week.
truck mounted concrete mixer
