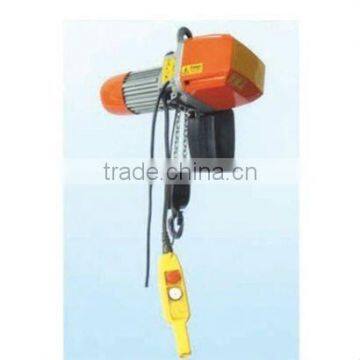

Single-speed Single-phase electric Chain Hoist
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Cheuks | |
| Model Number | HHXGHL | After-sales Service Provided | No overseas service provided |
Product Description
The Product Intro of Single-speed Single-phase electric Chain Hoist
Offered as hook suspension or with a range of push, geared or electric trolley
High efficient and economy hoist motor with single speed
Reliable electro-magnetic brake. over-heat motor protector,inner electric control unit,48V lower controlvoltage and limit switch will protect the machine or operator from damage.
High-strength and light-weight, completely lubrication and cooling, easy operation and maintenance.
| Model | Unit | HHXGHL | HHXGHL | HHXGHL | HHXGHL | HHXGHL | HHXGHL | HHXGHL | HHXGHL | |
| 0.125t | 0.25t | 0.16t | 0.32t | 0.25t | 0.5t | 1t | 2t | |||
| Rated capacity | Ton | 0.125 | 0.25 | 0.16 | 0.32 | 0.25 | 0.5 | 1 | 2 | |
| Test load | Ton | 0.16 | 0.32 | 0.2 | 0.4 | 0.32 | 0.63 | 1.25 | 2.5 | |
| Lifting Speed | m/min | |||||||||
| No. of Load Chain falls | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | ||
| Standard lifting height | m | 3 | ||||||||
| Output power | kw | 0.4 | 0.8 | |||||||
| Rating factor | %ED | 25 | ||||||||
| Load Chain dia.×P | mm | 5×15 | 8×24 | |||||||
| Cable Length | Power source | 3Core(1.5mm2) | ||||||||
| Push button | 5Core(1mm2) | |||||||||
| Net weight | kg | 25 | 25.5 | 27 | 29 | 27 | 29 | 57 | 60 | |
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
