Home > Products > DC Electric Vehicles Fuse > 700V 63A 63FE DC Vehicle Fuse
700V 63A 63FE DC Vehicle Fuse
- 1500 Piece / Pieces per Month
- Ningbo Shanghai Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | SLFC | |
Model Number | SLEV | Type | Fuse Link |
Inner : Bubble bag and inner box
Outer: Standard export carton
Product Description
700V 63A 63FE DC Vehicle Fuse
1.Application:
This series fuse is suitable for rated DC voltage to 700V, rated current to 1200A,as a comprehensive protection for vehicle battery,vehicle wiring system and inverter,and the rated breaking capacity is up to 30KA.They conform to national standard GB13539,IEC60269 and related standards of international electric vehicle industry.
2.Normal operating conditions
The ambient air temperature is between -40℃ and 75℃,the installation site altitude not exceed 3500m,relative humidity not exceed 90%.
3.Use category
“gR” means the full range breaking capacity of fast DC fuse.
4.Structural fratures
The variable cross-section fuse body made by pure copper piece is sealed in the fusion tube which is made by the high stren gth porcelain, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The
two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shapes structure.
5.Fusing time & Test current
NO | Teat current(A) | Fusing time(s) | |||
In<60A | In≥60A | ||||
Min. | Max. | Min. | Max. | ||
1 | 1.0In | When the fuse-links are tested according to 1In,the temperature rising values of the fuse-linksshall not exceed 50 deg. | |||
2 | 1.1In | 14400 | ∞ | 14400 | ∞ |
3 | 2.0In | 0.5 | 100 | 1 | 300 |
4 | 3.0In | 0.1 | 15 | 0.2 | 30 |
5 | 5.0In | 0.05 | 1.0 | 0.05 | 1.0 |
6. main technical data
6.1 Rated Voltage 700V
Chart 1
Fuse model |
Rated vltage (V) |
Rated current (A) | overall dimension/size | |||||||||
drawing NO. | A | B | C | D | E | F | G | H | J | |||
SLEV18B63 | 700 | 2-63 | 1 | 77.5 | 16.5 | 47.5 | 67 | 62 | 7 | 12 | 18 | 9.5 |

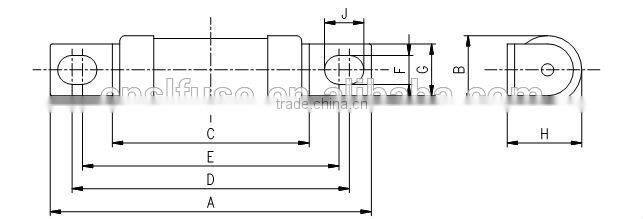

Drawing 1
Packaging details :
Inner : Bubble bag and inner box
Outer: Standard export carton
Delivery details :
1 - 3 days according to your quantity.
Delivery by express or by sea based on your require.
