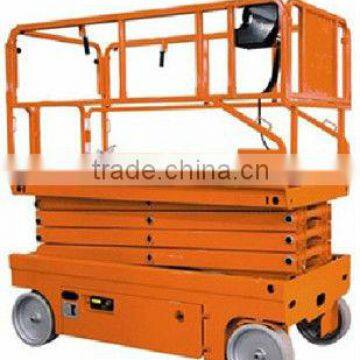

Full Electric Walkie Scissor Lift --JCPT(DC)
- Shanghai
- T/T Credit Card
You May Like
-
Full Electric Walkie Scissor Lift With Electric Motor--JCPT(DC)
-
Electric Motor Walkie Scissor Lift --JCPT(DC)
-
Self-Propelled Rough-Terrain Scissor Lift With CE--JCPTRT
-
AC Motor Self-propelled Scissor Lift (rough-terrain) --JCPTRT-23RT
-
Full Electric Walkie Upright Scissor Lift With Hydraulic Motor
-
7.8m Lifting Height Full Electric Walkie Hydraulic Scissor Lift
Product Details
| Place of Origin | Shanghai, China | Brand Name | Cheuk's | |
| Model Number | JCPT(DC) | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | pls check the below | |
| Rated Loading Capacity | pls check the below | Min. Lifting Height | 1750MM | |
| Max. Lifting Height | 15700MM | Table Size | pls check the below | |
| Overall Dimensions | pls check the below | Weight | pls check the below | |
| Certification | CE | Warranty | 12 Months | |
| After-sales Service Provided | No overseas service provided |
Product Description
The Product Intro of Full Electric Walkie Scissor Lift(electric motor) JCPT(DC)
1.Roll-out extension platform provide more workspace
2.Neatly folding guardrails make it easy to maneuver through doorways,
into elevators and throughout other height-restricted areas
3.Six models are available with the maximum working height at 8m to 16m
4.Zero-turn radius and compact design provide access in and around confined
work areas
5.25% gradeablility when driving on slopes
6.Swing-out tray for easy maintenance access
7.On-board diagnostice help operators troubleshoot on the fly and make
adjustments in the field to maximize uptime
The Specification of Full Electric Walkie Scissor Lift(electric motor) JCPT(DC)
| Model | unit | JCPT0808 DC | JCPT1008 DC | JCPT1012 DC | JCPT1212 DC | JCPT1412 DC | JCPT1612 DC |
| Rated capacity | kg | 380 | 230 | 450 | 320 | 230 | 200 |
| Extend platform Rated capacity | kg | 113 | |||||
| Max number of people | 2 | ||||||
| Max working height H1 | mm | 8000 | 10000 | 10000 | 12000 | 13800 | 15700 |
| Max platform height H2 | mm | 6000 | 8000 | 8000 | 10000 | 11800 | 13700 |
| Overall length B | mm | 2480 | 2840 | ||||
| Overall width C | mm | 810 | 810 | 1150 | 1150 | 1150 | 1150 |
| Over height(rail unfold) | mm | 2210 | 2340 | 2340 | 2470 | 2590 | 2590 |
| Over height(rail fold) A | mm | 1750 | 1880 | 1860 | 1990 | 2170 | 2170 |
| Working platform size D | mm | 2270×810 | 2270×810 | 1270×1120 | 1270×1120 | 2270×810 | 2640×810 |
| Platform extend size | mm | 900x810 | 900x1120 | 900x810 | |||
| Ground clearance (stowed) | mm | 100 | |||||
| Ground clearance(lifting) | mm | 19 | |||||
| Wheelbase | mm | 1870 | |||||
| Min turing radius(inside) | mm | 0 | |||||
| Min turing radius(outside) | mm | 2190 | 2190 | 2330 | 2330 | 2200 | 2650 |
| Drive Motor | V/kw | 24/1.5 | |||||
| Lifting Motor | V/kw | 24/3 | |||||
| Drive speed(stowed) | km/h | 4 | |||||
| Drive speed(lifting) | km/h | 0.8 | |||||
| Raising/Falling speed | sec | 22/34 | 22/40 | 30/33 | 30/38 | 84/38 | 88/60 |
| Battery | 4×6V/210Ah | ||||||
| Charger | V/A | 24/25 | |||||
| Maximum gradeability | % | 30 | 25% | ||||
| Max angle | º | 2-3 | |||||
| Tyre | mm | 381×127 | |||||
| NW | kg | 1950 | 2100 | 2300 | 2730 | 2760 | 2800 |
Standard Configuration
-Proportional controller
-Automatic pot hole protection system
-4x2 drive
-Emergency stop button
-Emergency descending button
-Horn
-Working chronometer
-Transport standard forklift hole
-Extended platform
-Charge protection
-Self-lock door
-Total excursion
-Tracelessness tyre
-Self-actuating brake system
-Oil pipe explosion protection system
-Fault diagnosis system
-Tilt protection
-Motor reset protect
-Buzzer
-Folded rail
-Strut bar for safe overhaul
Optional Configuration
-AC power source connected to platform
-Working lamp
-Rotary strobe light
-Overweight sensor
-Air scoop connected with platform
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
