Stell Antirust Heavy-duty Forklift Loading Ramp

FOB Price

US$ 4,500 - 5,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Truewin
Model Number	TWMD	Lift Mechanism	Telescoping Lift
Lift Drive / Actuation	Hydraulic	Power	2.2KW
Rated Loading Capacity	10T	Min. Lifting Height	1.1M
Max. Lifting Height	1.7M	Table Size	2.1M*7M
Overall Dimensions	2.1M*7M	Weight	2300KG
Certification	CE ISO9001	Warranty	1 Year
After-sales Service Provided	Overseas third-party support available

Product Description

Mobile Loading Dock Ramp Information
1> The regular mobile of this ramp is : width -2m length -11.2m,
2> Adjusting height range -0.8m-1.85m,
3> And it aslo can be designed and produced accordign to customers requirements .
4> This machine is suit for :often materail handling ,warehouse .wharf ,logistics center working place

Mobile Loading Dock Ramp (with landing gear) Dimension
1	Model Number:	DCQY -10
2	Rated Loading Capacity:	10 Ton
3	Working form:	With landing gear (manual one)
4	Max adjustable height:	1800mm
5	Overall length* Overall width:	11200*2100mm
	Platform Size:	2400*2100mm
	Slope Size:	7500*2100mm
6	Table Material:	Gear steel grating (Function:anti-skidding, avoid ponding)
7	Lifting plate:	Size:1000mm Plate Lip: 300*20mm

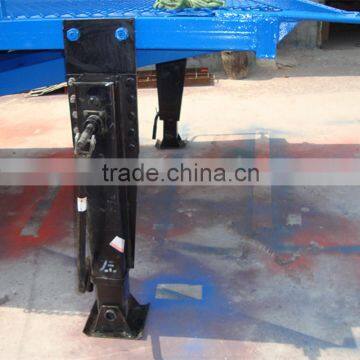

8	Landing gear	Quantity: 1 Pair Static Load: 40 TON

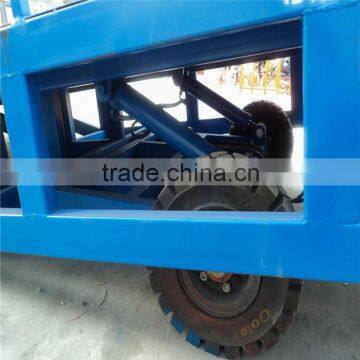

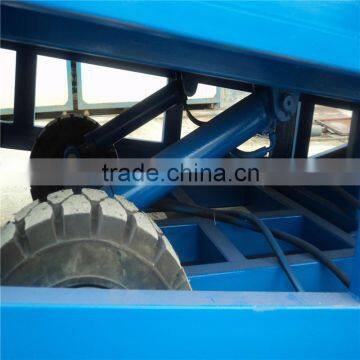

9	Solid tire	Size: 500-8B Diameter:450MM
10	Safety locking	Quantity: 2 pcs
10	Safety locking	Function: lock the container when loading and unloading

Foldable front lips(12mm steel plate) can meet the height changes of trucks.

Moves easily on two big pneumatic tires(solid tires available).

A manual 2-speed hand crank for easy one-person height adjustment.

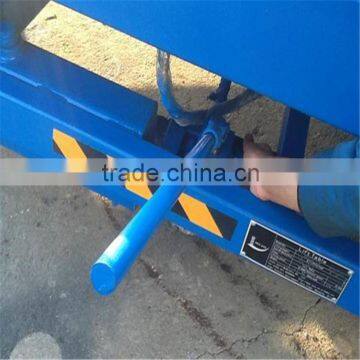

(Optional hydraulic pump or hand crank for positioning yard ramp height).

Our products are widely used in terminals, stations, warehouses and other places. According to the different

needs of users, as the special design in terms of dimensions, load bearing and so on. Hydraulic loading ramps

mounted on the side of the dock, and the dock floor and sides flush

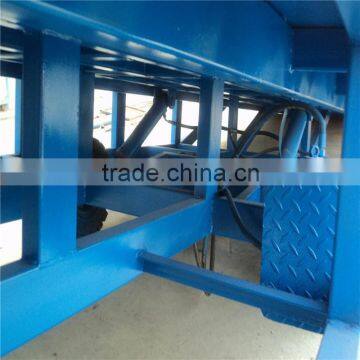

Details&parts:
