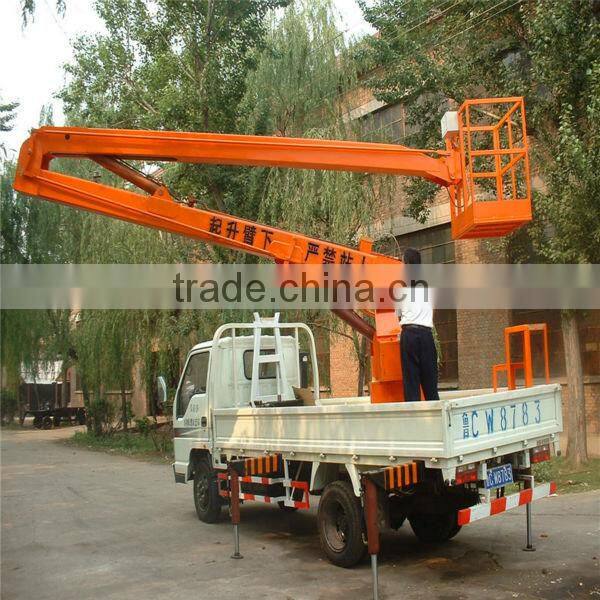

Truck Mounted Electric Attic Ladder Articulating Lift Elevator
- QINGDAO
- T/T
You May Like
-
CE Hydraulic Scissor Arm Lift Platform ,articulating Boom Lift
-
12m 250kg Truck-mounted Man Hydraulic Articulated Arm Lifting Platform
-
CE Electric Vehicle Hydraulic Rising Articulated Lifting Plarform
-
LHSJZ Aerial Work Platform Light Boom Lifts With Hydraulic Scaffolding
-
LHSJZ Hydraulic Articulated Elevator Flexible Arm Lift
-
HYDRAULIC Small Car Propeller Lift Aerial Work Platform Articulated Lifting
Product Details
| Place of Origin | Shandong, China | Brand Name | true win | |
| Model Number | LHSJZ | Lift Mechanism | Articulated Lift | |
| Lift Drive / Actuation | Hydraulic | Power | Articulated Lift | |
| Rated Loading Capacity | 200-225kg | Min. Lifting Height | 7.7m | |
| Max. Lifting Height | 15m | Table Size | 0.6*0.6m | |
| Overall Dimensions | 3.5*1.7*2.9m | Weight | 1500-2000kg | |
| Certification | CE&ISO9001:2000 | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Hydraulic articulated lift is the vertical type, cut fork lifter alternatives, this machine use diesel engine as power, and battery USES electric start, since the leg, the lift, go by oneself, 360 ° rotation operation. This product is simple to operate, easy to use, operation, especially could overhanging operation, across certain obstacles or in a lift, can be a wide range of the characteristics of the multi-point lifting operation, greatly improve the working efficiency.
Specifications
Diesel Construction Articulating hydraulic Boom Lift
1.360-degree rotation /CE/ISO 9001
2.Auto-leveling Outriggers
3.Double control system
4.Customer-design
Hydraulic Articulated Lift Platform Parameters
Model | Working height | Working radius | Traveling angle | Total dimension | Total weight | Lifting speed | Working pressure | Traveling speed | Max endurable wind grade | Loading capacity |
(M) | (M) |
| (MM) | (KG) | (M/S) | (Mpa) | KM/H | (KG) | ||
LHSJZ-6 | 7.7 | 1.5 | 360° | 2300x900x2100 | 1500 | 0.04-0.07 | 8 | 15-20 | ≤5 | 160 |
LHSJZ-8 | 9.7 | 2.2 | 360° | 3000x1200x2500 | 1700 | 0.04-0.07 | 8 | 15-20 | ≤5 | 160 |
LHSJZ-10 | 11.7 | 2.7 | 360° | 4000x1700x3000 | 1800 | 0.05-0.09 | 10 | 15-30 | ≤5 | 160 |
LHSJZ-12 | 13.7 | 3.2 | 360° | 5000x1900x3000 | 1900 | 0.05-0.09 | 10 | 15-30 | ≤5 | 160 |
LHSJZ-13 | 14.7 | 3.5 | 360° | 5500x2000x3000 | 2000 | 0.05-0.09 | 10 | 15-30 | ≤5 | 160 |
Features
1Lift height:4-22m
2.Loadingcapacity:300-1000kg
3.Easyoperationlowmaintenance
4.Platform size: 2600*1600mm
5.No noise and air pollution
6.Longer use time
7.When the electricity is available, usually for Indoor use
8.Voltage: 110V, 220V, 380V, 415V
9.The operation is simple, easy to use, operation, especially could overhanging operation
10.Machine use diesel engine as power, and battery USES electric start since the leg, the lift, go by oneself, 360 o rotation operation
Advantages
1.Turntable 360°all-dimensional rotating;
2.Great mobility, large loading capacity, easy to operate;
3.The operation is simple, easy to use, operation, especially could overhanging operation
4.Machine use diesel engine as power, and battery USES electric start since the leg, the lift, go by oneself, 360 o rotation operation
5.Mobile convenience, high strength, light weight
If you have any interest in our products or any questions, please do not hesitate to contact me. I will help you to know more about our products' detail.
