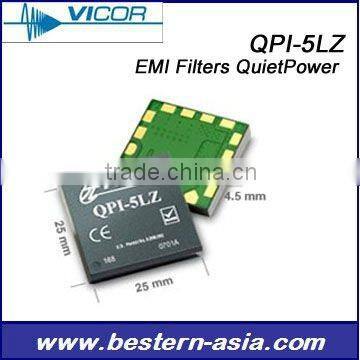

Vicor QPI-5LZ 14 A Active EMI Filter SIP for 24 Vdc Bus
- Hongkong
- Credit Card
You May Like
Product Details
| Place of Origin | United States | Brand Name | Vicor | |
| Model Number | QPI-5LZ | Type | EMI Filter | |
| Transfer Function | All Pass | Package Type | Surface Mount | |
| Nominal Center Frequency | 250KHZ | 3dB Bandwidth | 250KHZ | |
| Input Impedance | 10-40Vin | Stopband Attenuation | 14A |
Product Description
Specifications
1. Vicor QPI-5LZ 14 A Active EMI Filter SIP for 24 Vdc Bus2. 100 Vdc surge 100 ms
3. 14 A rating
4. Low profile LGA package
Vicor QPI-5LZ 14 A Active EMI Filter SIP for 24 Vdc Bus
The QPI-5 active EMI filter is designed for use on a 24 Vdc bus (10 – 40 Vdc), it's 14 A rating supports multiple DC-DC converter loads up to a PCB temperature of 60°C. At a 100°C PCB temperature the QPI-5 supports 12 A loads. and QPI-5 supports industrial and MIL-COTS applications.
Features:
1. 60 dB CM attenuation at 250 KHz (50Ω)
2. 75 dB DM attenuation at 250 KHz (50Ω)
3. 40 Vdc (max input)
4. 100 Vdc surge 100 ms
5. 707 Vdc hipot hold off to shield plane
6. 14 A rating
7. 25.3 x 25.3 x 5.0 mm Lidded SiP (System-in-Package)
24.9 x 24.9 x 4.4 mm Open-frame SiP
8. Low profile LGA package
9. Efficiency >99%
10. Connect in Series
Application:
1. Industrial bus supplies
2. Telecom base stations
3. IBA & distributed power
4. COTS systems
Ordering Information:
Specification:
