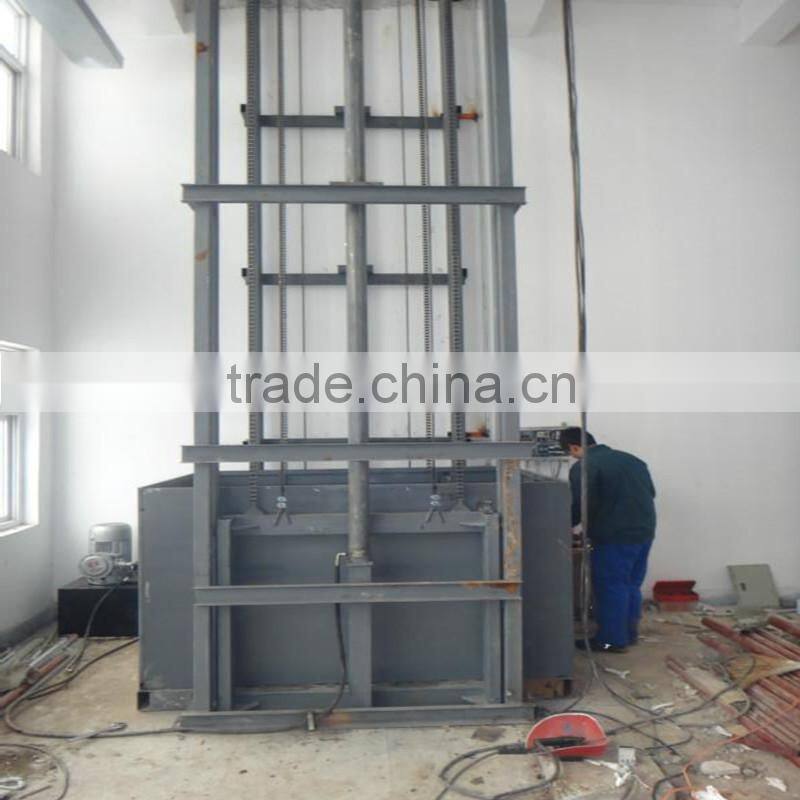

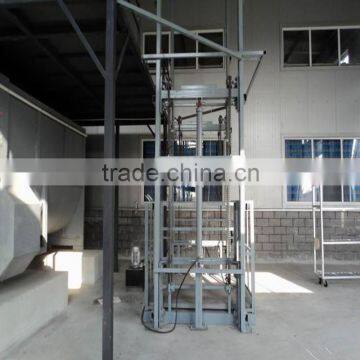

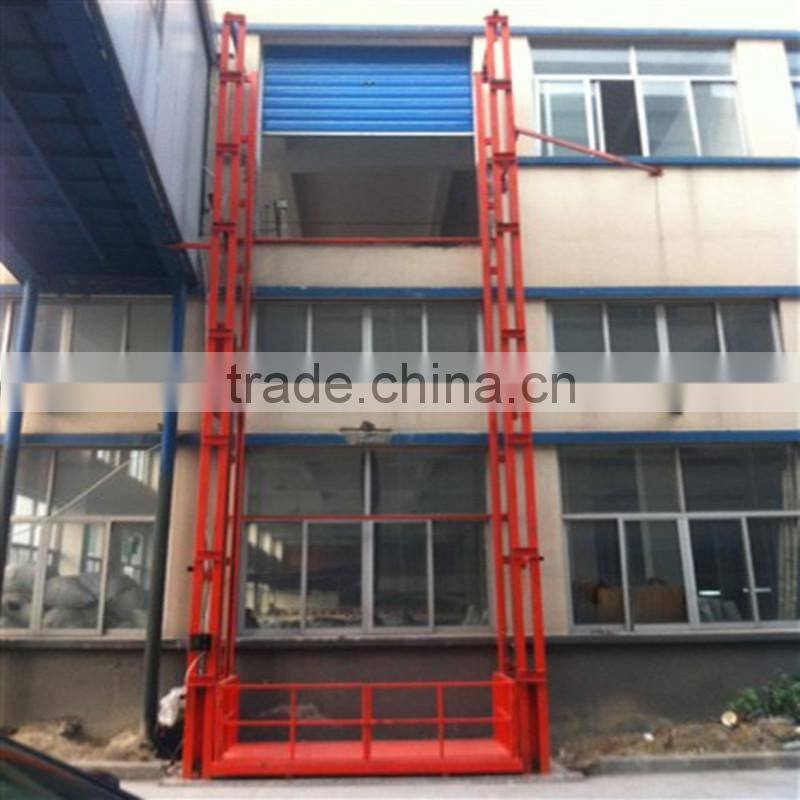

Single Column and Double Column,the Four Pillars GUIDE Hydraulic Lifting Platform
- QINGDAO
- T/T
You May Like
-

                        Aerial Wall Mount Folding Table Guide Hydraulic Elevator
-

                        Guide Hydraulic Lift Platform Warehouse Crane
-

                        NEW Vertical Lift--Lead Rail Hydraulic Lifting Platform CN
-

                        CN Hydraulic Guide Lifting Platform
-

                        Construction Platform Lift ,hydraulic Guide Aerial Work Platform
-

                        Valley Bottom Price 20000 kg / 20 Ton Freight Elevator for Warehouse
Product Details
| Place of Origin | Shandong, China | Brand Name | TURE WIN, True win | |
| Model Number | SJG | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 2.2-5.0kw | |
| Rated Loading Capacity | 500-5000kg | Min. Lifting Height | 1m | |
| Max. Lifting Height | 15m | Table Size | 2500*1500 | |
| Overall Dimensions | 2700*1700*16500 | Weight | 1000kg | |
| Certification | CE&ISO9001:2000 | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

It's a kind of shear fork hydraulic lift platform Products are mainly used for two, three, four layers such as 15 meters between highrise industrial workshop, restaurant, wine shop floor of cargo delivery, have a single column and double column, the four pillars, and other forms, smooth operation, the operation is simple and reliable
there are devices for avoiding falling down, mutuallock between upper and nether gates, there is control button in every layer and the platform, to control the lift in multi-point control.
The product is designed and made in a strong structure, which makes the lift a bigger capacity, more stable performance, better safety and easier operation, which is the idealest substitution of elevator for transfer cargoes. According to different surroundings, customers can select different collocation, which make the performance better
| Model | Rated load (kg) | Raise distance (m) | Initial height (m) | Table size (m) | Power supply (v) | Motor power (kw) | Raise time (s) |
| SJG-0.5T-2.5M | 500 | 2.5 | 0.5 | 2.2*1.5 | 380 | 1.5 | 37.5 |
| SJG-1T-2.5M | 1000 | 2.5 | 0.6 | 2.2*1.5 | 380 | 2.2 | 37.5 |
| SJG-0.5T-3M | 500 | 3 | 0.85 | 2.2*1.5 | 380 | 1.5 | 45 |
| SJG-1T-3M | 1000 | 3 | 0.96 | 2.2*1.5 | 380 | 2.2 | 45 |
| SJG-2T-3M | 2000 | 3 | 1.08 | 2.2*1.5 | 380 | 3 | 45 |
| SJG-3T-3M | 3000 | 3 | 1.1 | 2.2*1.5 | 380 | 3 | 45 |
| SJG-4T-3M | 4000 | 3 | 1.3 | 2.2*1.5 | 380 | 4 | 45 |
| SJG-5T-3M | 5000 | 3 | 1.3 | 2.2*1.5 | 380 | 4 | 45 |
| SJG-0.5T-4M | 500 | 4 | 0.85 | 2.2*1.5 | 380 | 1.5 | 60 |
| SJG-1T-4M | 1000 | 4 | 0.96 | 2.2*1.5 | 380 | 3 | 60 |
| SJG-2T-4M | 2000 | 4 | 1.08 | 2.2*1.5 | 380 | 3 | 60 |
| SJG-3T-4M | 3000 | 4 | 1.1 | 2.2*1.5 | 380 | 4 | 60 |
| SJG-4T-4M | 4000 | 4 | 1.3 | 2.2*1.5 | 380 | 5.5 | 60 |
| SJG-5T-4M | 5000 | 4 | 1.3 | 2.2*1.5 | 380 | 5.5 | 60 |
| SJG-5T-5M | 500 | 5 | 1 | 2.2*1.5 | 380 | 2.2 | 75 |
| SJG-1T-5M | 1000 | 5 | 1.1 | 2.2*1.5 | 380 | 3 | 75 |
| SJG-2T-5M | 2000 | 5 | 1.25 | 2.2*1.5 | 380 | 4 | 75 |
| SJG-3T-5M | 3000 | 5 | 1.5 | 2.2*1.5 | 380 | 5.5 | 75 |
| SJG-4T-5M | 4000 | 5 | 1.5 | 2.2*1.5 | 380 | 5.5 | 75 |
| SJG-5T-5M | 5000 | 5 | 1.5 | 2.2*1.5 | 380 | 7.5 | 75 |


- To the customer request to make efficient delivery platform
2.Product structure strong, big load, steady lifting, easy installation and simple maintenance
3.This product is mainly used in chemical industry, the high temperature and high pressure, power plant, the nuclear industry base and so on explosion-proof enterprises
- High hoisting height, with set oil cylinders, or double oil cylinder, smooth operation, no noise, easy maintenance, long service life
- Power down, emergency stop button manually, convenient, fast and practical
- USES the import custom pump station, achieve ideal delivery requirements, sealers adopt imported components, resolve customer oil pressure is not stable, parts leak, electrical parts are optiona
1.Overflow valve: to prevent ascending motion when the system pressure is too high
2. Emergency manual valve: power failure occurs, can make the capsules emergency position down to the nearest floor to open the door
3. Manual pump: when the system failure occurs, the manual pump can be manipulated with high pressure oil capsules up to the nearest floor location
4. Pipeline rupture valve: when the hydraulic system pipeline rupture capsules stall falls, can automatically cut off oil stopped falling.
5. Tank of the oil temperature protection: when the medium oil tank temperature exceeds the set value, the oil temperature protection device of signal, suspended the use, when the oil temperature drop rear can activate the elevator

Hydraulic elevator guide rail type when used in our daily life should pay attention to maintenance, prolong the life of it. Understand the mechanical equipment maintenance and maintenance problems:
1. The mechanism of the brake should regularly check and adjust the brake block and the clearance between the brake wheel, flexible and reliable. On the friction, there should be no dirt, in case of dirt must wash with gasoline or thinners.
2. The reducer, gearbox, the outer meshing gear and so on various parts of the lubrication and hydraulic oil are conducted in accordance with the requirements of lubrication in the table.
3.Check the connection of the ministries, such as loose should be tightened. The connecting bolts should be in body check elasticity while compression (can adopt the method of rotating arm to cause compression state), all connections slightly shaft must have a split pin, and need to open fully.
4.Regularly check whether the institutions functioning normally, there is no noise, such as troubleshooting, must be ruled out in time.
5.Have met motor overheating to stop in time, troubleshooting and then continue to run the motor bearing lubrication is good.
1.There was a problem at any time consulting, we 24 hours online
2. Our products are your exclusive, production of professional design
3. Quality assurance, you dare to buy I dare to compensate
If you have any interest in our products or any questions, please do not hesitate to contact me. I will help you to know more about our products' detail.
