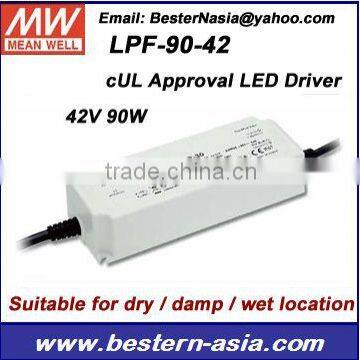

Meanwell 42V Led Driver: LPF-90-42
Negotiable
/ Piece
20 Pieces(Min.Order)
- 300000 Piece / Pieces per Month
- Shenzhen China
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Meanwell | |
| Model Number | LPF-90-42 | Output Power | Other, 90W | |
| Output Type | Single | Input Voltage | 220V | |
| Output Voltage | 42V | Output Frequency | 50-60HZ | |
| Output Current | 2.15A |
Product Description
Specifications
Meanwell 42V Led Driver: LPF-90-421. UL, CE safty approval
2. 91% eff
3. 3 year warranty
4. Waterproof, IP67 level
Meanwell 42V Led Driver: LPF-90-42
Meanwell Warranty: 3 years warranty
Meanwell LED Location appliance:
Suitable for dry / damp / wet locations
LPF-90-42Features:
1. Active PFC Function
2. High efficiency to 91%
3. Universal AC input 90-305Vac
4. Protections: Short Circuit / Overload Current / Over Voltage / Over Temperature
5. Fully encapsulated
6. Fully isolated plastic case
Meanwell LED Applications:
LED lighting
Moving sign applications
LED Strip Power Supply
LPF-90-42 Specification:
| MODEL | LPF-90D-42 | |
| OUTPUT | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION Note.4 | 25.2 ~ 42V | |
| RATED CURRENT | 2.15A | |
| RATED POWER | 90.3W | |
| RIPPLE & NOISE (max.) Note.2 | 200mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±4.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME Note.7 | 2000ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE Note.5 | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.97/115VAC, PF>0.96/230VAC, PF>0.95/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| EFFICIENCY (Typ.) | 91% | |
| AC CURRENT (Typ.) | 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A/230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT Note.4 | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 47 ~ 53V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | 90°C ± 10°C (RTH2) | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70°C (Refer to "Derating Curve") |
| SAFETY & EMC | SAFETY STANDARDS | UL8750, EN61347-1, EN61347-2-13 independent, J61347-1, J61347-2-13, IP67 approved ; Design refer to UL60950-1, TUV EN60950-1 |
| OTHERS | MTBF | 301.6Khrs min. MIL-HDBK-217F (25°C ) |
| DIMENSION | 161*61*36mm (L*W*H) | |
| PACKING | 0.7Kg;20pcs/15Kg/0.73CUFT | |
36V smps led power supply Order Information:
Meanwell 42V Led Driver: LPF-90-42
Meanwell LED, Meanwell, LPF-90-42 Meanwell 42V Led Driver: LPF-90-42
