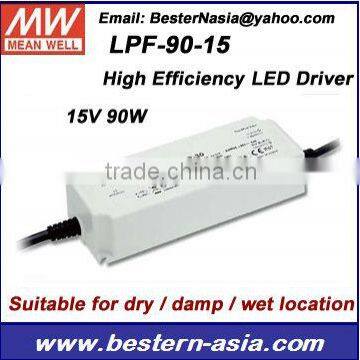

Meanwell 75W LED Power Supply LPF-90-15

FOB Price

Negotiable / Piece

20 Pieces(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Port Shenzhen China
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Meanwell
Model Number	LPF-90-15	Output Power	Other, 90W
Output Type	Single	Input Voltage	220V
Output Voltage	15V	Output Frequency	50-60HZ
Output Current	5A

Product Description

Specifications

Meanwell 75W LED Power Supply LPF-90-15
1. Universal AC input
2. High Eff. 91%
3. Fully Isolated plastic case
4. IP67 waterp

Meanwell 75W LED Power Supply LPF-90-15

Meanwell Power Supply Features:

1. Universal AC input 90-305Vac
2. Active PFC Function
3. High efficiency to 91%

4. Protections: Short Circuit / Overload Current / Over Voltage / Over Temperature

5. Fully isolated plastic case
6. Fully encapsulated

7. Waterproof IP67 level

8. Comliance to worldwide safty regulations for lighting

LPF-90-15 Applications:

LED lighting

Moving sign applications

Meanwell LPF-90-15 Location appliance:

Suitable for dry / damp / wet locations

Warranty: 3 years warranty

LPF-90-15 Specificaation:

MODEL		LPF-90-15
OUTPUT	DC VOLTAGE	15V
	CONSTANT CURRENT REGION Note.4	9 ~15V
	RATED CURRENT	5A
	RATED POWER	75W
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE TOLERANCE Note.3	±4.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.5%
	SETUP, RISE TIME Note.6	2000ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC at full load
	HOLD UP TIME (Typ.)	16ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.5	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.97/115VAC, PF>0.96/230VAC, PF>0.95/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)	89%
	AC CURRENT	0.95A / 115VAC 0.5A / 230VAC 0.4A /277VAC
	INRUSH CURRENT (Typ.)	COLD START 55A(twidth=435£gs measured at 50% Ipeak) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT Note.4	95 ~ 108%
	OVER CURRENT Note.4	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Null
	OVER VOLTAGE	18 ~ 21V
	OVER VOLTAGE	Protection type : Shut down and latch off o/p voltage, re-power on to recover
	OVER TEMPERATURE	90°C ± 10 °C (RTH2)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-40 ~ +70°C (Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C , 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C (0 ~ 50 °C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP67, J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH
	EMC EMISSION	Compliance to EN55015; EN61000-3-2 Class C ( 60% load) ; EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level(surge 2KV), criteria A
OTHERS	MTBF	301.6Khrs min. MIL-HDBK-217F (25°C )
	DIMENSION	161.56136mm (LWH)
	PACKING	0.7Kg;20pcs/15Kg/ 0.73CUFT
NOTE	75W LED Power Supply

Order Information:

Meanwell 75W LED Power Supply LPF-90-15

LPF-90-15, Meanwell power supply, 75W LED Power Supply
