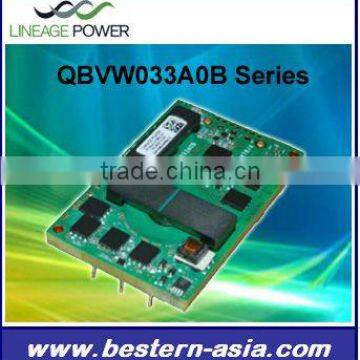

Lineage 12V 33A Power Module DC-DC Converter: QBVW033A0B641-HZ

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port HK

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	United States	Brand Name	Lineage
Model Number	QBVW033A0B641-HZ	Output Power	301 - 400W
Output Type	Single	Input Voltage	Other, 48Vdc
Output Voltage	12V	Output Frequency	50/60HZ
Output Current	33A

Product Description

Specifications

Lineage 12V 33A Power Module DC-DC Converter: QBVW033A0B641-HZ
1.Efficiency>95.5% at 12Vdc
2.Industry standard:1/4 Brick

Lineage 12V 33A Power Module DC-DC Converter: QBVW033A0B641-HZ

Features:
1.Efficiency>95.5% at 12Vdc
2.Industry standard:1/4 Brick
3. UL, CSA, VDE, CE Listed
4. Industry standard,Quarter brick: 58.4 mm x 36.8 mm x 11.7 mm
5. Output over current/voltage protection

The QBVW033A0B series of dc-dc converters are a new generation of fully regulated DC/DC power modules
designed to support 12Vdc intermediate bus applications where multiple low voltages are subsequently generated
using point of load (POL) converters, as well as other application requiring a tightly regulated output voltage.

This leads to lower power dissipations such that for many applications a heat sink is not required. Standard features include on/off control, output overcurrent and over voltage protection, over temperature protection, input under and over voltage lockout.

Application:

1. Intermediate bus voltage applications
2. Servers and storage applications
3. Distributed power architectures
4. Networking equipment including Power over Ethernet (PoE)
5. Fan assemblies and other systems requiring a tightly regulated output voltage

Electrical Specification:

Ordering Information:

Product codes	Input Voltage	Output Voltage	Output Current	Comcode
QBVW033A0B41Z	48V (36-75Vdc)	12V	33A	CC109165247
QBVW033A0B541Z	48V (36-75Vdc)	12V	33A	CC109165263
QBVW033A0B641Z	48V (36-75Vdc)	12V	33A	CC109165692
QBVW033A0B841Z	48V (36-75Vdc)	12V	33A	CC109169347
QBVW033A0B1-HZ	48V (36-75Vdc)	12V	33A	CC109168126
QBVW033A0B41-HZ	48V (36-75Vdc)	12V	33A	CC109165255
QBVW033A0B61-HZ	48V (36-75Vdc)	12V	33A	CC109167813
QBVW033A0B641-HZ	48V (36-75Vdc)	12V	33A	CC109165701
QBVW033A0B941-HZ	48V (36-75Vdc)	12V	33A	CC109170627
QBVW033A0B41-PZ	48V (36-75Vdc)	12V	33A	CC109169314
QBVW033A0B541-PZ	48V (36-75Vdc)	12V	33A	CC109167086
QBVW033A0B841-PZ	48V (36-75Vdc)	12V	33A	CC109169355
QBVW033A0B1-PHZ	48V (36-75Vdc)	12V	33A	CC109167094
QBVW033A0B41-PHZ	48V (36-75Vdc)	12V	33A	CC109167103
QBVW033A0B61-PHZ	48V (36-75Vdc)	12V	33A	CC109167111
QBVW033A0B641-PHZ	48V (36-75Vdc)	12V	33A	CC109167540
