Specifications

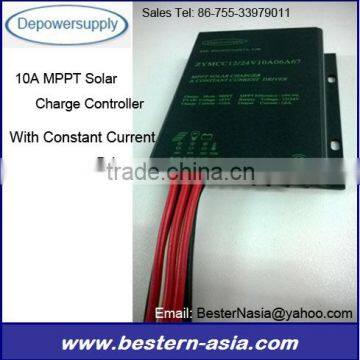

10A MPPT Solar Charger Controller:  ZYMCC12/24V10A06A67

With constant current Driver

MPPT Charger Features:

1. High-Efficiency MPPT function (Efficiency≥99.9%)

2. Integration of constant Current driver which can drive 100W (200W/24V) LED.

3. LED Driver start to drive LED with different current in different time phase.

4. Battery capacity management function

When battery capacity discharge to the set value, LED driver will reduce driving current. In order to delay LED lighting time. In addition, it will make battery work in the Shallow discharge state.

5. Charge function

It is three phase time charge battery, which contains MPPT charge, constant voltage charge and float charge.

6. Flexible parameter set by Wireless infrared communication.

7. Efficiency of charger and constant current driver is up to 96% by Synchronous rectification.

8. Protect function

Battery reverse connection protection;Battery under voltage protection;The solar panel reverse connection protection;To prevent the battery discharge to the solar panel;The LED output short circuit and open circuit protection.

9. Ingress protection: IP67.

10. Controller is no Aluminum electrolytic capacitor Design, extra long life extending to 25years.

Solar Charger Controller Application Chart:

10A MPPT controller Application Environments:

(1) Thecontrollersupports monocrystalline silicon, polycrystalline silicon and thin film solar panels.

(2) ThecontrollersupportsLead acid battery.

(3) Thecontrollersupports LED light.

Specification:

Mechanical parameters:

Ordering Code:

10A MPPT Solar Charger Controller with constant current Driver: ZYMCC12/24V10A06A67
