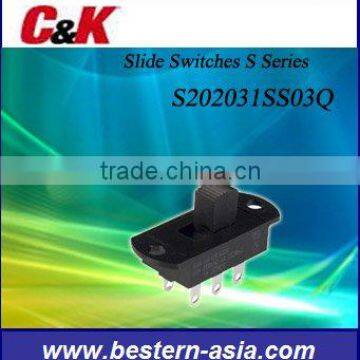

C&K S202031SS03Q Slide Switches(S Series)
- Hongkong
You May Like
Product Details
Place of Origin | United States | Brand Name | C&K | |
Model Number | S202031SS03Q | Max. Current | 6A | |
Max. Voltage | 125V | Mechanical Life | 10000 |
Product Description
Specifications
1. Original Switch S202031SS03Q x 10pcs in stock2. PC and Snap-in panel mounting
3. Reversing option
4. Enclosed housing
C&K S Series Slide Switches
Features/Benefits
• 6 to 15 AMPS
• Enclosed housing
• PC and Snap-in panel mounting
• Reversing option
• RoHS compliant
Typical Applications
• Portable tools
• Small appliances
• Floor care products
Specifications
1. Contact Rating: Q contact material (S1XX, S2XX Models):6 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @125 V DC (UL/CSA). (S5XX, S6XX Models): 12 AMPS @125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (UL/CSA).(S7XX, S8XX Models): 15 AMPS @ 125 V AC; 6AMPS @
250 V AC (UL/CSA). See page J-31 for additional ratings.
2. Electrical Life: 10,000 make-and-break cycles at full load.
3. Contact Resistance: Below 10 m ½ typ. initial@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
4. Insulation Resistance: 109 ½ min.
5. Dielectric Strength: 1,000 Vrms min. @ sea level.
6. Operating Temperature: -30ºC to +65ºC
7. Stotage Temperature: -30ºC to +85ºC
