Home > Products > Algodue Italy > 6A Three Phase 4 Wires Energy Counter Algodue UEC1P5-4X
6A Three Phase 4 Wires Energy Counter Algodue UEC1P5-4X
- Hongkong
- Credit Card
You May Like
Product Details
| Place of Origin | Italy | Brand Name | Algodue | |
| Model Number | UEC1P5-4X | Measuring Current Range | Maximum value Imax: 6 A | |
| Measuring Voltage Range | 3x400V 50Hz 3 wires | Accuracy Class | Nominal measurement voltage ±20% | |
| Operating Temperature | -25°C to +55°C |
Product Description
6A three phase 4 wires Energy Counter Algodue UEC1P5-4X
Three phase 4 wires UEC1P5-4X Features:
2/ Programmable CT ratio
3/ Fully bi-directional four quadrants measurements for all energies and powers
4/ For 3 or 4 wire networks with balanced or unbalanced load
5/ Class B according to EN50470-1-3
6/ Tariff input
7/ 2 S0 outputs for energy pulse emission
8/ LCD display with 8 main digits
9/ Optical port for communication
10/ Available with MID certification
Three phase 4 wires Algodue UEC1P5-4X General Features:
4 DIN modules energy counter for the energy measurement in industrial and civilian application, available with MID certification
suitable for billing.
Combined with different external modules, the counter can communicate with other systems. COM modules are available for
the most common field protocols.

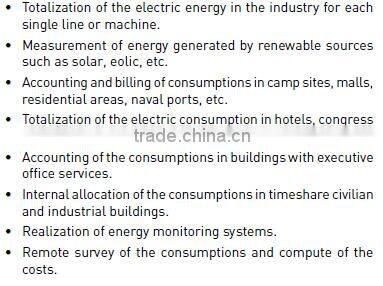

Algodue three phase 4 wires Energy Counter Application:

Algodue UEC1P5-4X Technical Features:

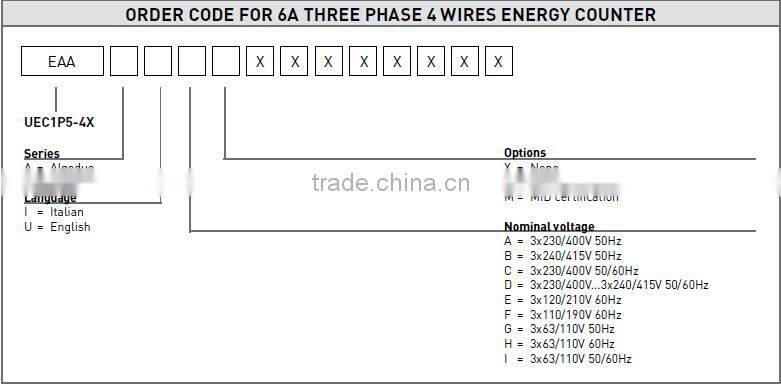

Ordering Information:
6A three phase 4 wires Energy Counter Algodue UEC1P5-4X
