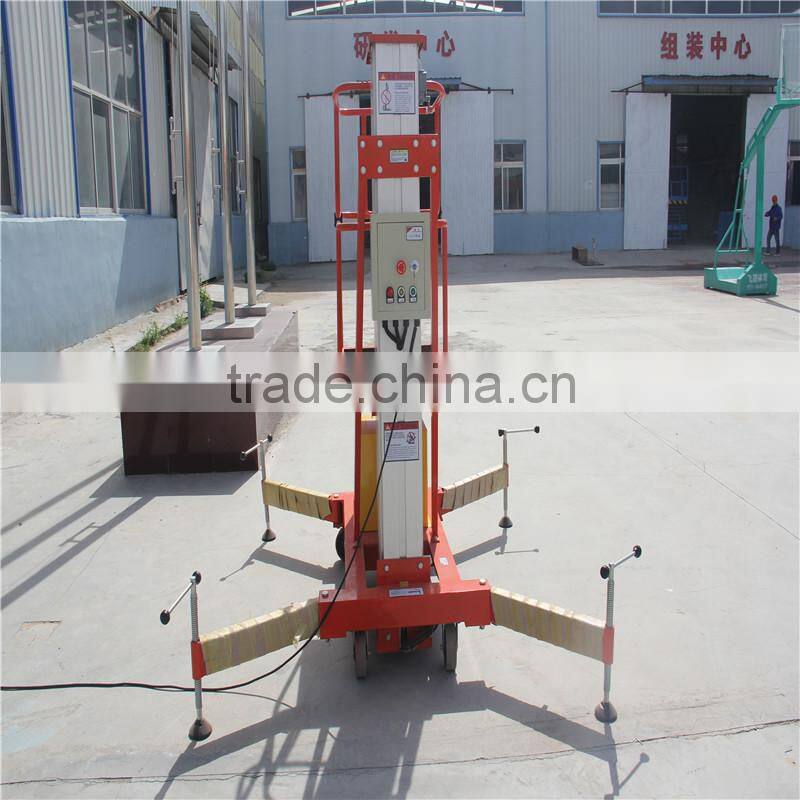

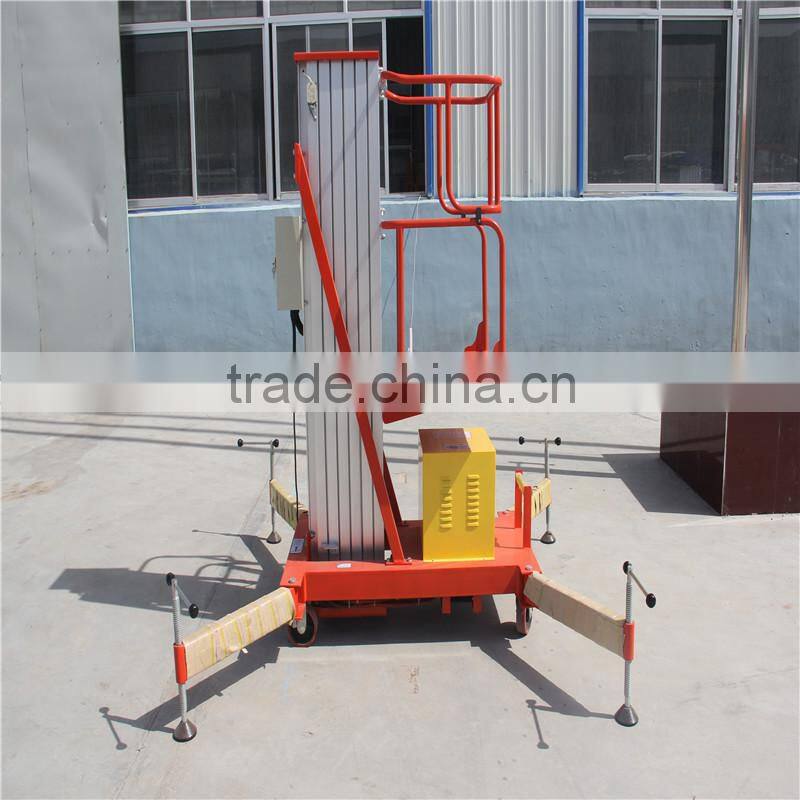

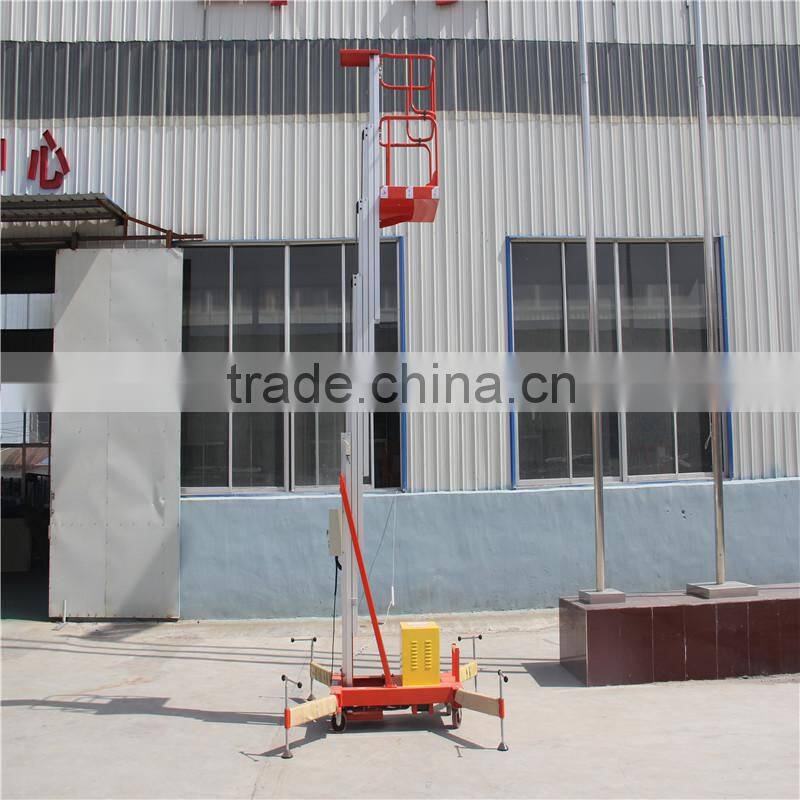

Vertical 2m Handicap Ramps for Wheelchair Lift
- QINGDAO
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Truewin | |
| Model Number | MAL | Lift Mechanism | Telescoping Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 1.1kw | |
| Rated Loading Capacity | 100-200kg | Min. Lifting Height | 1.5m | |
| Max. Lifting Height | 10m | Table Size | 550*550mm | |
| Overall Dimensions | 1.3*0.82*1.98 | Weight | 200KG&optical | |
| Certification | CE&ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Push Around Aluminum Personnel Lifts
DESCRIPTION
Able to go through standard door sizes, compact push around vertical mast booms are equipped with slide out outriggers designed for quick setup and stability. Perfect for a variety applications such as maintenance work in offices, commercial buildings and factories.
SUITABLE FOR
Facilities Maintenance, Electricians, All maintenance work, Factory fit outs in tight areas. Ideal warehouse use between racking and narrow aisle areas.Hospitals, Schools, Offices for suspended ceiling maintenance
Level adjustment before lift working:
Stabilizer for precise leveling
Specifications:
Model | MAL-6 | MAL-8 | MAL-10 | |||
Max. Platform Height | mm | 6000 | 8000 | 10000 | ||
Max. Machine Height | 7350 | 9460 | 11300 | |||
Min. Platform Height | 580 | |||||
Ground Clearance | 60 | |||||
Lift Rated Capacity | kg | 150 | 125 | |||
Platform Size | mm | 630*650 | ||||
Outspread Size | 2030*1840 | |||||
Electrical Source | AC | v | 220-240 | |||
DC | 12 | |||||
Aneroid Battery | v/Ah | 2*12/75 | ||||
Charger | v/A | 12/15 | ||||
Lifting Motor | AC | v/kw | 220/0.75-1.5 | |||
DC | 12/2.5 | |||||
Overall Length | mm | 1420 | ||||
Overall Width | 840 | |||||
Overall Height | 1920 | 2980 | ||||
Overall | AC | kg | 410 | 450 | 490 |
|
DC | 450 | 480 | 525 | |||
