Home > Products > Aluminium Aerial Lift > Shandong True Win large operation range Aluminum Alloy Lift
Shandong True Win large operation range Aluminum Alloy Lift
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
high strength outside or indoor CE approved Aluminum Alloy Lift
-
high strength outside or indoor efficiency Aluminum Alloy Lift
-
high strength outside or indoor CE approved Aluminum Alloy Lift
-
light weight large operation range efficiency Aluminum Alloy Lift
-
6m Max lift Mobile single vertical mast one person lift
-
Single mast 8m lifting height/vertical aluminium lift platform/portable lift
Product Details
| Place of Origin | Shandong, China | Brand Name | True Win | |
| Model Number | QYLH | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 1.5kw | |
| Rated Loading Capacity | 200kg | Min. Lifting Height | 0.5m | |
| Max. Lifting Height | 14m | Table Size | 1500*600mm | |
| Overall Dimensions | 1450*890*1980mm--1750*950*2300mm | Weight | 550kg | |
| Certification | CE ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

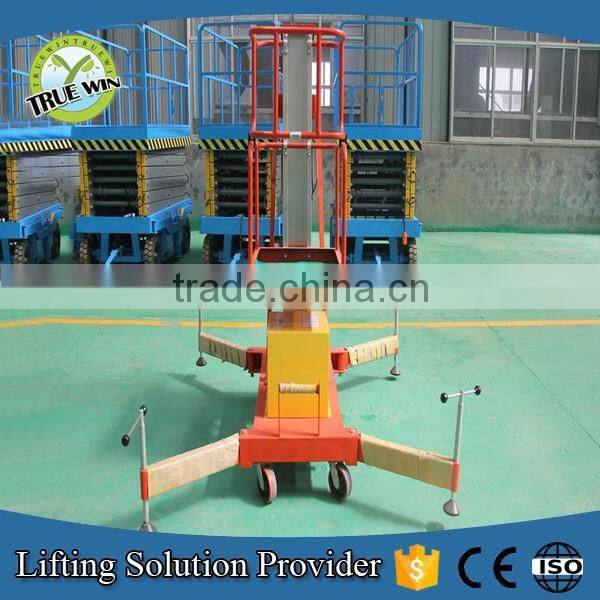

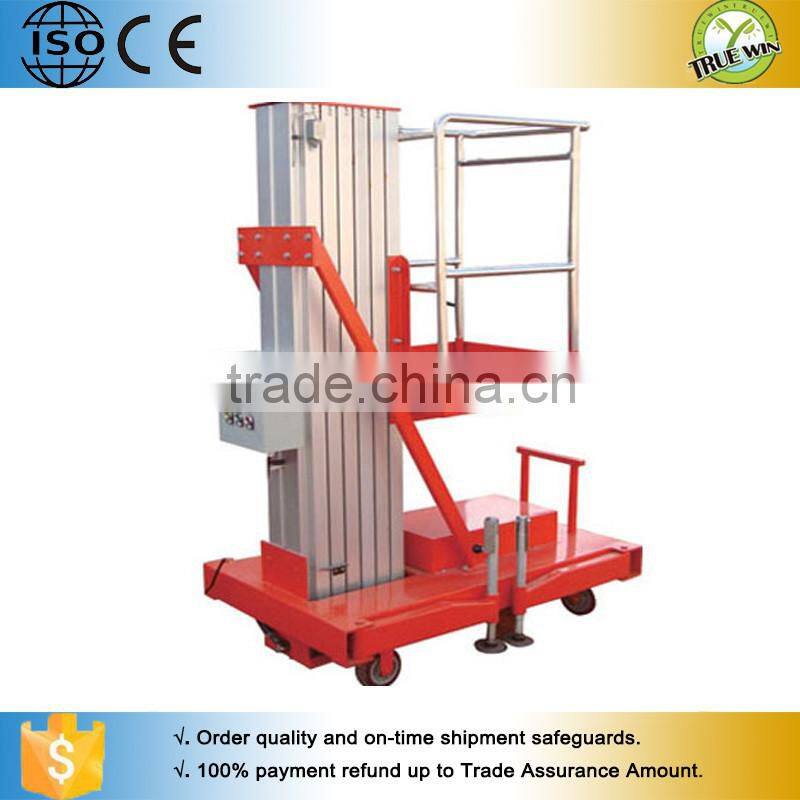

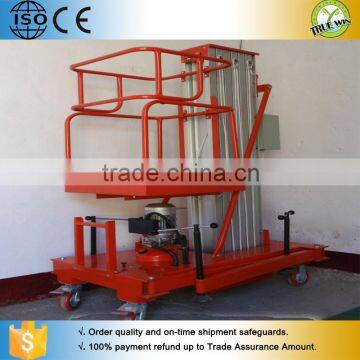

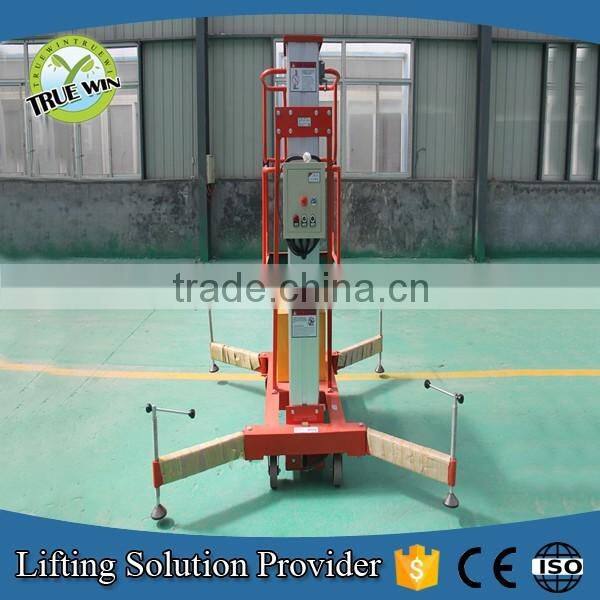

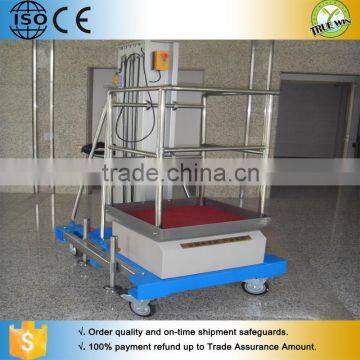

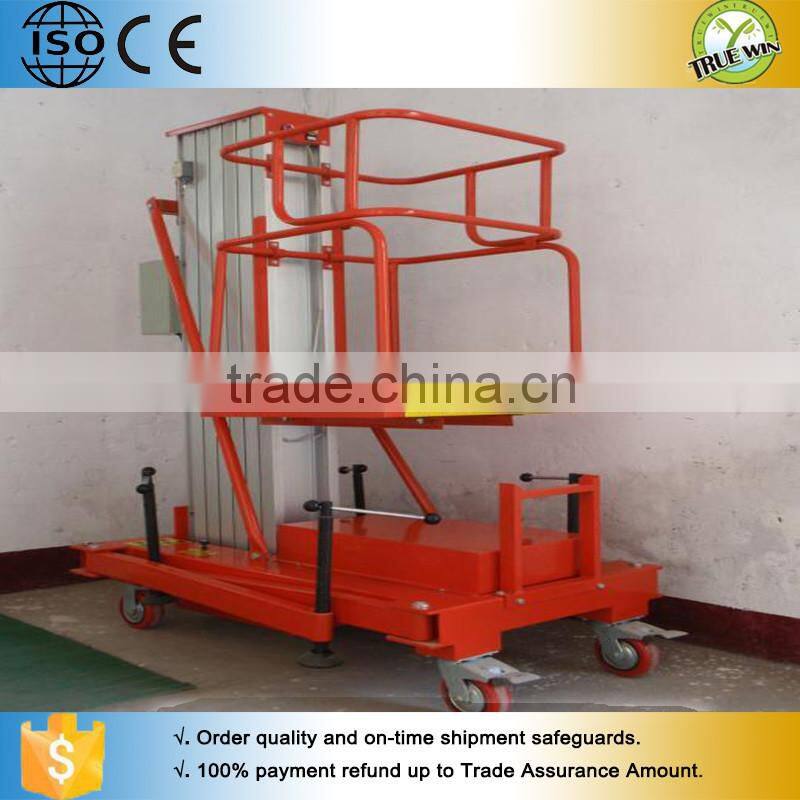

Aluminum alloy hydraulic lifting platform is built with high strongth aluminum alloy materials.It is a classical design vertical man lift for light duty aerial working,with the flexible pyramid design,barycenter is kept to bottom of the lift,the lift is steady and stable.
The safety protection device and imported pump,increases the service life and safety Assurance.
Type | Lift height | Outline size(mm) | Table size(mm) | Load capacity(kg) | Oil cylinder | Motor (kw) |
Single mast | 6m | 1300*800*1620 | 600*600 | 125 | 50*1 | 0.75 |
8m | 1375*830*1980 | 600*600 | 125 | 50*1 | 0.75 | |
10m | 1400*900*1980 | 600*600 | 100 | 50*1 | 0.75 | |
Dual mast | 6m | 1450*890*1980 | 1200*540 | 200 | 50*2 | 1.5 |
8m | 1450*890*1980 | 1200*600 | 200 | 50*2 | 1.5 | |
10m | 1550*890*1980 | 1400*600 | 200 | 50*2 | 1.5 | |
12m | 1700*920*1980 | 1500*600 | 200 | 50*2 | 1.5 | |
14m | 1750*950*2300 | 1550*600 | 200 | 60*2 | 1.5 | |
Three mast | 12m | 1300*2000*1980 | 1450*540 | 200 | 60*3 | 2.2 |
14m | 1200*1950*2350 | 1600*880 | 200 | 60*3 | 2.2 | |
16m | 1200*2000*2650 | 1780*800 | 200 | 60*3 | 2.2 | |
Four mast/six mast | 16m | 2000*1000*2650 | 1700*800 | 200 | 60*4 | 2.2 |
18m | 2100*1000*2800 | 1700*500 | 200 | 60*4 | 2.2 | |
20m | 2400*1300*2950 | 1700*500 | 200 | 60*4 | 2.2 |
The most spacious platforms for light duty aerial working.
The platforms are packed in Plywood case.We will arrange the shipment within 20 days after signing the contract.
1.The safety protection device and imported pump,increases the service life and safety Assurance.
2.One year warranty for whole machines.
4.Free training to end-users.
5.24 hours online service and support.
Welcome to contact us.
