Widely Used Efficiency Aluminum Alloy Lift

FOB Price

US$ 1,800 - 4,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	True Win
Model Number	QYLH	Lift Mechanism	Lift Chain
Lift Drive / Actuation	Hydraulic	Power	1.5kw
Rated Loading Capacity	200kg	Min. Lifting Height	0.5m
Max. Lifting Height	14m	Table Size	1500*600mm
Overall Dimensions	14508901980mm--17509502300mm	Weight	550kg
Certification	CE ISO9001	Warranty	12 Months
After-sales Service Provided	Overseas third-party support available

Product Description

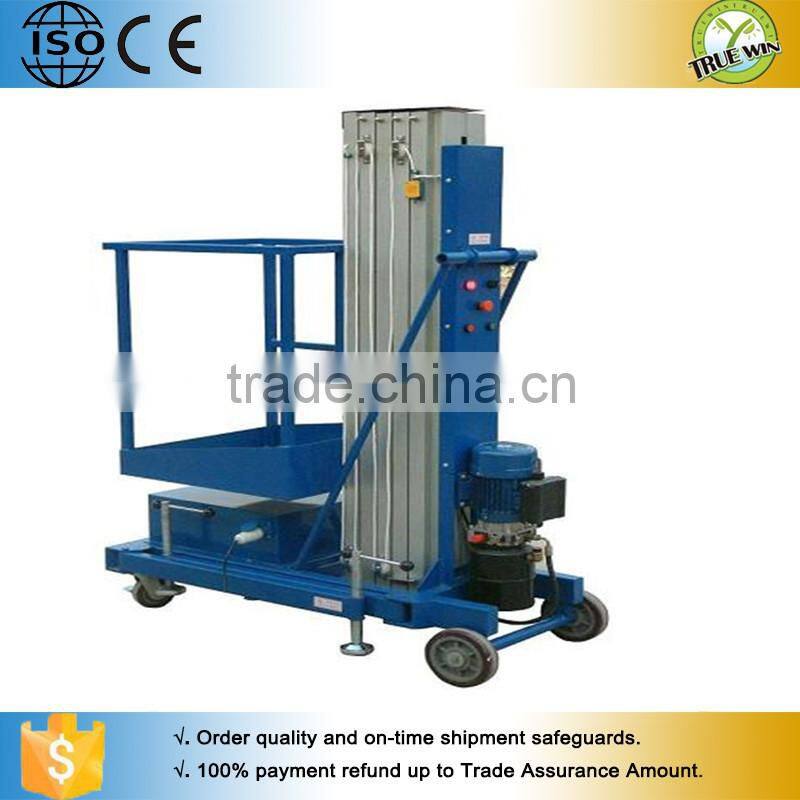

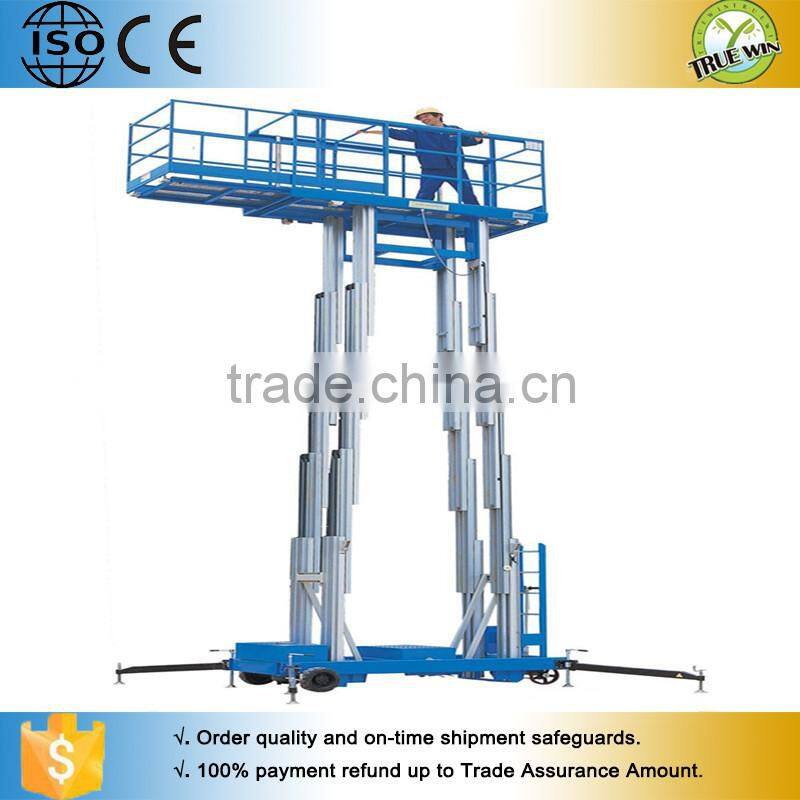

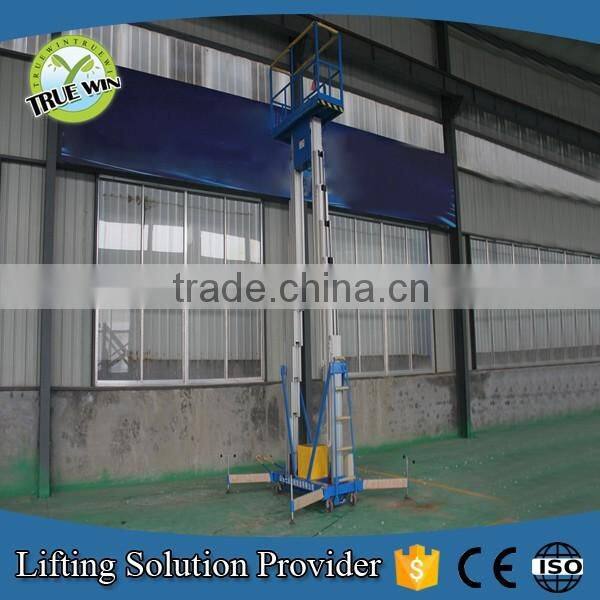

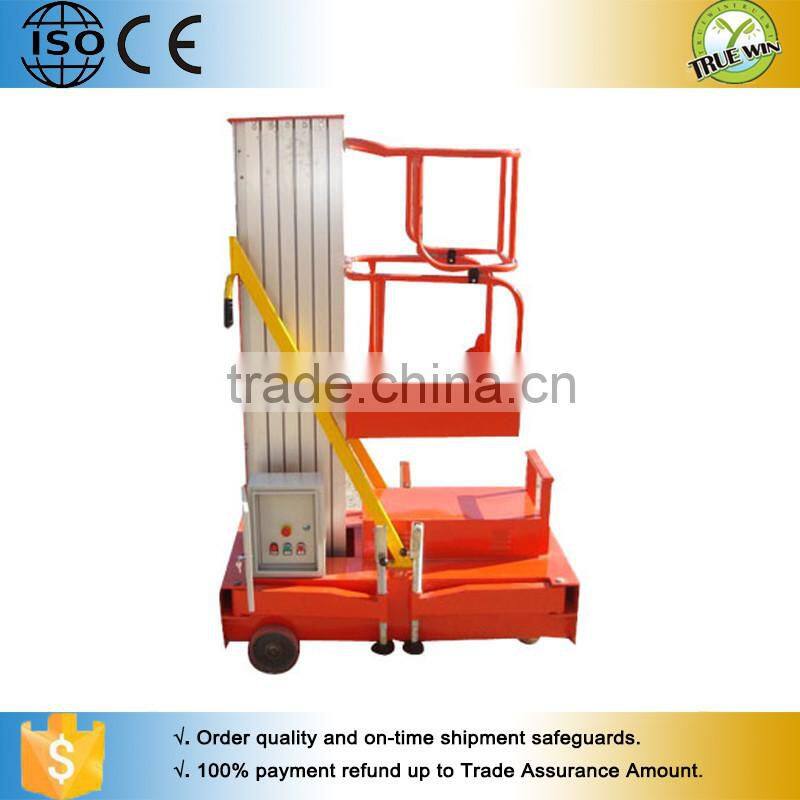

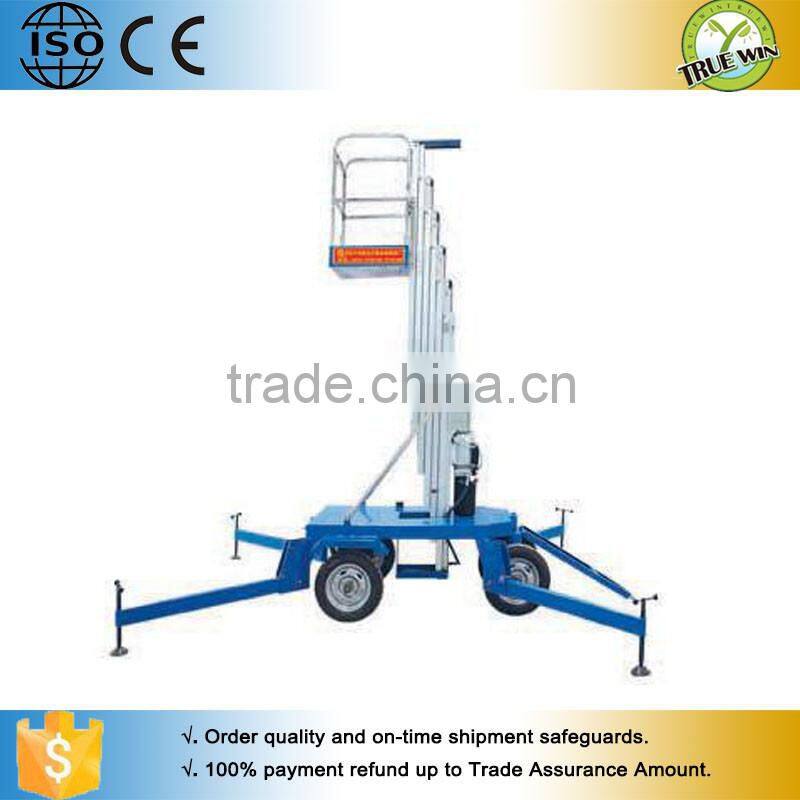

Aluminum alloy hydraulic lifting platform is built with high strongth aluminum alloy materials.It is a classical design vertical man lift for light duty aerial working,with the flexible pyramid design,barycenter is kept to bottom of the lift,the lift is steady and stable.

The safety protection device and imported pump,increases the service life and safety Assurance.

Type	Lift height	Outline size(mm)	Table size(mm)	Load capacity(kg)	Oil cylinder	Motor (kw)
Single mast	6m	13008001620	600*600	125	50*1	0.75
	8m	13758301980	600*600	125	50*1	0.75
	10m	14009001980	600*600	100	50*1	0.75
Dual mast	6m	14508901980	1200*540	200	50*2	1.5
	8m	14508901980	1200*600	200	50*2	1.5
	10m	15508901980	1400*600	200	50*2	1.5
	12m	17009201980	1500*600	200	50*2	1.5
	14m	17509502300	1550*600	200	60*2	1.5
Three mast	12m	130020001980	1450*540	200	60*3	2.2
	14m	120019502350	1600*880	200	60*3	2.2
	16m	120020002650	1780*800	200	60*3	2.2
Four mast/six mast	16m	200010002650	1700*800	200	60*4	2.2
	18m	210010002800	1700*500	200	60*4	2.2
	20m	240013002950	1700*500	200	60*4	2.2

Packaging & Shipping

The platforms are packed in Plywood case.We will arrange the shipment within 20 days after signing the contract.

Our Services

1.The safety protection device and imported pump,increases the service life and safety Assurance.

2.One year warranty for whole machines.

4.Free training to end-users.

5.24 hours online service and support.

Welcome to contact us.
