Home > Products > Aluminium Aerial Lift > 10m Aluminum Work Platform Aluminum Alloy Lifting Platform

10m Aluminum Work Platform Aluminum Alloy Lifting Platform

FOB Price

US$ 2,154 - 5,861 / Set

1 Set(Min. Order)

Port QING DAO
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	TRUE WIN
Model Number	SJL0.1-0.2	Lift Mechanism	Articulated Lift
Lift Drive / Actuation	Hydraulic	Power	1.1kw
Rated Loading Capacity	180kg	Min. Lifting Height	1.4m
Max. Lifting Height	8M	Table Size	550*550mm
Overall Dimensions	15008702300mm	Weight	400kg
Certification	CE / ISO 9001	Warranty	1 YEAR
After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

Anti skid

Emergency decline valve

overload protection

Low noise

safety and reliability

Product Description

Control System

1.Electric control:

A.manual button box, which may be placed on the platform for the convenience of operation.

B.electric control box, which is supported with emergency stop button for prevention of any accident.

2.Manual control: It can install manual lowering valve, in case of power cut off suddenly.

Single mast

Aluminum Alloy Hydraulic Platform
Model	Lifting height(m)	Lifting weight(kg)	Platform size(mm)	Overall dimension (mm)	Power supply(kw)	Total weight(kg)
							SJL0.10-4	4	100	550*550	12007501980	1.1	200
SJL0.10-6	6	100	550*550	12007501980	1.1	230
SJL0.10-8	8	100	550*550	12508301980	1.1	280
SJL0.10-9.6	9.6	100	550*550	13508301980	1.1	300
SJL0.10-10	10	100	550*550	13508301980	1.1	320

Double Track Aluminum Alloy Hydraulic Platform
Model	Lifting height(m)	Lifting weight(kg)	Platform size(mm)	Overall dimension(mm)	Power supply(kw)	Total weight(kg)
Model	Lifting height(m)	Lifting weight(kg)	Platform size(mm)	Overall dimension(mm)	Power supply(kw)	Total weight(kg)	SJL0.2-6	6	200	1200*600	13508701980	1.5	450
SJL0.2-8	8	200	1250*600	14508701980	1.5	550
SJL0.2-10	10	200	1400*600	16008701980	1.5	650
SJL0.2-12	12	200	1500*600	17009201980	1.5	700
SJL0.2-14	14	200	1550*650	190012002400	1.5	660
SJL0.2-16	16	200	1550*650	190012002700	2.2	700

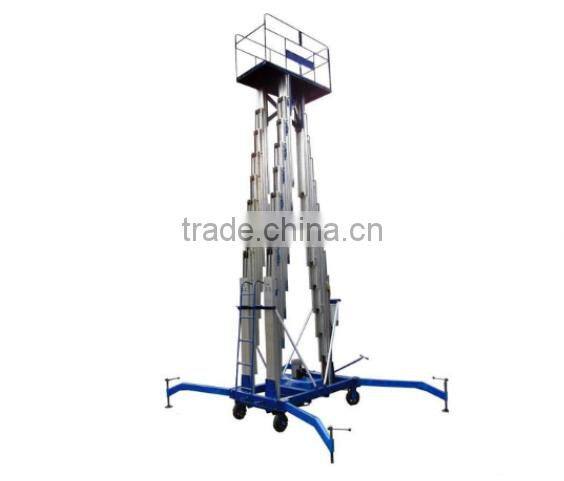

Three mast

Model	Lifting height (m)	capacity (kg)	Table size (mm)	Total dimension (L * W * H) mm	Mating Power (kw)	Net weight (kg)
SJL0.2-12	12	200	1550 * 750	188012001980	2.2	900
SJL0.2-14	14	200	1550 * 750	190014002600	2.2	1000
SJL0.2-16	16	200	1550 * 750	190014002700	2.2	1250
SJL0.2-18	18	200	1700 * 750	210014002800	2.2	1500
Tiltable three mast	16m/310012002000(put down) 18m/320012002200(put down)

Advantages

1.It is the best and safest partner in maintaining machines and tools, painting and decoration, changing lights, electric appliances and cleaning.

2.it can be operated up and down.

3.It is equipped with security rope and safety protection devices.

4.It can be in and out of the elevators conveniently when equipped with belt control switch or remote control switch systems.

5.Compact structure, small size, can enter narrow and small area.

Our Services

1. All the machines will be full tested before shipment

2. The total machine guarantee is 12 moths

3. 24 Hours technical support, email, telephone or video online

4. User-friendly English manual for machine using and maintaining

We are a professional manufacturer of kinds of Hydraulic Lift in China. Welcome to visit our website for more details
