Home > Products > Oscilloscope > Digital Storage Oscilloscope, 25MHz Bandwidth, Single Channel, 200MS/s Sample Rate, USB Communication, UTD1025CL

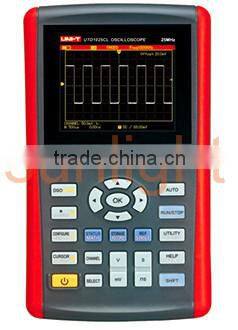

Digital Storage Oscilloscope, 25MHz Bandwidth, Single Channel, 200MS/s Sample Rate, USB Communication, UTD1025CL

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai Port
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	UNI-T
Model Number	UTD1025CL

Product Description

Features:

1, Fully Auto Scale; Vertical Scale and Timebase automatically adjusted with the signal and without any manual interference;
2, Unique and powerful Auto Setup, quick and accurate to set up for signals with any DC component;
3, Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div;
4, Isolated USB for much safer communication;
5, White and black display for your option, perfect for use outdoors with strong light;
6, Intelligent local or network software update;
7, More than 8hours of continuous battery operation.

Specifications:

Specification	UTD1025CL
Channels	1
Bandwidth	25MHz
Sample Rate	200MS/s
Rise Time	≤14ns
Memory Depth	12kpts
Vertical Sensitivity	5mV/div~20V/div
Timebase Range	10ns/div~50s/div
Storage	Bitmap, Setup, Waveform
Trigger Modes	Edge, Pulse, Video, Slope
Interface	Mini USB
Multimeter Specifications	Range	Best Accuracy
DC Voltage (V)	400.0mV/ 4.000V/ 40.00V/ 400.0V	±(1%+5)
AC Voltage (V)	400.0mV/ 4.000V/ 40.00V/ 400.0V	±(1.2%+5)
DC Current (A) (External Convertor)	400.0μA/ 4000μA	±(1.2%+5)
	40.0mA/ 400mA	±(1%+5)
	10A	±(1.5%+5)
AC Current (A) (45Hz~400Hz) (External Convertor)	400.0μA/ 4000μA	±(2%+5)
	40.0mA/ 400mA	±(1.5%+5)
	10A	±(2.5%+5)
Resistance (Ω)	400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ	±(1.2%+5)
	40.00MΩ	±(1.5%+5)
Capacitance (F)	51.20nF/512.0nF/5.120μF/51.20μF/100μF	±(3%+5)
Display Count	4000	Yes
General Characteristic
Power	Lithium Battery: 7.4V 3600mAh; DC Adapter: 100~240V 50/60Hz input, 9V 4A Output
LCD Size	3.5 Inches 64K Color TFT LCD, 320×240
Product Color	Red and Grey
Product Net Weight	0.9 Kg
Product Size (W×H×D)	199mm × 118mm × 49mm
Standard Accessories	DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable,PC Software CD
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	6 PCs
Standard Carton Measurement (L×W×H)	515mm x 295mm x 315mm
Standard Carton Cross Weight	10.8 Kg

Contrast:

Specification	UTD1025CL	UTD1050CL
Channels	1
Bandwidth	25MHz	50MHz
Sample Rate	200MS/s
Rise Time	≤14ns	≤7ns
Memory Depth	12kpts
Vertical Sensitivity	5mV/div~20V/div
Timebase Range	10ns/div~50s/div	5ns/div~50s/div
Storage	Bitmap, Setup, Waveform
Trigger Modes	Edge, Pulse, Video, Slope
Interface	Mini USB
Multimeter Specifications	Range		Best Accuracy
DC Voltage (V)	400.0mV/ 4.000V/ 40.00V/ 400.0V		±(1%+5)
AC Voltage (V)	400.0mV/ 4.000V/ 40.00V/ 400.0V		±(1.2%+5)
DC Current (A) (External Convertor)	400.0μA/ 4000μA		±(1.2%+5)
	40.0mA/ 400mA		±(1%+5)
	10A		±(1.5%+5)
AC Current (A) (45Hz~400Hz) (External Convertor)	400.0μA/ 4000μA		±(2%+5)
	40.0mA/ 400mA		±(1.5%+5)
	10A		±(2.5%+5)
Resistance (Ω)	400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ		±(1.2%+5)
	40.00MΩ		±(1.5%+5)
Capacitance (F)	51.20nF/512.0nF/5.120μF/51.20μF/100μF		±(3%+5)
Display Count	4000		Yes
General Characteristic
Power	Lithium Battery: 7.4V 3600mAh; DC Adapter: 100~240V 50/60Hz input, 9V 4A Output
LCD Size	3.5 Inches 64K Color TFT LCD, 320×240
Product Color	Red and Grey
Product Net Weight	0.9 Kg
Product Size (W×H×D)	199mm × 118mm × 49mm
Standard Accessories	DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable,PC Software CD
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	6 PCs
Standard Carton Measurement (L×W×H)	515mm x 295mm x 315mm
Standard Carton Cross Weight	10.8 Kg

Accessories:

DC Adaptor,
Test Lead, Probe×1 (1×,10× switchable),
10A Current Divider,
Power Cord,
USB Cable,

PC Software CD
