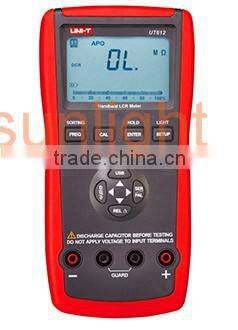

Digital LCR Tester, Inductance/Capacitance/Resistance/Frequency Multi-purpose Meter USB UT612

Specification

Range

Best Accuracy

Model

UT612

Inductance (H)

20uH~2000H

±(0.5%+5)

Capacitance (F)

200pF~20mF

±(0.5%+5)

Resistance (Ω)

20Ω~200MΩ

±(0.3%+5)

Test Frequency (Hz)

100Hz/120Hz/1KHz/10KHz/100KHz

Yes

Operational Voltage

0.6Vrms

Yes

Test Parameters

L/C/R/DCR/Q/D/θ/ESR

Yes

Features

Display Count

20000

D/Q Display Count

2000

D/Q  Resolution

0.001

Yes

Auto Range

Yes

Real-Time Display Test Frequency

Yes

Measurement Mode

Series/Parallel

Yes

Auto Power Off

Yes

Low Battery Indication

≤6.8V

Yes

Data Hold

Yes

Relative Mode

Yes

USB Interface

Yes

USB Interface/PC Data Records

60000

LCD Backlight

Yes

Analogue Bar Graph

26

Deviation Ratio Measurement

Yes

Comparsion Function

Yes

Calibration Function

Yes

Output Impedance

120Ω

Yes

Auto LCR Smart Check and Measurement

Yes

General Characteristic

Power

9V Battery(6F22) or USB

LCD Size

40 * 63mm

Product Colour

Red and Grey

Product Net Weight

374g

Product Size

96 * 193 *47mm

Standard Accessories

Battery,SMD Test Clamp,USB Interface Cable,Multi-Purpose Socket,PC Software CD

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

24 PCs

Standard Carton Measurement

610mm * 450mm * 355mm  (0.097 CBM Per Standard Carton)

Standard Carton Cross Weight

22.3Kg

Optional Accessories*

USB Power Adapter

Specification

Range

Best Accuracy

Model

UT611

UT612

Inductance (H)

600uH~200H

±(0.5%+5)

20uH~2000H

±(0.5%+5)

Capacitance (F)

600pF~10mF

±(0.5%+5)

200pF~20mF

±(0.5%+5)

Resistance (Ω)

60Ω~20MΩ

±(0.5%+5)

20Ω~200MΩ

±(0.3%+5)

Test Frequency (Hz)

100Hz/120Hz/1KHz/10KHz

Yes

100Hz/120Hz/1KHz/10KHz/100KHz

Yes

Operational Voltage

0.5Vrms

Yes

0.6Vrms

Yes

Test Parameters

L/C/R/DCR/Q/D/θ/ESR

Yes

Yes

Features

Display Count

6000

20000

D/Q Display Count

1000

2000

D/Q  Resolution

0.001

Yes

Yes

Auto Range

Yes

Yes

Real-Time Display Test Frequency

Yes

Yes

Measurement Mode

Series/Parallel

Yes

Yes

Auto Power Off

Yes

Yes

Low Battery Indication

≤6.8V

Yes

Yes

Data Hold

Yes

Yes

Relative Mode

Yes

Yes

USB Interface

Yes

USB Interface/PC Data Records

60000

Data Storage

1000

LCD Backlight

Yes

Yes

Analogue Bar Graph

30

26

Deviation Ratio Measurement

Yes

Comparsion Function

Yes

Yes

Calibration Function

Yes

Yes

Output Impedance

120Ω

Yes

Yes

Auto LCR Smart Check and Measurement

Yes

Yes

General Characteristic

Power

9V Battery(6F22) or USB

LCD Size

40 * 63mm

Product Colour

Red and Grey

Product Net Weight

374g

Product Size

96 * 193 * 47mm

Standard Accessories

UT611-Battery,SMD Test Clamp,

UT612-Battery,SMD Test Clamp USB Interface Cable,Multi-Purpose Socket,PC Software CD

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

24 PCs

Standard Carton Measurement

610mm * 450mm * 355mm  (0.097 CBM Per Standard Carton)

Standard Carton Cross Weight

22.3Kg

Optional Accessories*

USB Power Adapter
