Product Details
| Type | Clear Quartz Plate | Application | Semiconductor | |
| Thickness | 1-30mm | Shape | Circular Shape | |
| Place of Origin | Jiangsu, China | Brand Name | Liaison Quartz | |
| Model Number | QL-04 |
bubble bag to carton->carton to wooden case, Liaison quartz standard packing for round quartz glass plate
Product Description
round quartz glass plate:

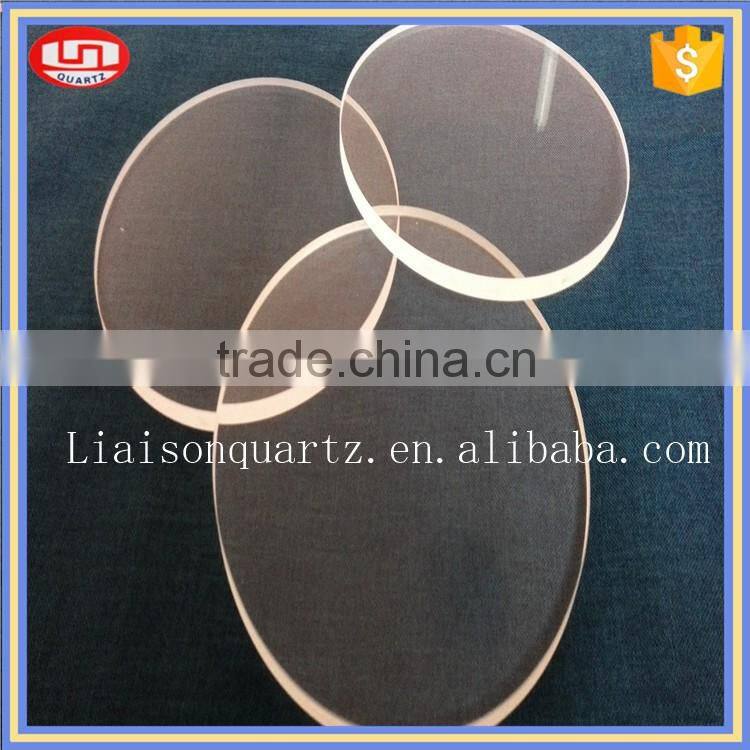

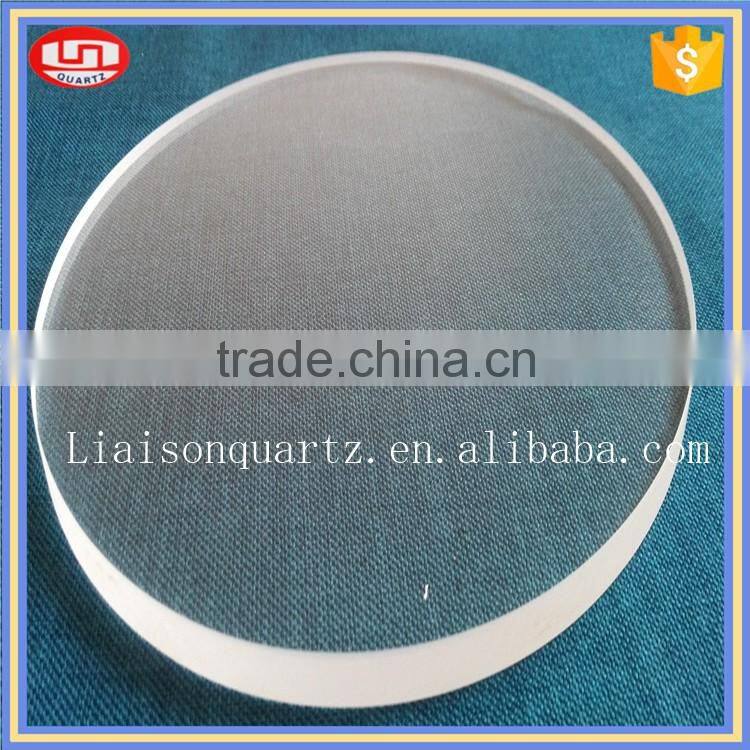

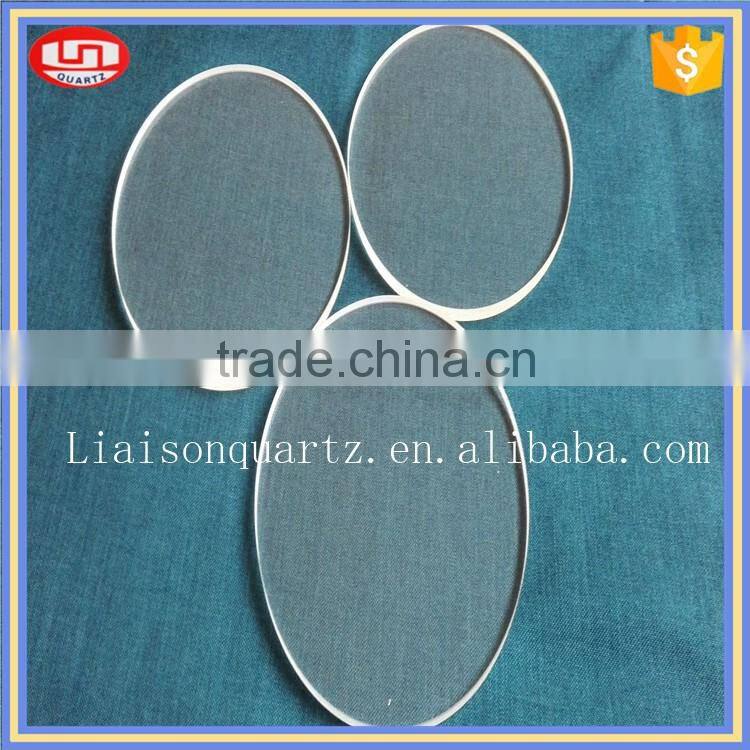

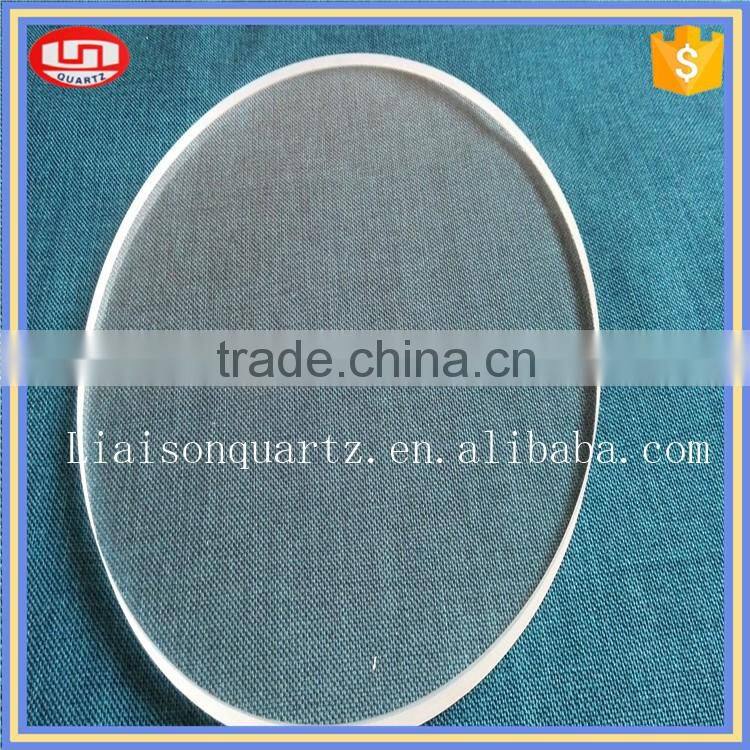

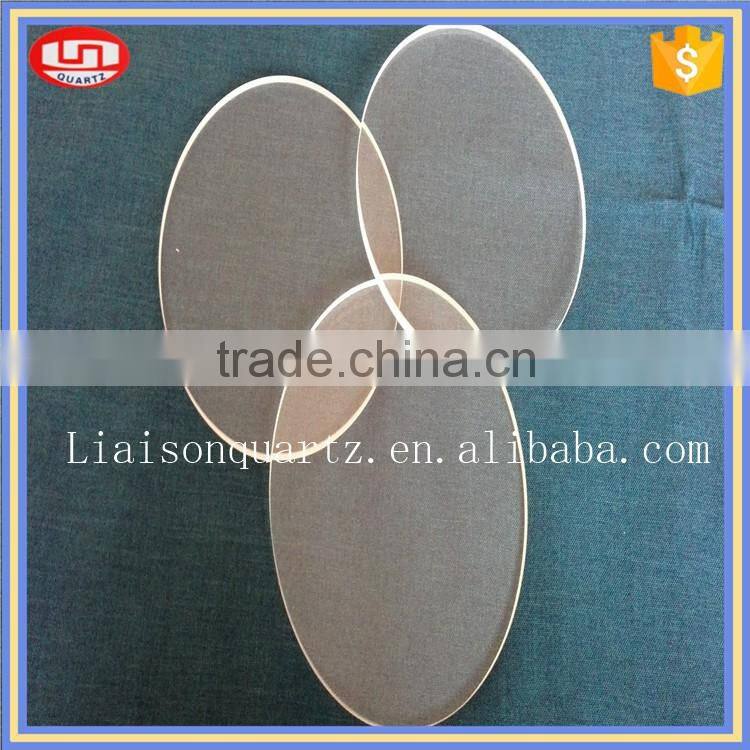

Product image display
General Characters
-High purity, SiO2>99.9%
-High temperature resistance
-Anti-corrosion
-Electrical insulation
-High spectral transmission >90%
-High temperature stability
| Physical properties | |
| SiO2 : | 99.99% |
| Density : | 2.2(g/cm3) |
| Degree of hardness mosh' scale : | 6.6 |
| Coefficient of expansion 25--300℃ ℃-1 ( ×10-6 ) | 0.58 |
| Melting point: | 1732°C |
| Working temperature : | Under 1100°C |
| Max temperature can reach in a short time : | 1450°C |
| Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
| Visible light transmittance : | above 93% |
| UV spectral region transmittance: | 80% |
| Resistance value : | 10000 times than ordinary glass |
| Annealing point: | 1180°C |
| softening point: | 1630°C |
| Strain point: | 1100°C |
| Dimension Tolerance(mm) | |||||
| Designation | OD | WT | Max. Siding | Max. Ovality | Max. Bow |
| 1-3mm | ±0.05 | ±0.05 | 0.05 | 0.05 | 1‰ |
| 3-10mm | ±0.1 | ±0.1 | 0.1 | 0.15 | 2‰ |
| 10-20mm | ±0.2 | ±0.1 | 0.1 | 0.2 | 2‰ |
| 20-30mm | ±0.3 | ±0.15 | 0.15 | 0.2 | 2‰ |
| 30-40mm | ±0.4 | ±0.15 | 0.2 | 0.2 | 2‰ |
| 40-50mm | ±0.5 | ±0.2 | 0.25 | 0.25 | 2‰ |
| 50-65mm | ±0.6 | ±0.2 | 0.35 | 0.25 | 2.5‰ |
| 65-85mm | ±0.8 | ±0.3 | 0.45 | 0.3 | 2.5‰ |
| 85-100mm | ±1 | ±0.3 | 0.5 | 0.5 | 2.5‰ |
| 100-150mm | ±1.5 | ±0.4 | 0.5 | 0.8 | 3‰ |
| 150-200mm | ±2 | ±0.6 | 0.6 | 1 | 4‰ |
| 200-300mm | ±3 | ±0.8 | 0.7 | 2 | 5‰ |
| Spectral Transmission at 1.0mm Thickness | ||||||||
| nm | 220 | 255 | 280 | 315 | 350 | 380 | 590 | 780 |
| % | 89 | 91 | 93 | 93 | 93 | 93 | 93.2 | 93.4 |
| Chemical Composition, unit: PPM | ||||||||
| K+Na | Ca | Fe | Al | Mg | Ti | Ba | Li | Cu |
| <10 | <3.0 | <1.5 | <20 | <1.0 | <3.0 | <0.2 | <1.0 | <0.5 |
Packing method:
Each product with a bubble bag, and put into carton box, and then packed in wooden case.
Sample service
Available in stock, samples will be sent as free, but freight cost is on customer side.
No stock, sample cost will be charged.
OEM service
Welcome OEM drawing.
Quick response and flexcible communication time
Feedback within 12hours, and free to communicate during 7:00~22:00.
Since 2005
Specialized in making further processed quartz products as below:
Larger diameter quartz tube
Capillary quartz tube
Milky quartz tube
Quartz plate(block/sheet/disc/..)
Quartz rod
IR quartz heating lamp
Electric-thermal film coated quartz heating tube
We can make various quartz products as your drawing.
Provide OEM and ODM.
