Exterior Cladding Corrugated Aluminum Sandwich Composite Panel

FOB Price

US$ 4 - 40 / Square Meter

800 Square Meters(Min. Order)

Port shunde
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ALCADEX
Model Number	exterior cladding corrugated aluminum sandwich composite panel	Usage	Outdoor
Function	Anti-Static, Fireproof	Surface Treatment	Anodized, Brushed, PE Coated, PVDF Coated, Other, PE Coated, PVDF Coated, Anodized, Brushed, PE Coated, PVDF Coated, exterior cladding corrugated aluminum sandwich composite panel, PE Coated, PVDF Coated

Packaging Details

strong wooden cases

Product Description

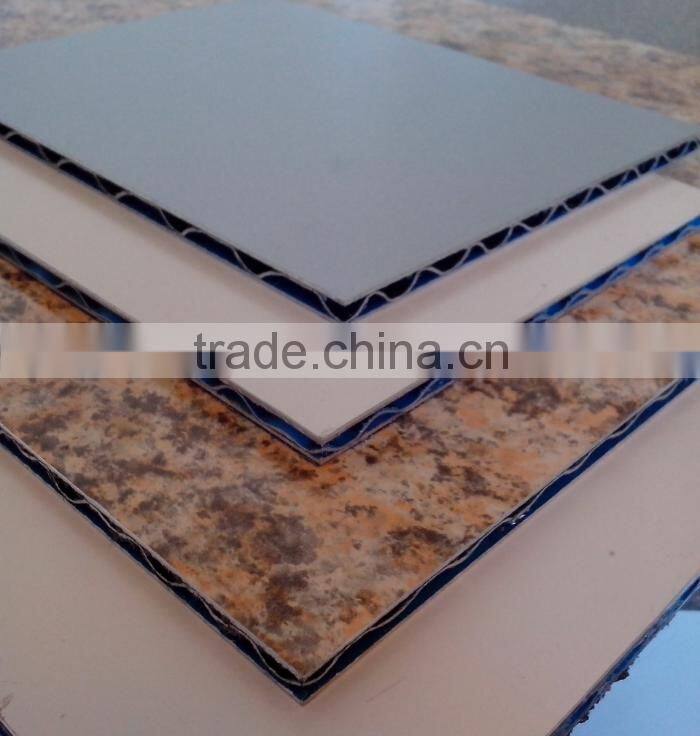

exterior cladding corrugated aluminum sandwich composite panel

Product Description

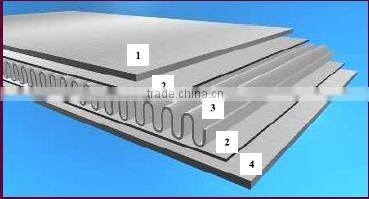

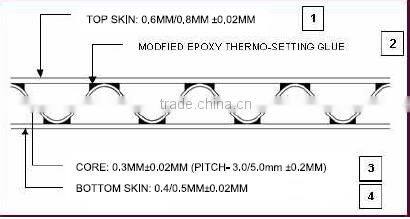

It is also called aluminum lattice composite panel ,or improved honeycomb panel, that does not incur the expensive unit price of aluminum honeycomb panel but is stronger and has better quality than the latter. It is fully composed of metal materials without plastic ingredients, 100% environmentally friendly and fire resistant. Meanwhile, it has the feature of easy processing like the aluminum composite panel. The panel makes use of its unique physical structure with the small amount of aluminum material used. It is lighter than aluminum panels and has a flatter panel surface. Additionally, there are a variety of outer look selections available. The perfect surface presentation can be shown as a stone texture, wood texture or mirror surface.

Width	1000/1220mm/ 1500mm
Panel Thickness	4mm
Aluminium Alloy	AA3003
Aluminium Thickness	0.4-0.8mm
Coating	PE / PVDF /Wooden/Granite/Brush/Mirror
Core	Noncombustible Aluminum Core
Length	6000mm in maximum
Color	Solid / Metallic / Marble / Wooden / Brush / Glossy
MOQ	800 SQM/standard size/color 1500 SQM/customized size/color
Brand / OEM	ALCADEX® / Customized
Delivery	In 20 day after getting deposit and color confirmation
Payment Terms	T/T / L/C / Western Union / Paypal
Packing	Wooden Package or bulk loading

Data Comparison (with other facade products):

Item Name	Weight/Sqm	Fireproof	Flatness	Surface Finish	Maximum Panel Size
4mm 3D Panel	3.6kg	Excellent	Excellent	PE/PVDF,Brushed,Wood,Marble,Mirror	1.5M*L
10mm Alu Honeycomb Panel	6.6kg	Excellent	Excellent	PE/PVDF	1.2M*L
6mm Alu Corrugated Panel	4.6kg	Excellent	fair	PE/PVDF,Brushed,Wood,Marble,Mirror	1.2M*L
4mm Alu Composite Panel	6.8kg	Grade B1	poor	PE/PVDF	2.0M*L
3.5mm Alu Solid Panel	6.8kg	Excellent	poor	PE/PVDF	1.3M*L

Item Name	Flat-Wise Tension Strength	Flat-Wise Crush Strength	Shear Strength	Bending Strength	Cylinder Peel Strength
4mm 3D Panel	0.85Mpa	4.39Mpa	0.85Mpa	161.9Mpa	102.7 N.mm/mm
10mm Alu Honeycomb Panel	>0.8Mpa	>0.8Mpa	>0.5Mpa	No Standard Available	50 N.mm/mm
6mm Alu Corrugated Panel	>1.5Mpa	>1.5Mpa	No Standard Available	>100Mpa	40 N.mm/mm
4mm Alu Composite Panel	No Standard Available	No Standard Available	29Mpa	131Mpa	No Standard Available

Features:

A. Light Weight, compared to solid aluminum sheet, PE and FR core aluminum plastic composite panel;

B. Noncombustible Aluminum core;

C. Easy to fabricate compared to honeycomb panel;

D. More strength because of the corrugated core, compare to normal composite panel;

E. Cost effective, compared to honeycomb or FR composite panel;

F. More soud and heat insulation;

G. 100% recycling, aluminium metal only

Application:

A. Exterior wall-cladding

B. Interior wall decoration

C. Wallboard,ceiling,partition

D. Billboard,exhibition and notice board
