Mini Circuit Breaker DZ47 Breaker

FOB Price

US$ 0.1 - 1 / Piece

2000 Pieces(Min. Order)

Port CHINA PORT
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	CANGSONG
Model Number	Mini Circuit Breaker (MCB) - DZ47-63 4P	Type	Mini
Poles Number	4

Product Description

Specifications

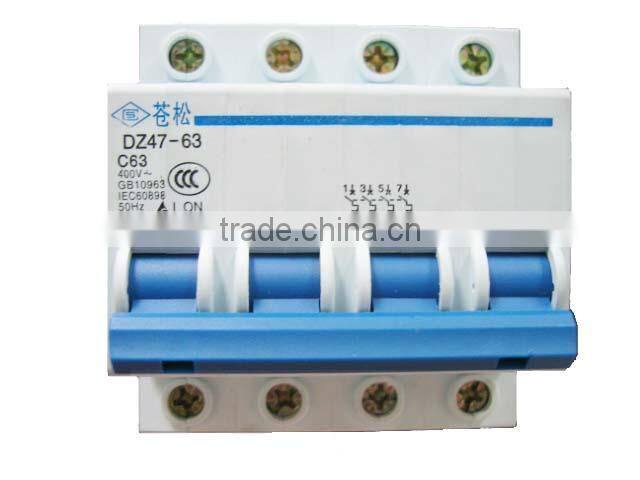

Mini Circuit Breaker DZ47 breaker
1 high breaking capacity
2 GB10963,IEC60898 standard
3 rated current: 6, 10, 16, 20, 25,

Detailed specification:

DZ47-63 series circuit breaker is used in lighting distribution system or motor distribution
system for protecting overload and short-circuit in the system. The product is novel
in structure, light in weight,reliable and excellent in performance. It has high breaking
capacity, can trip quickly and it's installation uses with guide, its case and body are
adopted with high fi re-resistant and shockproof plastics. The product, with long life, is
mainly used in AC 50Hz/60Hz single-pole 240V or two, three, four-pole 415V circuit
for overload and short-circuit protection as well as for unfrequent on-and-off switching
electric equipment and lighting circuit in normal case. This product conform to GB10963,

Main specification:
As per rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
As per poles: 1P, 2P, 3P, 4P
As per instantaneous release type: B type (3" - 5"), C type (5 - 10"), D type (10" - 14")

Products features:
Breaking capacity highly, all rated current can be up to above 6KA
Many kinds of accessories can be chosen, in modularize and flexibility combine that make the customer install conveniently
The cover and function parts both are made of inflaming retarding, bear high temperature and bear impact plastic
