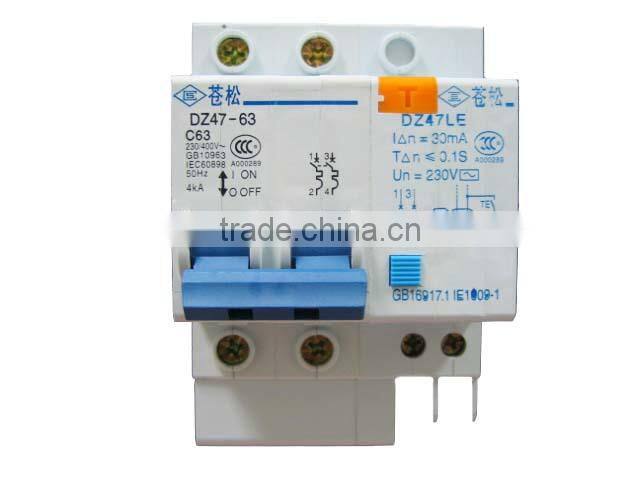

MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER

FOB Price

US$ 1.2 - 5 / Piece

500 Pieces(Min. Order)

Port NINGBO/SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	cangsong
Model Number	MCB DZ47LE-63 2P circuit breaker	Type	Air
Poles Number	2

Product Description

Specifications

MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER

MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER

1.Rated voltage:220/380V
2.Rated current:1~60A
3.Leakage current:30/100MA
4.Poles:1/2/3/4P
5.Standard:IEC60898/IEC60755

Application:

MCB DZ47LE/63 earth leakage circuit breaker is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage single-phase 240V, 3 phase 415V, rated current up to 60A. when somebody gets an electric shock or the residual current od the circuit exceeds the fixed value, the ELCB can cut off the power within the time of 0.1s automatically protecting the personal safety and preventing the equipment from the fault resulted from the residual current. With this function, the ELCB can protect the circuit against overload and short circuit or can be used for the unfrequent switch over of the circuit under normal conditions. It conforms to IEC 60898&IEC60755

MCB SPECIFICATION:

Rated Voltage(V)	Pole No	Rated current (A)	Leakage action current(mA)	Leakage dead current(mA)	Leakage action time(s)
220V	1P	1~10	30	15	<0.1
380V	2,3,4P	15~32	100	50
380V	2,3,4P	40~60	100	50

a.TH35-7.5 rail is used for the product installation
b. Outline and installation dimensions(see the figure and the table)

Type	Dimensions
Type	A	B	C	D	E
DZ47L-60/1N	46	70	40	45	94
DZ47L-60/2	64	70	40	45	94
DZ47L-60/3	91	70	40	45	94
DZ47L-60/3N	100	70	40	45	94
DZ47L-60/4	118	70	40	45	94

MCB MIN TECHNICAL DATA:

Single-pole

double line

Double-pole

double line

Triple-pole

triple line

Triple-pole

four line

Four-pole

four line

DZ47L

C45LS

1/2

DZ47L

C45LS

2/2

DZ47L

C45LS

3/3

DZ47L

C45LS

3/4

DZ47L

C45LS

4/4
