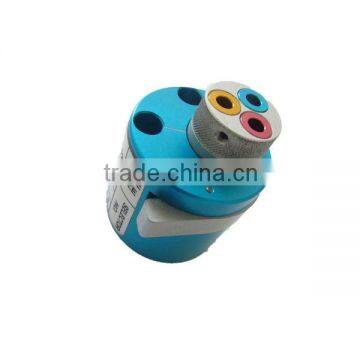

TH1A turret retainer M22520/1-02 standard locator positioner matched with YJQ-W2A(M22520/1-01)

GENERAL INFORMATION

THIA is compatible with the M22520/1-02 which is matched with YJQ-W2A for crimping contacts and wires in electronic connectors.

TURRET POSITIONER INSTALLING

1. Keep the crimp tool in open position.
2. Press turret trigger latch which releases turret to indexing position.
3. Place selected turret head assembly onto retainer ring with socket head screws lined up with tapped holes.
4. After turret head is seated against retainer ring, tighten socket head screws.
5. Refer to data plate on turret head. From the color code column, select the positioner color that corresponds with the appropriate part number and size of contact to be crimped.
6. With tool in open position, and turret in indexing position, rotate until color coded positioner is in line with index mark. Press turret until it snaps in latched position.
7. Refer to data plate on turret head. From proper wire size column, determine the selector number that corresponds with the contact being used.
8. Remove spring clip from selector number is in line with index mark.

TURRET POSITIONER REMOVING

With tool in open position, release turret. Loosen socket head screws until threads are disengaged from retainer ring and remove with a straight lifting motion.

CAUTIONS

1. Keep the positioner clean and properly stored when not in use or no operator maintenance.
2. Don’t try to immerse it in cleaning solution or spray oil into tools to lubricate.
3. If finding anomalies due to the incorrect ways, don’t attempt to disassemble it or make repairs. Please stop using it and connect us as soon as possible, our company will offer complete refurbishing and recalibration services.
