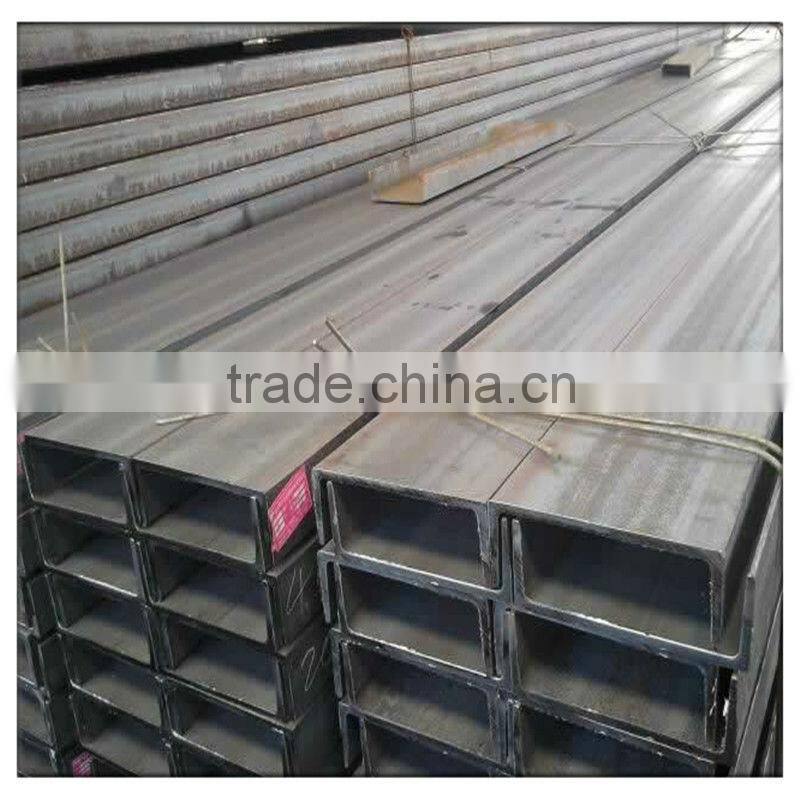

PRIME SS400 HOT ROLLED STEEL CHANNELS
- Xingang
- T/T
You May Like
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AISI, ASTM, BS, DIN, GB, JIS | Dimensions | 50*37*4.5mm-400*104*14.5mm, 50*37*4.5mm -400*104*14.5mm | |
| Grade | SS400, SS400 | Place of Origin | Hebei, China | |
| Brand Name | Jiaxi | Model Number | channel steel | |
| Shape | Other, U Channel, U channel | Application | building material | |
| Perforated Or Not | Not Perforated |
Product Description
Specifications
1.Size: 50*25-200*802.Grade: Q235/SS400/A36/S235JR
3.Brand: Kaiwei Steel
4.MOQ: 100 MTS for each size
Specifications
1.channel steel: ss400/q235/st37-2/a36/s235jr
2.channel steel 5.8/6/9/12m
3.LC payment channel steel
4.delivery within 45 day
Dimensions (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
50*25 | 3.0-5.0 | 5.0-6.0 | 2.370-3.460 |
75*40 | 3.8 | 7.0 | 5.300 |
75*40 | 4.0 | 7.0 | 5.600 |
75*40 | 4.5 | 7.0 | 5.850 |
75*40 | 5.0 | 7.0 | 6.920 |
100*50 | 3.8 | 6.0 | 7.300 |
100*50 | 4.2 | 6.0 | 8.030 |
100*50 | 4.5 | 7.5 | 8.970 |
100*50 | 5.0 | 7.5 | 9.360 |
125*65 | 5.2 | 6.8 | 11.660 |
125*65 | 5.3 | 6.8 | 12.170 |
125*65 | 5.5 | 8.0 | 12.910 |
125*65 | 6.0 | 8.0 | 13.400 |
150*75 | 5.5 | 7.3 | 14.660 |
150*75 | 5.7 | 10.0 | 16.710 |
150*75 | 6.0 | 10.0 | 17.900 |
150*75 | 6.5 | 10.0 | 18.600 |
150*75 | 9.0 | 12.5 | 24.000 |
200*80 | 7.5 | 11.0 | 24.600 |
200*90 | 8.0 | 13.5 | 30.300 |
