Product Details
| Place of Origin | Guangdong, China | Brand Name | Pikes | |
| Model Number | H series | Type | Filter |
Product Description
Fiberglass pool sand filter tank
1.Description
Fiberglass pool sand filter tank
[1]Service manhole for easy maintenance
[2]Inner filtration system with evenly spread laterals enhance filtration performance
[3]Equipped with manometer for easy inspection of the working pressure of both inlet and outlet
2. Main information
Fiberglass pool sand filter tank
Feature | Data |
*Max operating pressure | 36psi / 2.5bar / 56 psi (4.0bar) |
*Max temperature | 43°C (109°F) |
*Maximum filtration velocity | 50m³/h/m² |
*Suggested size of media | 0.5-0.8mm sand & 1-2mm gravel |
3. Technical characteristic
Fiberglass pool sand filter tank

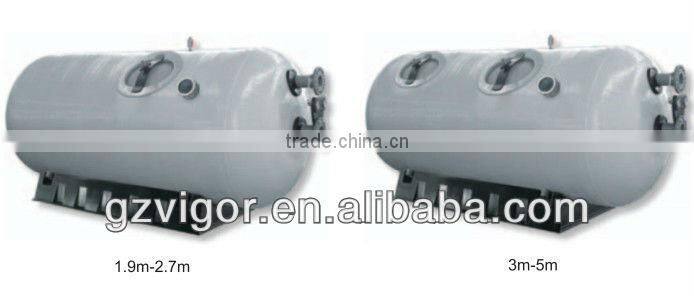

H1200-1.9 | ¢1.2m*1.9m Length Horizontal Sand Filter. | ¢ 4" Flange in/outlet. (1.96m2/h) |
H1200-2.3 | ¢ 1.2m*2.3m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (2.42m2/h) |
H1200-2.5 | ¢ 1.2m*2.5m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (2.65m2/h) |
H1200-2.7 | ¢ 1.2m*2.7m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (2.87m2/h) |
H1200-3.0 | ¢ 1.2m*3.0m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (3.21m2/h) |
H1400-1.9 | ¢ 1.4m*1.9m Length Horizontal Sand Filter. | ¢ 4" Flange in/outlet. (2.23m2/h) |
H1400-2.5 | ¢ 1.4m*2.5m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (3.02m2/h) |
H1400-3.0 | ¢ 1.4m*3.0m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (3.67m2/h) |
H1600-1.9 | ¢ 1.6m*1.9m Length Horizontal Sand Filter. | ¢ 4" Flange in/outlet. (2.47m2/h) |
H1600-2.5 | ¢ 1.6m*2.5m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (3.36m2/h) |
H1600-3.0 | ¢ 1.6m*3.0m Length Horizontal Sand Filter. | ¢ 6" Flange in/outlet. (4.10m2/h) |
4.Payments and delivery
1 ) Payment Details: 30% in advance,+70% balance should be paid before delivery.
2 ) Delivery Details: lead time:1x20ft for 15 days;1x40ft for 20 days
3 ) Port of loading: Guangzhou, Mainland china.
4 ) Discounts are offered based on order quantities.
5. Why us?
1.Timely Delivery, considerate sales after service
2.Many Years quality warranty,OEM service.
3.Top Craftmanship, All products 100% tested
4.Preferential freight by Famous shipping company
5.New Design,Very popular style products recommendation for your local market
6.About us?

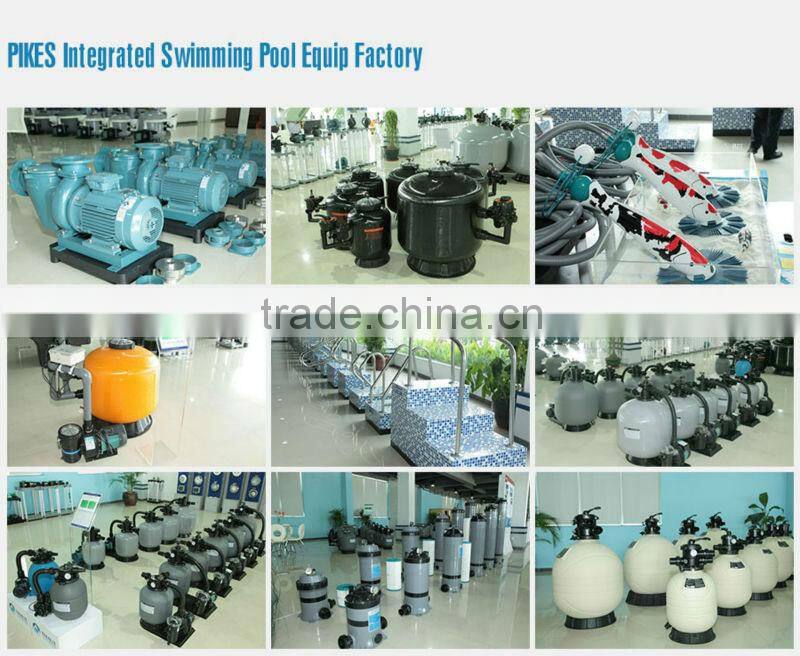

Guangzhou Vigor Health Equipment Co., Ltd.
A professional manufacturer of high quality swimming pool products for more than 15 years.

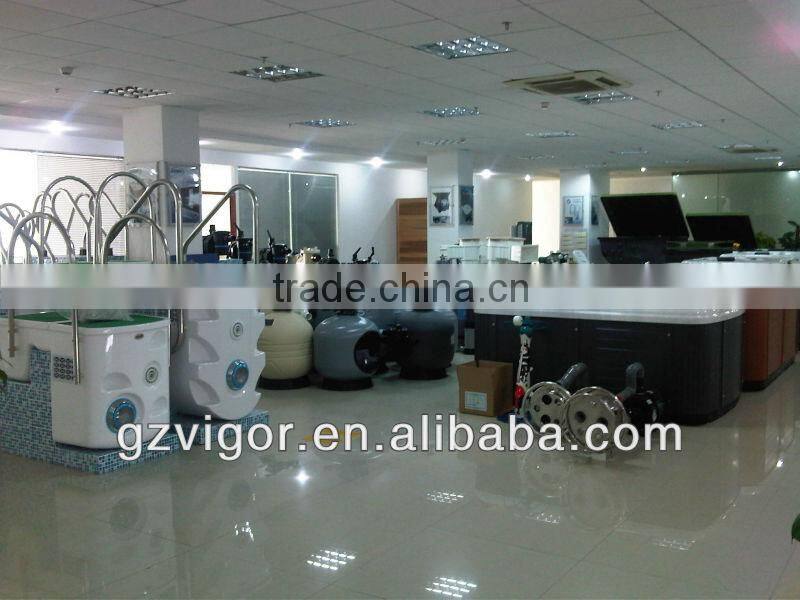

10.000m2 factory in Qingyuan city, 800m2 Office & show room in Guangzhou.
Welcome to visit our factory and showroom.

Fiberglass pool sand filter tank
Fiberglass pool sand filter tank
Fiberglass pool sand filter tank
More details, please contact me at your convenience.
