Container Loading Dock Platform
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Moral | |
| Model Number | YDCQ-6 | After-sales Service Provided | Overseas third-party support available |
Product Description

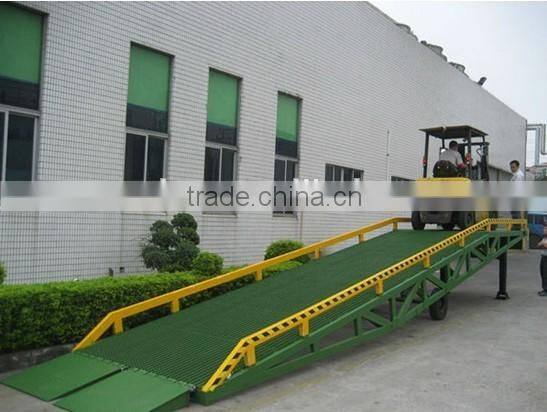

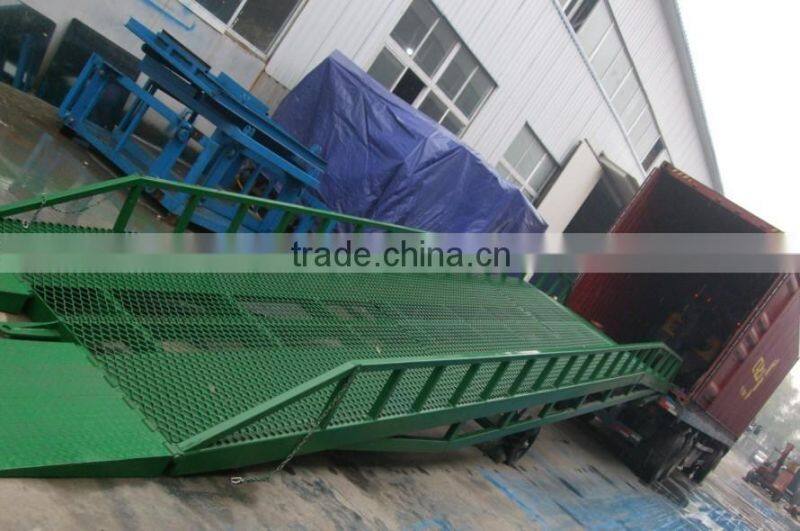

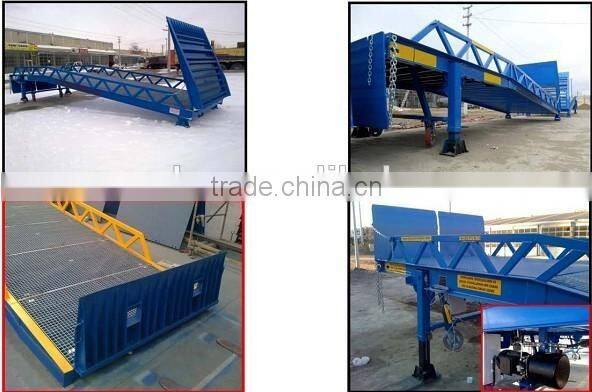

container loading dock platform
Mobile Hydraulic Dock Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is mobile and controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.
Hydraulic truck ramp
1.Adjust range:1200~1800mm
2.Dimension:W2000*L11500*H1200mm
3.easy to operate
4.we can customize for u
Model # | Load Capacity | Working height Range(m) | Maximum elevations | Overall Dimensions(m) | Operation Method |
YDCQ-5 | 5 | 1.0~1.8 | ≤13o | 11×2.08×1.3 | Manually or electrical drive |
YDCQ-6 | 6 | 1.0~1.8 | ≤13o | 11×2.08×1.3 | Manually or electrical drive |
YDCQ-8 | 8 | 1.0~1.8 | ≤13o | 11×2.08×1.3 | Manually or electrical drive |
YDCQ-10 | 10 | 1.0~1.8 | ≤13o | 11×2.08×1.3 | Manually or electrical drive |
YDCQ-12 | 12 | 1.0~1.8 | ≤13o | 11×2.08×1.3 | Manually or electrical drive |
YDCQ-15 | 15 | 1.0~1.8 | ≤13o | 11×2.08×1.3 | Manually or electrical drive |
Main features
1)Hydraulic system:
With handle pump, screw the return valve clockwise.Move the handle stick, to lift the ramp slowly.When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
2)Heavy-duty mobile chakra
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
3)Spin adjustable a leg
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
4)Manual hydraulic elevator system
Using artificial hydraulic power, don't must external electric power can be easily realized climbing height adjustment.
5)Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile climbing.
6)Hinge transition
Adjustable length of cable chains used to hook vehicles, make climbing and vehicles, even shift, always close together joint.
7)Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body skeleton into truss add structure: compound high strength, the characteristics of large carrying capacity.
8)Antiskid steel nets
Laying a layer above the bridge body slippery anilox steel plates. Mesh is distorted and hollow out, not only improved the reliability and work can prevent grease, dirt and ice accumulation.
9)Safety crack-proof valve
In addition to the relief valve, in order to prevent the tubing rupture, occur because of the accident, hydraulic systems of decline set in pipeline rupture types.the valve, when oil will automatically lock.
Packaging & shipping:
Related products:
Payment terms:
50% deposit, 50% balance before shipping or after the copy of B/L
