Home > Products > Yard trailer > Mobile Hydraulic Yard Dock Ramp
Mobile Hydraulic Yard Dock Ramp
- Qingdao
 - T/T Credit Card

You May Like
-


Hydraulic Mobile Heavy Duty Loading Dock Ramp
 -


Hot Sale Heavy Load Capacity Mobile Hydraulic Dock Ramp
 -


CE Approved Heavy Loading Mobile Type Hydraulic Loading Ramp
 -


Heavy Loading Hydraulic Container Ramp
 -


Hydraulic Heavy Duty Mobile Loading Dock Ramp With CE
 -


Hot Sale 8 Ton Hydraulic Mobile Container Load Ramp

Product Details
| Place of Origin | Shandong, China | Brand Name | Moral | |
| Model Number | YDCQ | After-sales Service Provided | Overseas service center available |
Product Description

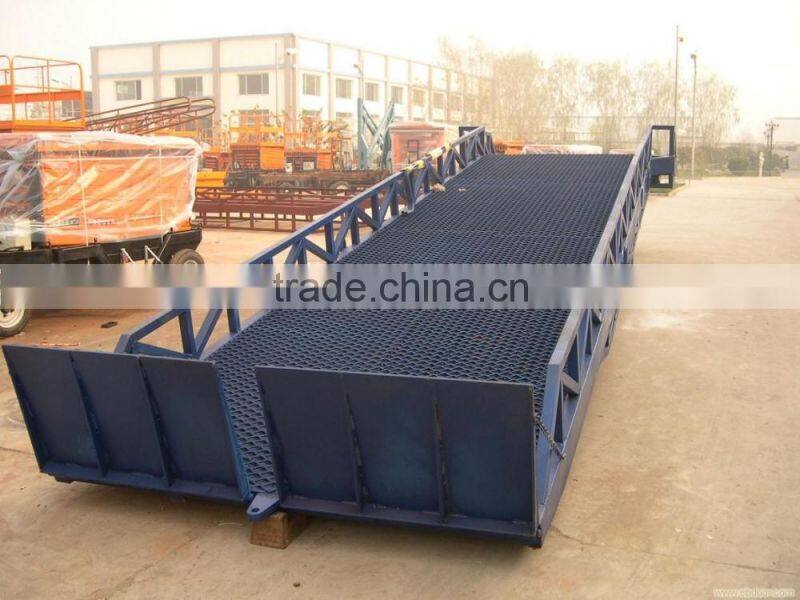

Mobile hydraulic yard dock ramp
Product introduction
Mobile Hydraulic Dock Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is mobile and controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.
1)Hydraulic system:With handle pump, screw the return valve clockwise.Move the handle stick, to lift the ramp slowly.When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
2)Heavy-duty mobile chakra
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
3)Spin adjustable a leg
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
4)Manual hydraulic elevator system
Using artificial hydraulic power, don't must external electric power can be easily realized climbing height adjustment.
5)Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile climbing.
Features:
1.Load capacity:6-30T
2.Customer-design
3.Adjustable leg support
4.Electric control or manual control
5.Emergency buttons
Hydraulic truck ramp
1.Adjust range:1200~1700mm
2.Dimension:W2000*L11500*H1200mm
3.easy to operate
4.we can customize for you
Safe operation:
1. While the ramp is under using, the table should be kept in level and be stable. Move speed: 3km/h
2. While the ramp falls down, the person climbing is forbidden.
3. Overloading is forbidden.
4. Keeping the hydraulic oil clean, without the mixture of water or other impurity. The oil changing is normally half year. The model of oil is N32# in winter, and N46# in summer.
5. When the emergency occurs, the operation must be stopped immediately to repair troubles.
Note: the tyre of yard ramp is only used to move the machine, after you land the legs, let out the hydraulic oil of the cylinders, or the heavy loading will break the cylinders and the tyres. For the tyre and cylinders of ramp don’t carry the load. The tyre is for move, and the cylinder is used for change the working height.
Parameter:
Model  | Mobile capacity  | Adjusting range  | Table size  | Total dimension  | Lifting style  |
DCQ-5  | 5t  | +300-250mm  | 2000x2000mm  | 2000x2000x600mm  | electrical operation  |
DCQ-6  | 6t  | +300-250mm  | 2000x2000mm  | 2000x2000x600mm  | electrical operation  |
DCQ-8  | 8t  | +300-250mm  | 2000x2000mm  | 2000x2000x600mm  | electrical operation  |
DCQ-10  | 10t  | +300-250mm  | 2000x2000mm  | 2000x2000x600mm  | electrical operation  |
DCQ-12  | 12t  | +300-250mm  | 2000x2000mm  | 2000x2000x600mm  | electrical operation  |
DCQ-15  | 15t  | +300-250mm  | 2000x2000mm  | 2000x2000x600mm  | electrical operation  |
DCQ-5  | 5t  | +400-300mm  | 2500x2000mm  | 2500x2000x600mm  | electrical operation  |
DCQ-6  | 6t  | +400-300mm  | 2500x2000mm  | 2500x2000x600mm  | electrical operation  |
DCQ-8  | 8t  | +400-300mm  | 2500x2000mm  | 2500x2000x600mm  | electrical operation  |
DCQ-10  | 10t  | +400-300mm  | 2500x2000mm  | 2500x2000x600mm  | electrical operation  |
DCQ-12  | 12t  | +400-300mm  | 2500x2000mm  | 2500x2000x600mm  | electrical operation  |
DCQ-15  | 15t  | +400-300mm  | 2500x2000mm  | 2500x2000x600mm  | electrical operation  |
Photos:
Our service:
A Guarantee:
1. 5 years warranty for steel structure and 1 year warranty for hydraulic and electrical
2. Some spare parts such as oil seal will be provided free of charge for container load quantity(3pcs). Spare parts will be provided at a very reasonable price after the warranty period.
B Technical support:
1. Technical support by phone, email or MSN/Skype 24 HOURS
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas.
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it,
we can give you a best solution within 24 hours
10 fast delivery, save your time.
Thank you for visiting our products!
Welcome to patronize !
