Home > Products > Rotary Evaporator > 50L Laboratory Rotary Evaporator Explosion-proof Type
50L Laboratory Rotary Evaporator Explosion-proof Type
- shanghai
You May Like
Product Details
| Condition | New | Application | Distillation | |
| Power Source | Electric | Process | Vacuum Distillation | |
| Place of Origin | Shanghai, China | Brand Name | Guojing | |
| Model Number | R5002EX | Voltage | 220V | |
| Power(W) | 8Kw | Dimension(L*W*H) | 130*80*230cm | |
| Weight | 45Kg | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description

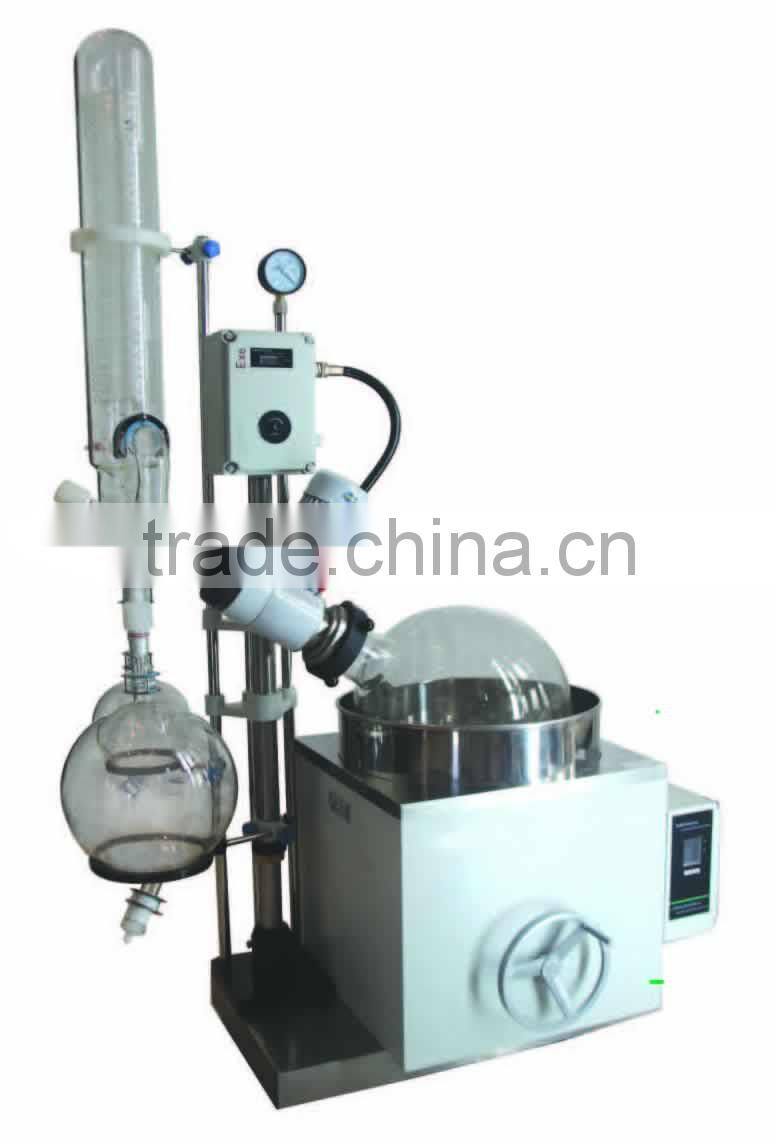

Rotary Evaporator R5002EX
Rotary evaporator can form film to perform condensation, distillation and menstruum recycle under negative pressure and constant temperature. Rotary evaporator is especially applied in condensing, crystallizing and separating heat-sensitive material and recycling menstruum.
Our products adopt unique integration design concept and the special technology, coupled with high performance sealing materials, avoid the dirt falling into the reaction bottle under high temperature reaction. Experimental process to achieve "zero pollution", improve the efficiency and greatly different from other similar domestic manufacturers.
Explosion-proof type rotary evaporator R5002EX.
Compact tandem condenser can reduce the risk of losing vacuum.
Curved duct against punch of material, PTFE inlet valve, no pollution by vacuum grease.
PTFE valve/discharge valve can help to continuously receive condensate. No pollution of grease.
PTFE seal assemble with excellent airproof and resistance to erosion.
Twice heating system can save more energy.
Digital display of rotary speed, bath temperature and vacuum level, heat motorized lift.
Explosion proof control box, explosion proof temp control box, two receiving flasks structure is available for option, bath manual lift.
| Specifications | R5002EX |
| Evaporating flask | 50L/F125 |
| Receiving flask | 20L |
| Condensing surface | 1.65m2 |
| Evaporating efficiency(H20) | >9L/h |
| Motor Power | 180w |
| Rotary speed | 10-110 rpm |
| Vacuum Rate( with vacuum meter) | >0.095Mpa |
| Heating power | 8kw |
| Temp control range | Room temp-99 |
| Bath material, capacity | SUS304, 76L |
| Bath height adjustment | 18cm |
| Diemensions | 130x80x230 cm |
| Power supply | 220V/50A |
Explosion proof distribution box Specifications | R5002EX |
Explosion proof of mark | EdellBT6, ExdellCT6 |
Rated voltage | AC380V/220/50Hz |
Main reflux rated voltage | 60A-250A |
Proof level | IP54,IP55 |
Anticorrosion level | WF1 |
case | Painted on surface by high voltage static electricity, In-built high rupture circuit breaker and frequency converter. |
Switch box | Flameproof structure of switch box, increased safety type of bus-bar chamber and terminal box |
Function | Capability of protection from overload and cutting-short |

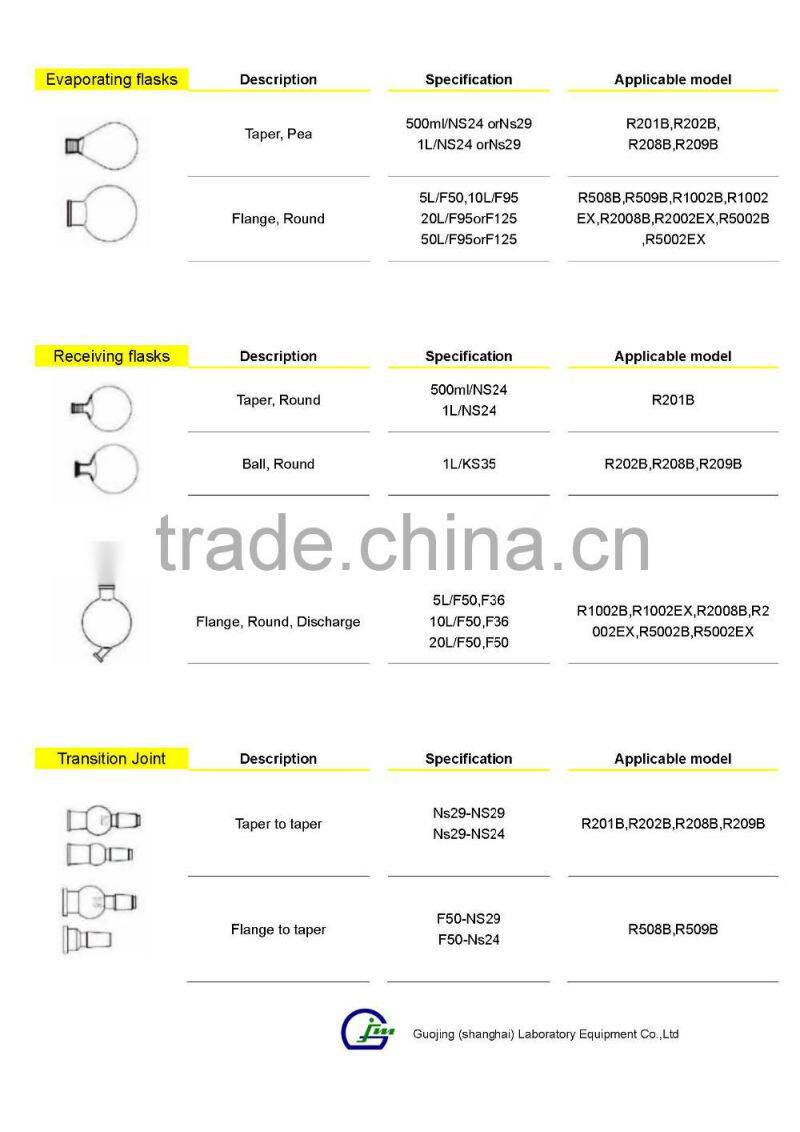

Parts & Accessories
Company Information

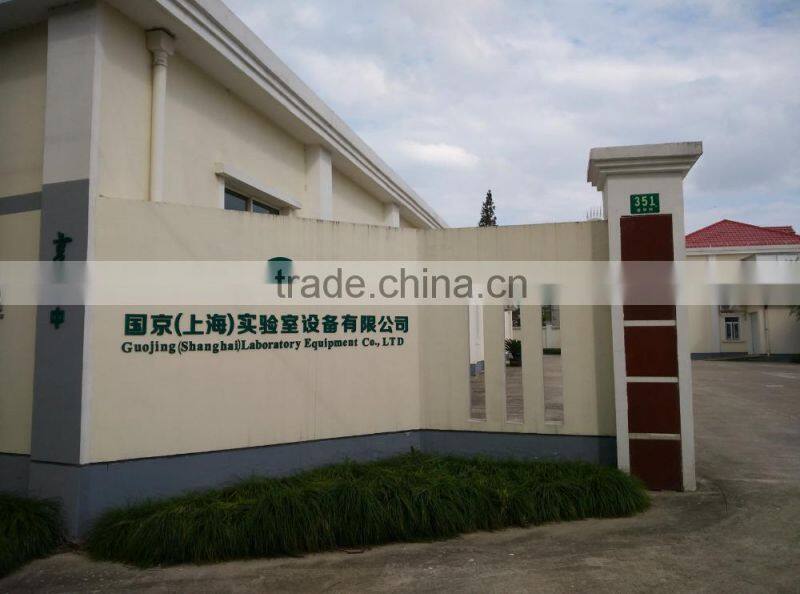

Guojing(Shanghai)laboratory equipment Co.,Ltd. We focus on manufacturing and sales of laboratory equipment and experimental apparatus, main products are rotary evaporator, jacketed glass reactor, heating bath and constant speed blender. We are one of the earliest manufacturers engaged in the development and manufacturing in this area.
Companies adhere to the professional, convenient, honest service concept, is constantly getting the recognition of domestic and foreign well-known brands. We will, as always, for the vast number of scientific research workers to provide safe, efficient and stable scientific support equipment, for the development of cutting-edge technology to make their own contribution to the ability.

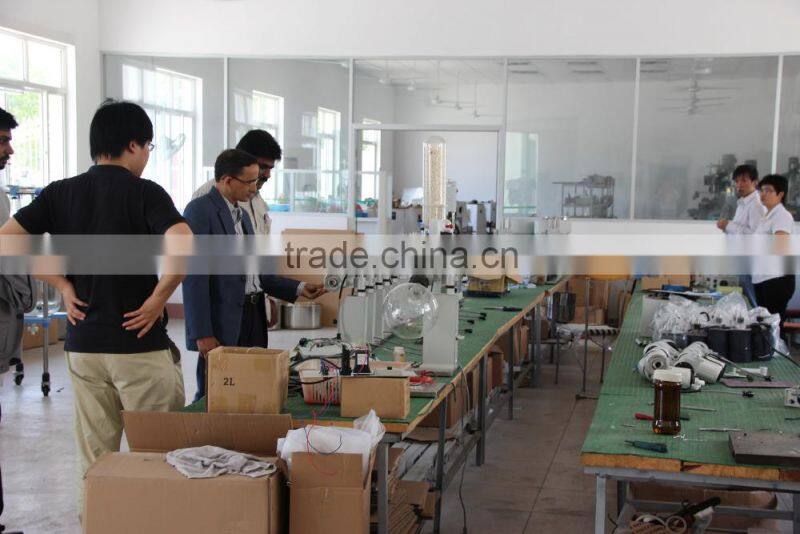

Production factory was established in Shanghai in 2001. Since its inception, has been the heritage of independent development, independent production of enterprises to create ideas, relying on long-term research and development experience and technology, as well as a high degree of credibility of the market development system, and continue to grow and grow. In 2011, the company moved to the production base in the suburbs of Shanghai, so that manufacturing and technical services more quickly.
