Factory best underground swim pool filter for sand filter, chlorine feeder, massage pump

  Factory best underground swim pool filter for sand filter, chlorine feeder, massage pump

1. Brief Description

   Embedded integrated filter can be fixed at a convenient place (underground) near a swimming pool.The filter does not need a machine house, which save construction cost. This filter is characterized by simple installation, complete filter equipment, high performance and conformity to swimming pools specifications. With a durable and corrosion-proof enclosure, the filter can bear 500kg pressure and work well in atrocious wather. These make the filter an outstanding choice for outdoor use.

2.Technical characteristics

1)    Power : 1.3kw/1.5HP/220V/50Hz,   1.71kw/2HP/220V/50hz

2)    Filter type: sand filter(diameter size):Φ-650mm, Φ-700mm

3)    Flow rate:  16m³/h ,  20m³/h

4)    External Dimension: 1380x1180x1100mm

5)    Disinfection: chlorine feeder  ,   Salt chlorinator: 15g/h,25g/h,50g/h (Optional)

6)    Installing: Embedded

7)    External controller: with time

8)    Bear 500kg pressure

3. Features

1) Easy to install, save labor cost

2) Durable & 1 years guarantee

3) No need machine house, save construction cost

4) Complete swimming pool system of filtration,circulation,Disinfection,Cleaning,Time Controller

4.Apply for

Swimming Pool & Spa Pool volume

• 2HP with 700mm sand cylinder :Between 80m³ and 120m³
• 1.5HP with 650mm sand cylinder:Between 60m³-90m³

For hotels, Motes, Clubs, Condos, Apartments,Homes

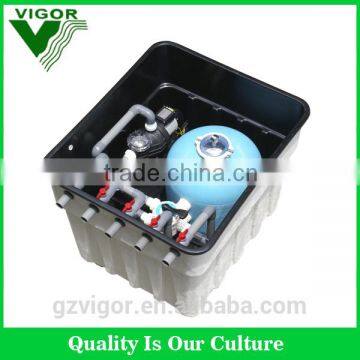

5. Picture Details

6.Why Choose Us?

•  16 years of manufacture with offering pre service of pre-sale,installation solution and  after sale
•  China's only company with complete range of swimming pool and spa products.
•  Timely Delivery
•  Unbeatable price
•  Top Craftmanship
•  CE,RoHS,BV,ISO9001,SGS Certification

7.Payment Terms

1. Payment:30% in advance,+70% balance should be paid before delivery.

2. Lead time:1x20ft for 15 days;1x40ft for 20 days

3. Port of loading: Guangzhou, China (Mainland)

4. Discounts are offered based on order quantities.

8. Compnay Show :

 Our beautiful show room

 Our professional team and customer around the world

                                              Welcome to visit our factory and contact with me!
