Product Details
| Place of Origin | Jiangsu, China | Brand Name | Liftking | |
| Model Number | PNW | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Manual Hand Winch for Sale
A. Specifications:
Compact,light weight and rugged construction
Positive action brake can hold the load in any position
With CE certificate
B. Technical Specialities:
· The cost-effective solution for a wide variety of applications,can be used to pull or lift loads
· Positive action brake can hold the load in any position
· Compact,light weight and rugged construction
· Mechanical components enclosed for protection
· Baked enamel finish for corrosion protection
· Rope to drum fixing clamp provided
· Available in corrosion resistant grade 304 stainless steel
· Stainless model available in BHW range

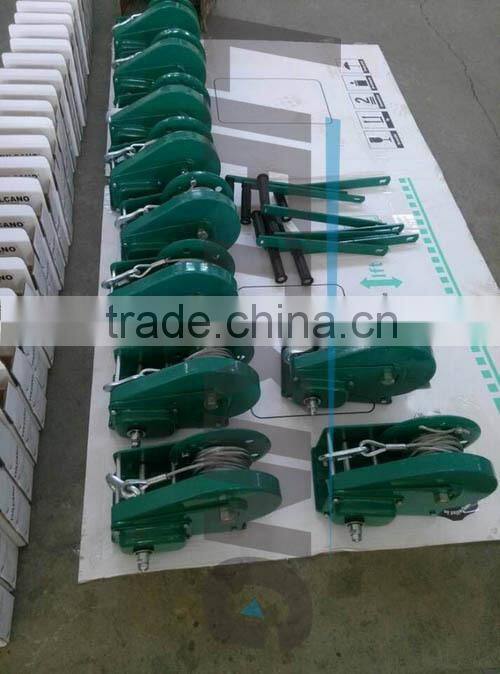

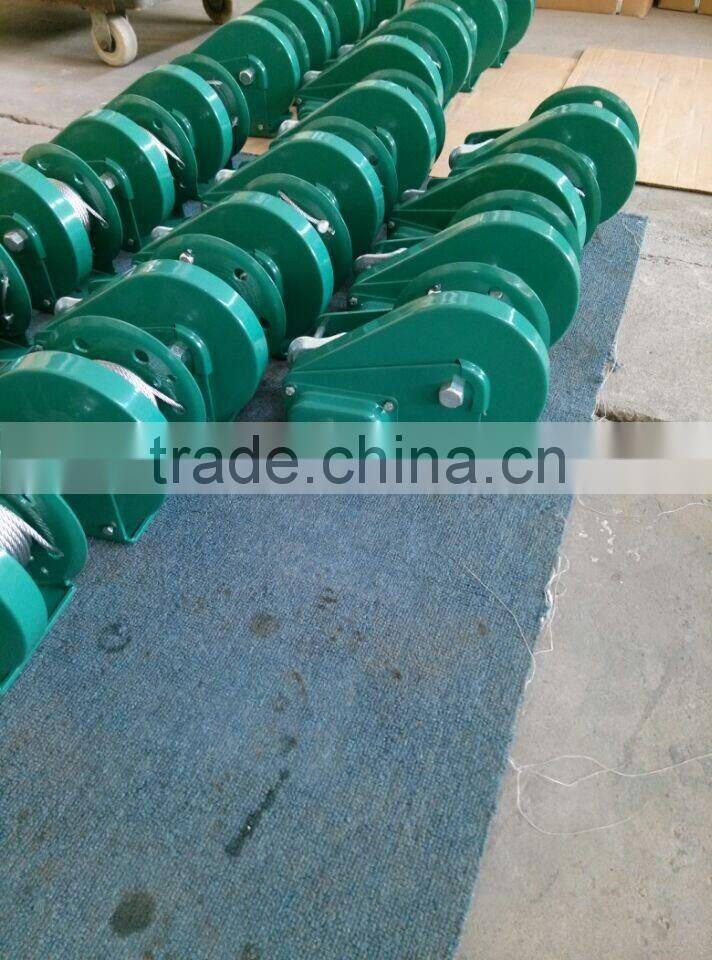

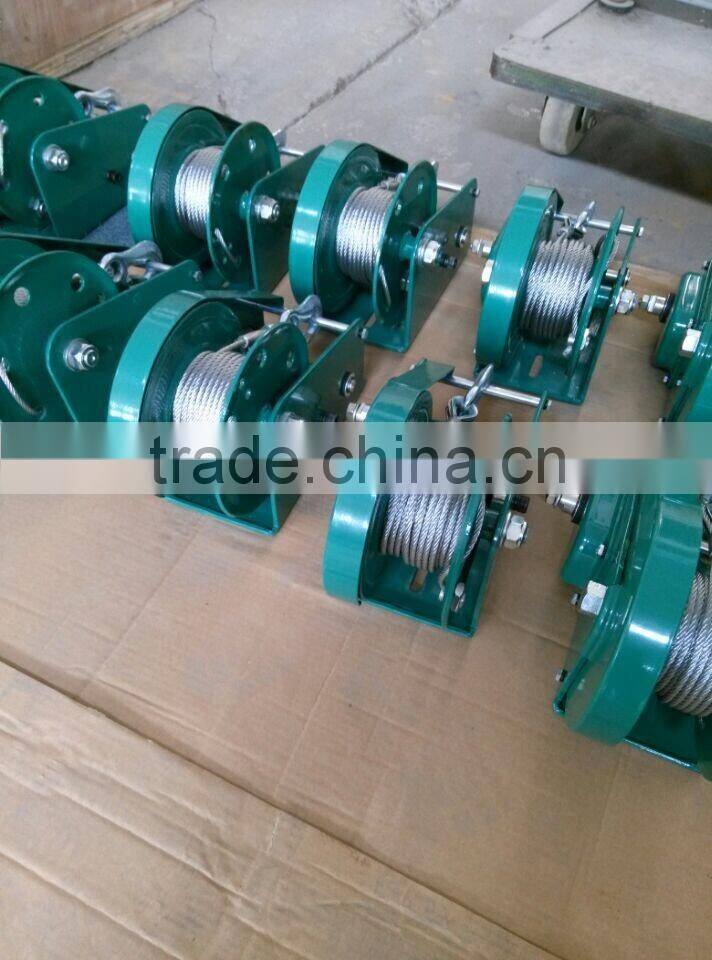

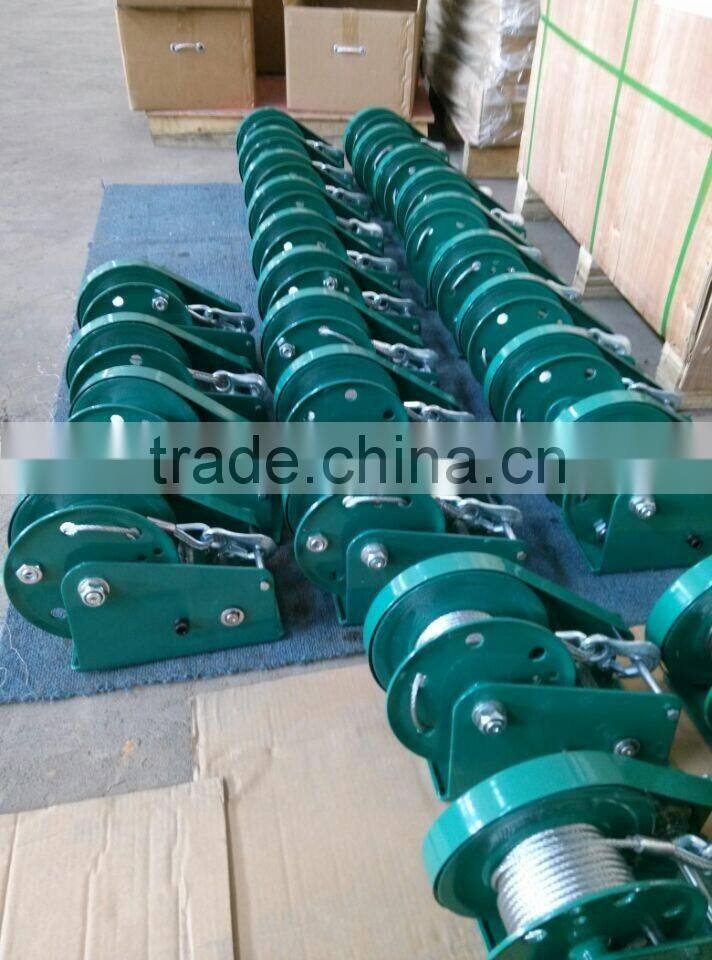

C. Pictures of our Manual Hand Winch:
D. Technical Parameters:
| Model | PNW-100 | PNW-300 | PNW-500 | PNW-1000 | PNW-2000 | PNW-3000 | |
| Capcaity 1st rope layer (kg) | 100 | 300 | 500 | 1000 | 2000 | 3000 | |
| Required Efforts 1st rope layer (kg) | 11.5 | 11 | 12 | 12 | 13 | 18 | |
| Drum Capacity (m) | 30 | 30 | 40 | 40 | 40 | 40 | |
| Drum Diameter (mm) | 48 | 60.5 | 60.5 | 76.3 | 89.1 | 101.6 | |
| Wire Cable Diameter (mm) | Φ 5 | Φ 6.3 | Φ 6.3 | Φ 8 | Φ 9 | Φ 12.5 | |
| Can Wind Per Turn (mm) | 166.5 | 72.8 | 48.4 | 21.7 | 13.6 | 18 | |
| Working Handle Length (mm) | 240 | 350 | 350 | 350 | 350 | 350 | |
| Reduction Gear Ratio | 1:1 | 2.88:1 | 4.33:1 | 12.19:1 | 22.68:1 | 22.16:1 | |
| Net Weight (kg) | 6.9 | 11.6 | 13 | 18.1 | 24 | 42.6 | |
