High Quality Waste Steam Turbine Oil Dehydration Machine

High quality waste steam turbine oil dehydration machine

Waste oil treatment device
1. rapidly and efficiently break emulsification, remove water,gas
2. whole physical processing

Brief introdution

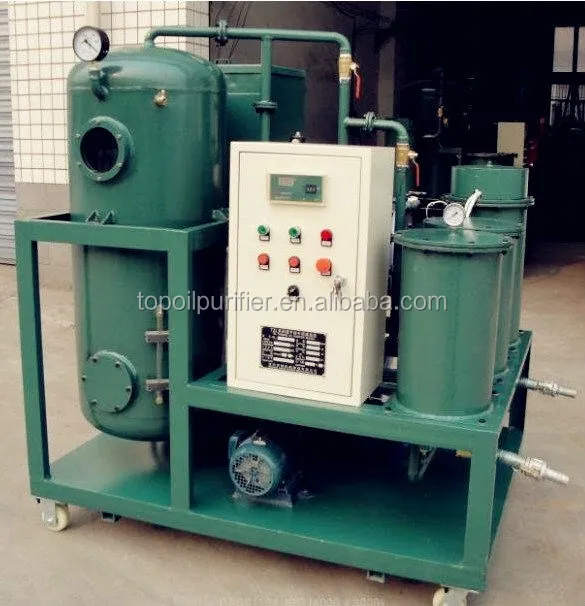

This turbine oil purifying machine is used to purify unqualified turbine oil, especially seriously emulsified turbine oil.
Combined with vacuum separating technology, TY machine can rapidly and efficiently break emulsification and remove water, gas and impurities from oil to make the oil achieve new oil's standard.

Features
1.With special polymeric materials as filter medium and vacuum separating technology, the filtration machine can rapidly and efficiently break emulsification and remove water, gas and impurities from oil to make the oil's clean.
2.On-line filtration can be carried out with turbine or water turbine.
3.Duplex stereo flash evaporation technology
4.Temperature controller to protect the machine.
5.Multi-stage precision filtration system; mesh filtration combined with molecule adsorption technology.
6.Efficient heating system to make heating uniformity and decrease power consumption.
7.Installed oil-level floating ball and double-infrared liquid level automatic controller to control the oil level and avoid the oil leaking.
8.Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, this oil filtering machine will be power off automatically.

Special features
This Oil Purifier can remove contamination down to less than 5 micron, water content down to 60 PPM, air & gases down to 0.1% and lower oxidised molecules of oil from turbine oils.
Removal of free and emulsified water prevents formation of varnish and bacteria. Turbine oil is 98% base oil and it has approximately 2% additives. By keeping the oil free from water and contamination down to less than a micron, TY Series Oil Purification Systems protects the turbine oil additives, which can then continue to perform their essential functions for a very long time thereby increasing oil life tremendously.

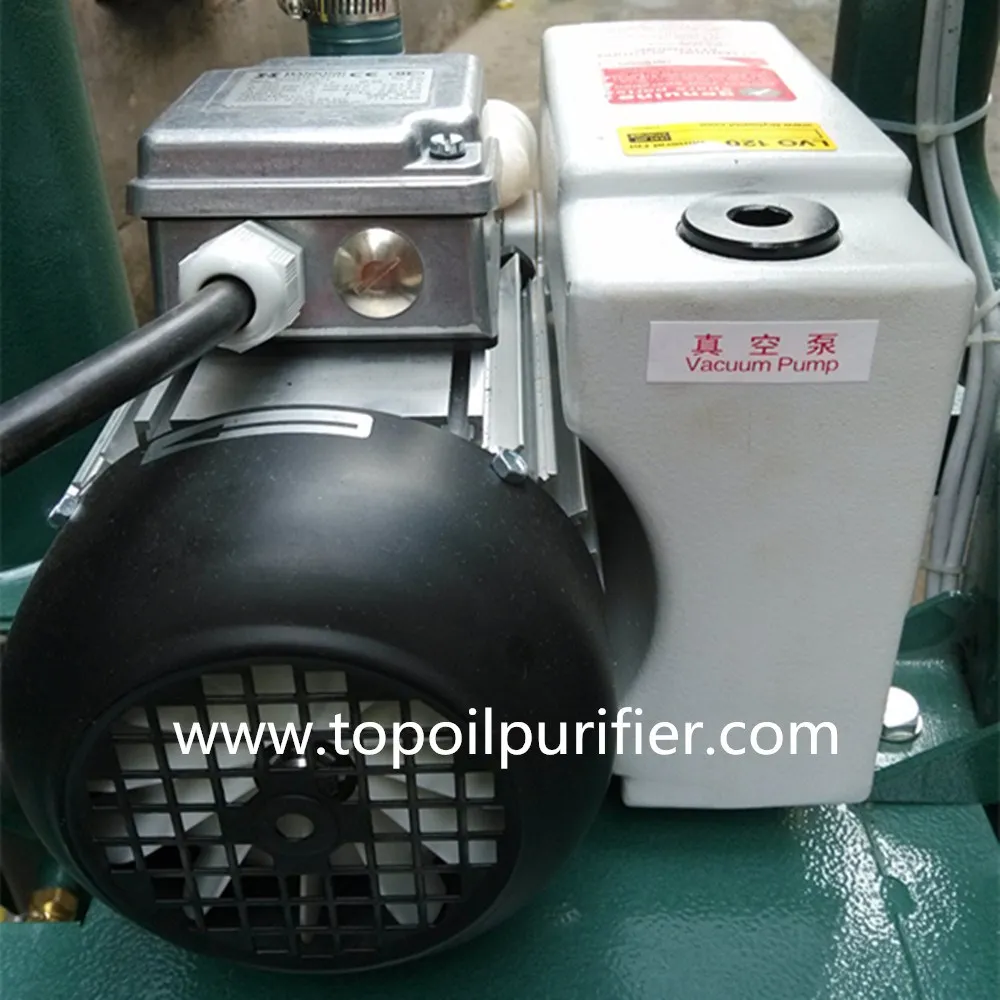

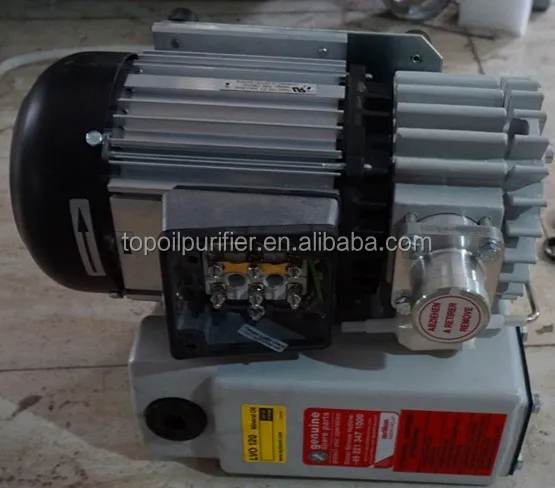

Vacuum Pump

World famous brand "LEYBOLD" & "SIEMENS" vacuum pump, compact design and variant concept, small footprint, no motor coupling, simplified maintenance and extremely silent.
Drain up vacuum at 59~71m3/h pumping speed, create a tight vacuum state for oil purification quickly and have a 10 years guaranteed service life.

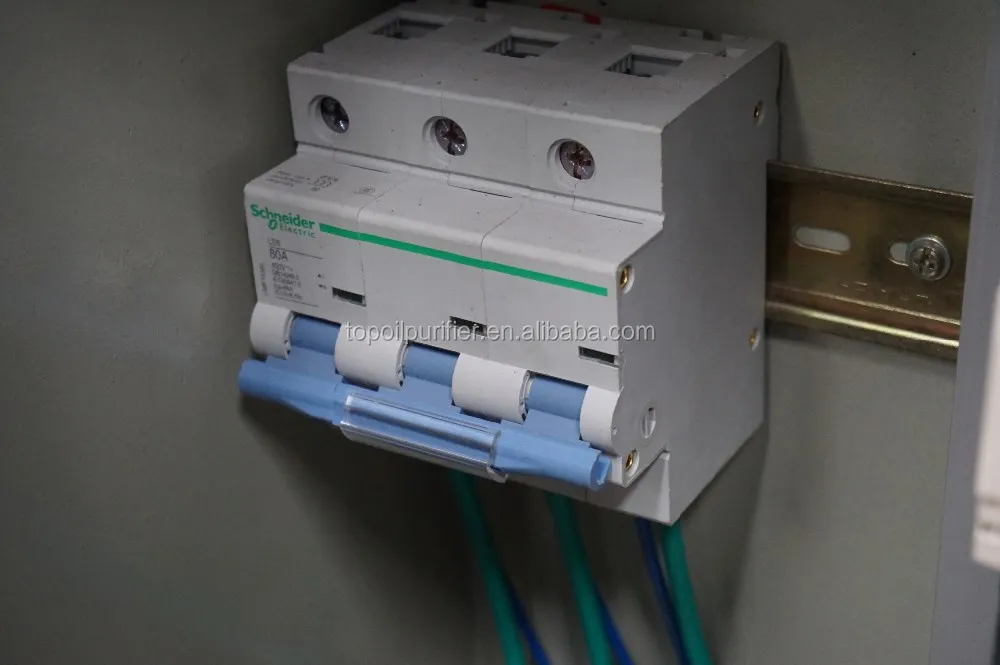

Schneider circuit breaker

Schneider electric to close, loading and open circuit loop current, under the condition of normal and can close, within the prescribed time and open circuit abnormal circuit conditions (including short circuit conditions) under the current switch devices.

Mainly to provide customers perfect solution, a full range of products and components, and thoughtful service.

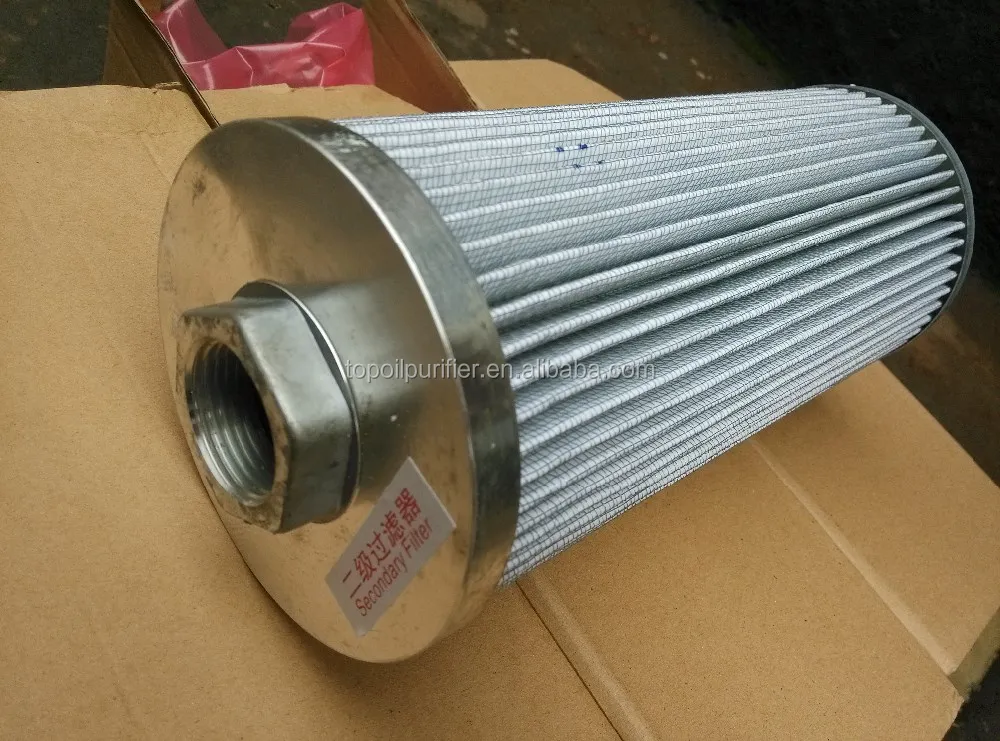

Filter element

Advanced stainless steel filter element has a very good anti-corrosion performance, high adaptability as well as perfect filtering functions.
It is washable and replaceable, can be constantly used for 5 years at least.
