Home > Products > Metal Multipurpose Machine > 6 in 1Mini Combined Machine, Mini Lathe ,Milling ,Drilling ,Wood Turning ,Jag Saw and Sanding Machine, DIY Tool

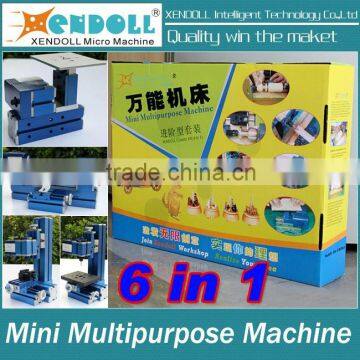

6 in 1Mini Combined Machine, Mini Lathe ,Milling ,Drilling ,Wood Turning ,Jag Saw and Sanding Machine, DIY Tool

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Rongqi
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Style	Educational Toy, Musical Toy	Material	Other, Metal
Power	Other, Power	Place of Origin	Guangdong, China
Brand Name	XENDOLL	Model Number	W40000M

Product Description

Specifications

Can be assembled into jigsaw, lathe, woodturning lathe, drilling machine, milling machine, sanding machine, and realize the fun.

6 in 1 Mini Lathe Machine; Mini Combined Machine Tool; DIY Mini Micro Lathe Machine Tool

Can be assembled into jigsaw, lathe, woodturning lathe, drilling machine, milling machine, sanding machine, and realize the functions of those machines. But it is only assembled in one of 6 kind machines at the same time; there are only one motor and headstock offered.

1.Product Details Show

Jigsaw machine:

Jagsaw Features

Wire saw to ensure absolute security, through a special design, even zigzag across the skin, it will only cause a slight vibration, a special saw blade is designed to process objects of arbitrary shape, whether it is circular and any bending of the curve can be smoothly ground saw, transformer overheating protection.

Technical indicators:

1.Quality/Safety Certifications: CE, UL (Transformer)

2.Motor Speed:20,000rpm

3.Headstock speed:2,000rpm

4.Support power:12VDC/2A/24W

5.Switching Adapter input 100V-24

6.Table size:90×90mm

7.Stroke of the jigsaw:4mm

8.Material:Carbon steel,Aluminum,ABS

Wood-Turning Lathe:

Wood-Turning Lathe Features:

The Machine main parts, such as the spindle box, motor blades, tailstock, pedestal, the slider, belt protection cover, gongs bed supports, connection piece, gear adopts full metal structure.

The handwheel with accuracy of 0.02 mm scale line, increase the accuracy of the machine tool machining .

1. Softwood and hardwood can be processed, modelling can follow one's inclinations.

2. You can use the three jaw chuck chuck (1 ~ 6 mm) or clamping workpiece, Hight of center is 25 mm . Distance of center to center is 135 mm. The color of the machine tool is composed of red and black classical collocation. if the use of specialty chassis (500mm) Canadian grown slide stroke 365mm.

Technical indicators:

1.Quality/Safety Certifications: CE, UL (Transformer)
2.Motor Speed:20,000rpm
3.Headstock speed:2,000rpm
4.Support power:12VDC/2A/24W
5.Max processing diameter: 45 mm.
6.Max processing length: 135 mm.
7.Processing materials: wood, engineering plastics, soft metal (aluminum, copper, etc.).
8.Transformer has overcurrent, overvoltage and overheating protection.
9.The handwheel with accuracy of 0.02 mm scale line, increase the accuracy of the machine tool machining.

Metal lathes mahine:

Metal Lathe Features:

The Machine main parts: such as the spindle, the tailstock, pedestal, slider, motor blades, gear protection cover, a belt connecting piece adopts full metal structure Center for 25 mm high, center distance 135 mm, usually when turning metal lathe speed to 2000 r/min.

With high speed steel, tool material, can be soft, nonferrous and precious metal processing, and use the middle piece of heightening, more expanded to 50 mm diameter range. The color of the machine tool is composed of blue and black classical collocation.

Technical indicators:

1.Quality/Safety Certifications: CE, UL (Transformer)

2.Motor Speed:20,000rpm

3.Headstock speed:2,000rpm

4.Support power:12VDC/2A/24W

5.Tree 3-jaw chuck(self-centering)

6.Max Cutting diameter:20mm

7.Center distance:135mm

Metal Milling Machine:

Mini Milling Machine Features:

1 tool is a milling cutter, milling machine, milling cutter and the side of the front blade, has certain risk, so be sure to use under the guidance of professional personage.

2, machine main parts: such as the spindle, the tailstock, pedestal, slider, motor blades, connection piece, gear adopts full metal structure.

3, the color of the machine tool is composed of blue and black classical collocation.

Technical indicators:

1.Quality/Safety Certifications: CE, UL (Transformer)

2.Motor Speed:20,000rpm

3.Headstock speed:2,000rpm

4.Support power:12VDC/2A/24W

5.Slide travel:35 and 45mm

6.Vice capacity:25×35mm

Metal Drilling machine:

Mini Metal Drilling Machine Features:

the machine main parts, such as the spindle, the tailstock, pedestal, slider, motor blades, connection piece, drill press rocker, drill the bedplate, gear and so on all adopts full metal structure, the color of the machine tool is composed of blueand black classical collocation.

Applicable processing: wood, soft metal (copper, aluminum, etc.), organic glass, plastic, etc.

Technical indicators:

1.Quality/Safety Certifications: CE, UL (Transformer)

2.Motor Speed:20,000rpm

3.Headstock speed:2,000rpm

4.Support power:12VDC/2A/24W

5.Slide travel:35 and 45mm

6.Table size:120×100mm

Metal Sanding Machine:

Mini Metal Sanding Machine features:

1. Can be used for polishing, grinding, also can undertake all kinds of handheld Angle grinding.
2. Center for 25 mm high, sand grain size is commonly 100 #, can choose according to different workpiece machined surface and abrasive paper. The color of the machine tool is composed of blue and black classical collocation.

Technical indicators:

1.Quality/Safety Certifications: CE, UL (Transformer)
2.Motor Speed:20,000rpm
3.Headstock speed:2,000rpm
4.Support power:12VDC/2A/24W
5.Working area:123×100mm
6.The item can process everything that is used in model making
