Dust-proofed Baffle Big Bags

1. PRODUCT NAME FIBC(big bag)

2. SIZE(L*W*H) 1000mm*1000mm*1100mm

3 .MATERIAL(Body of Bags) virgin grade polypropylene

 4. FILLING SPOUT (Inlet Cover) 400mm(DIAM.)*500mm(H)

5. DISCHARGE SPOUT(Outlet Cover) 400mm(DIAM.)*500mm(H), with star closure

 6. LIFTING LOOP 4 LOOPS, 7cm width

7. DOCUMENT POCKET yes, one A4

8. SWL(SAFE WORKING LOAD)1000kg

9 .TEXTILE(g/m2) Body(around) 170+30g/m2

10.COLOR OF BAG white

11 .PRINTING ON BAG to client's demand

12 .LINER PE; no

13 .COATING yes

14 .UV PROTECTION yes

 15.SAFETY FACTOR 5:1

16. inside the bags with 4pcs baffles

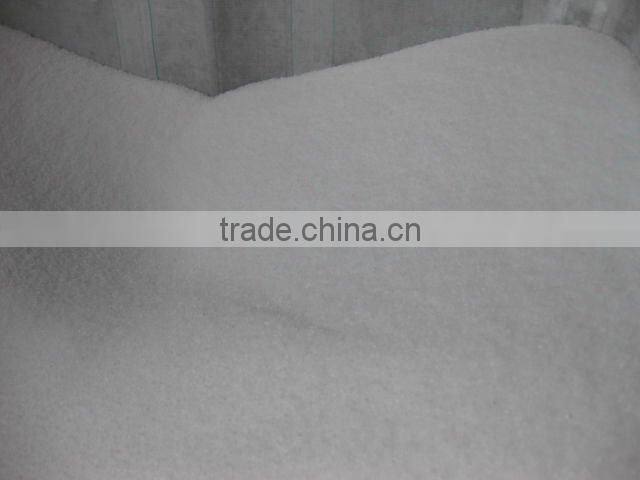

17. all seams with double filler cords for dust-proof; the loop area with felt

production Flow

                                               pp resin

                                            ↓

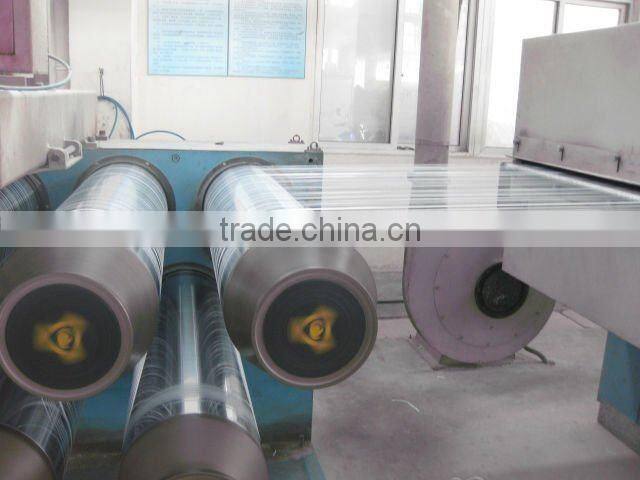

                                        extrusion

                                                    ↓

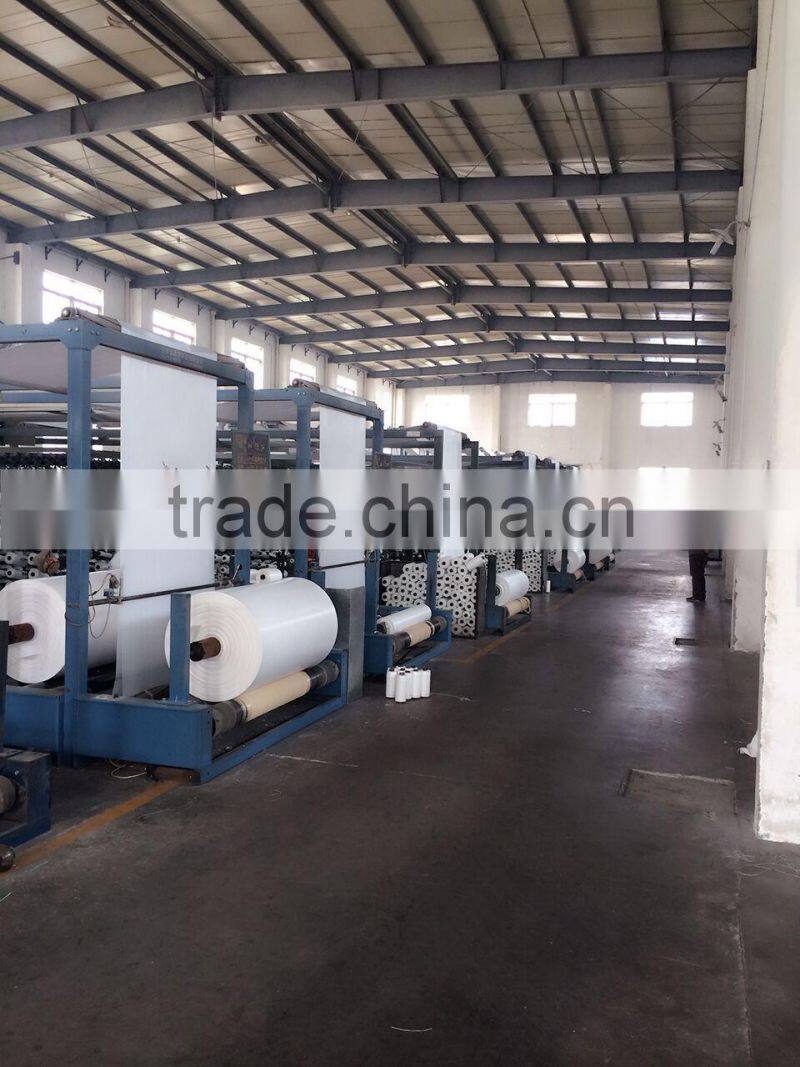

                                               weaving

                                    ↓

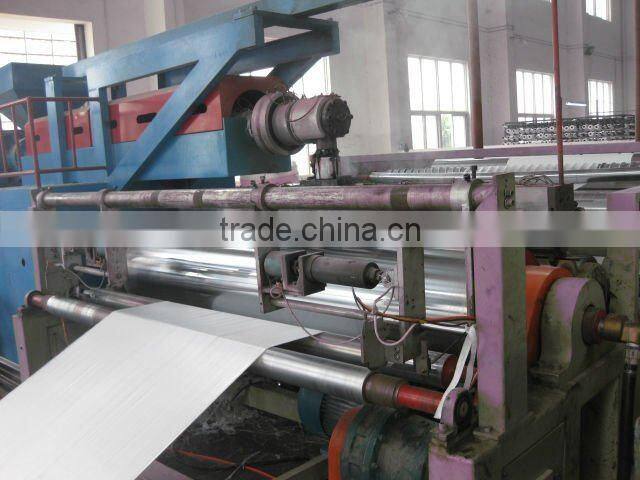

                              coating

                                          ↓

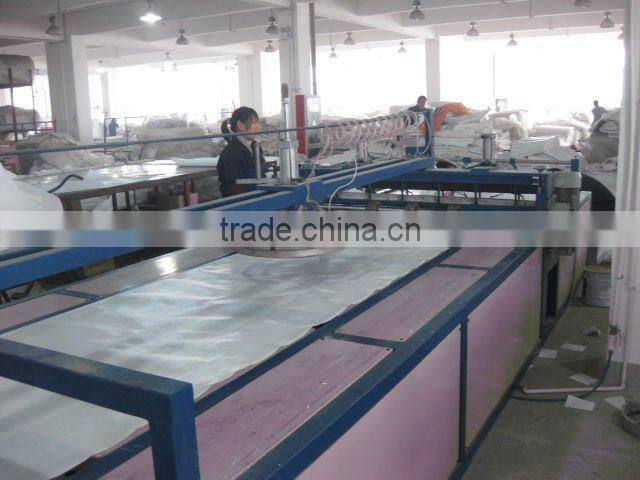

                                   cutting

                                                    ↓

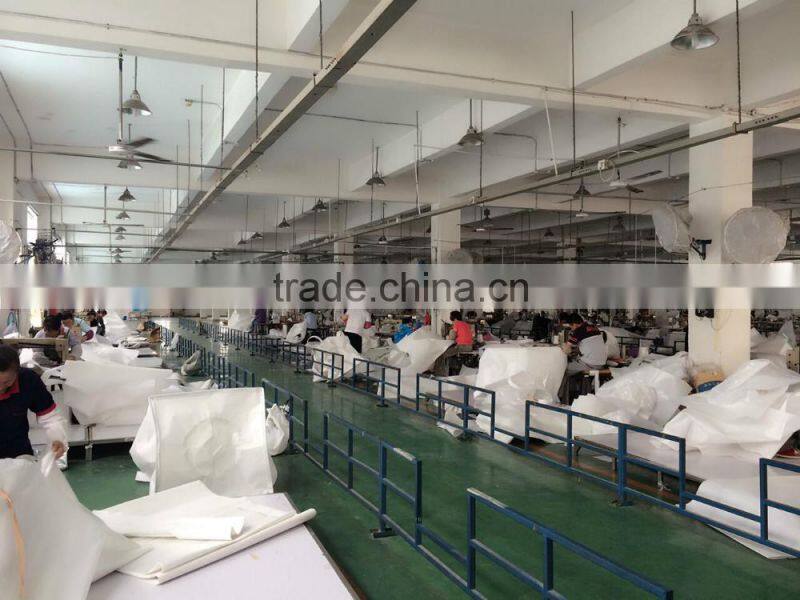

                                                    sewing

                                                      ↓

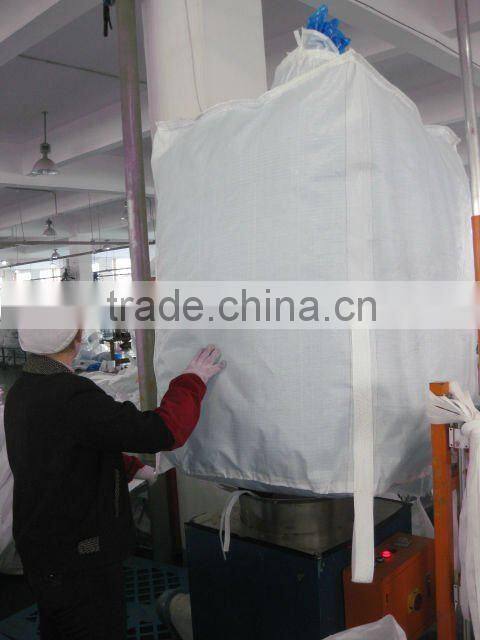

inspection

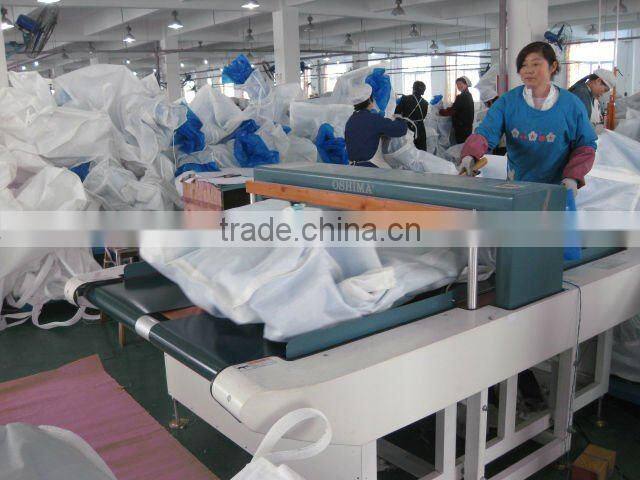

     cleaning                                                    metal detector

                                                          ↓

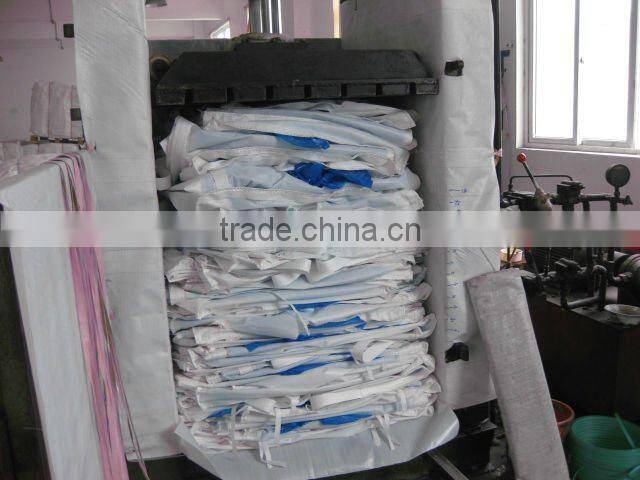

                                                        packing

                                                          ↓

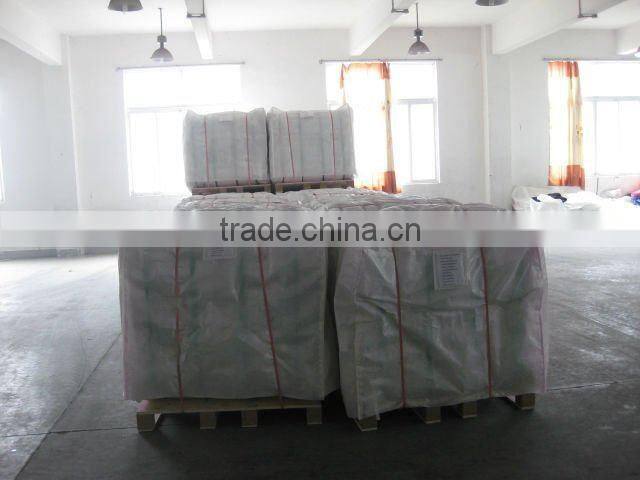

                                                       put in store
