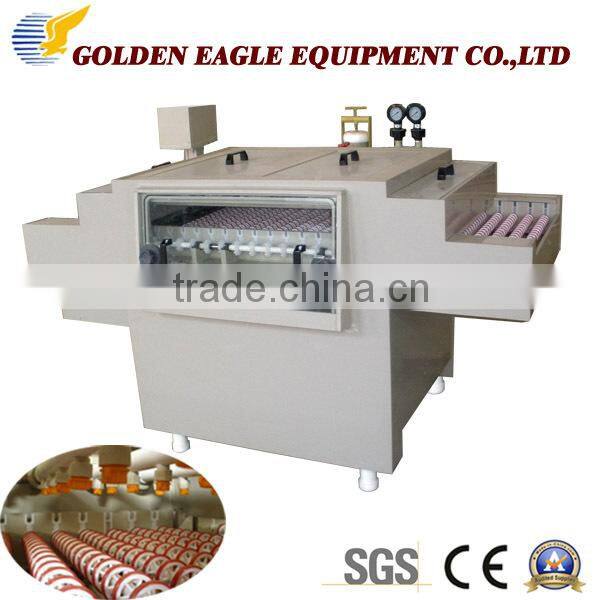

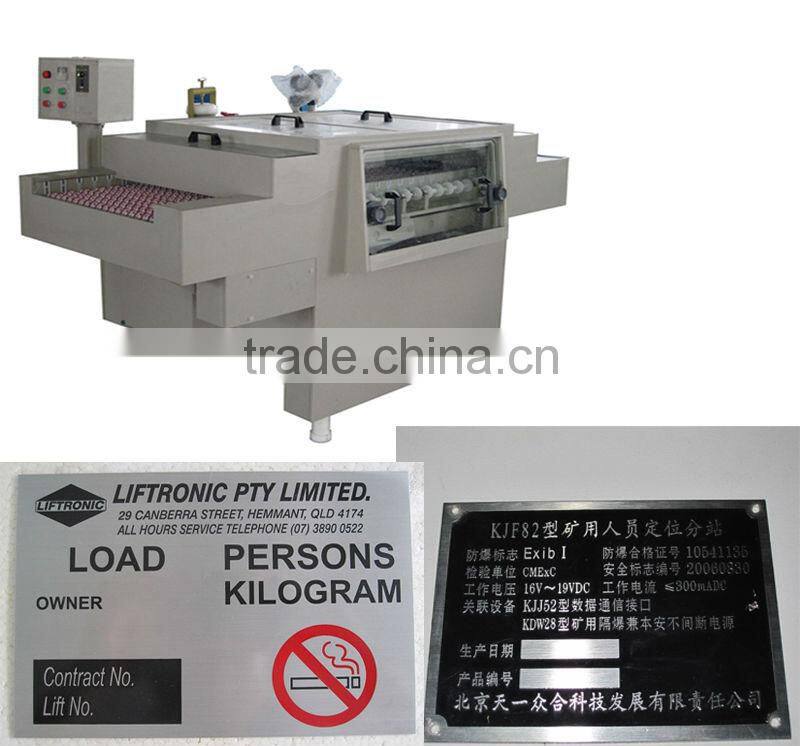

Professional Automatic Photochemical Etching Machine

Model

GE-S650

Power

5.5KW/220V/50HZ

Working width

650mm

Etching area

650*1000mm

Etched type

Double Spray

Working Temperature

37~45°C

Heat System

Titanium,3KW

Cool System

PE cooling Pipe,25 meter

Vertical Pump

2.2KW/220V/50HZ

Spray pipe

14pcs ,for up and down

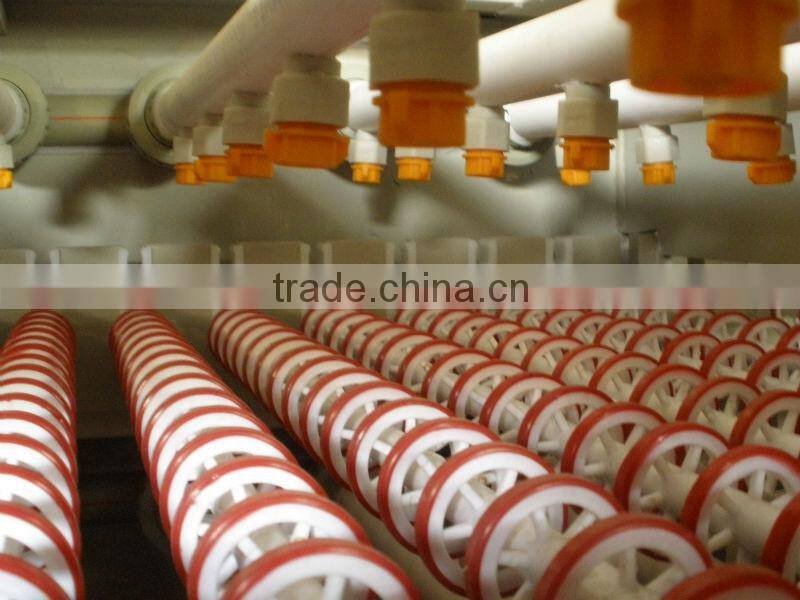

Nozzles

Fan-shaped,91nozzles

Tank volume

200Liters

Machine Size

2150*1350*1250mm

Weight

About 450kgs

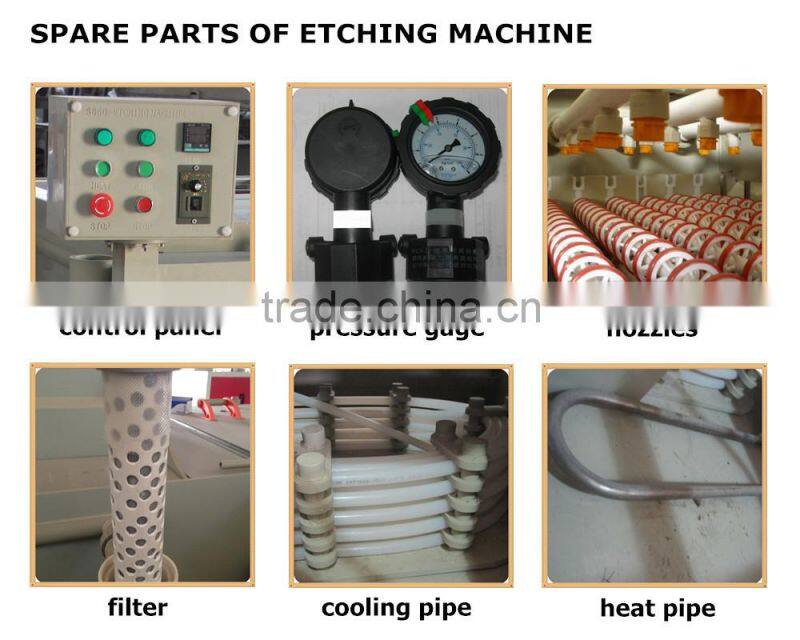

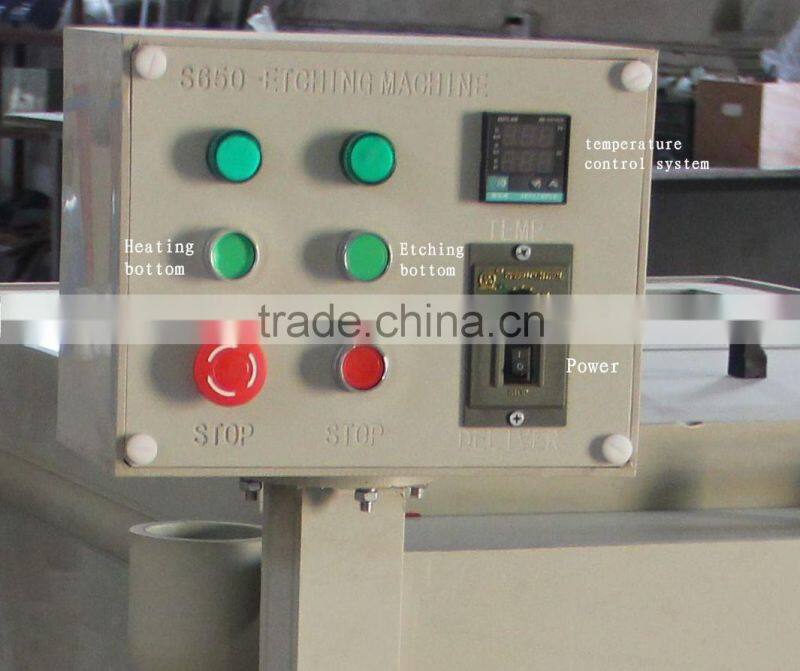

Automatic Control System:

Speed adjust system                      Pressure Adjust System

Temperature control system           High temperatures resist (0~100°C) German PP material

Double Net Filter System                Long times Etching Ability

Introduction

1. This metal etching machine is acid photo chemical etching equipment, etchant solution is ferric chloride.

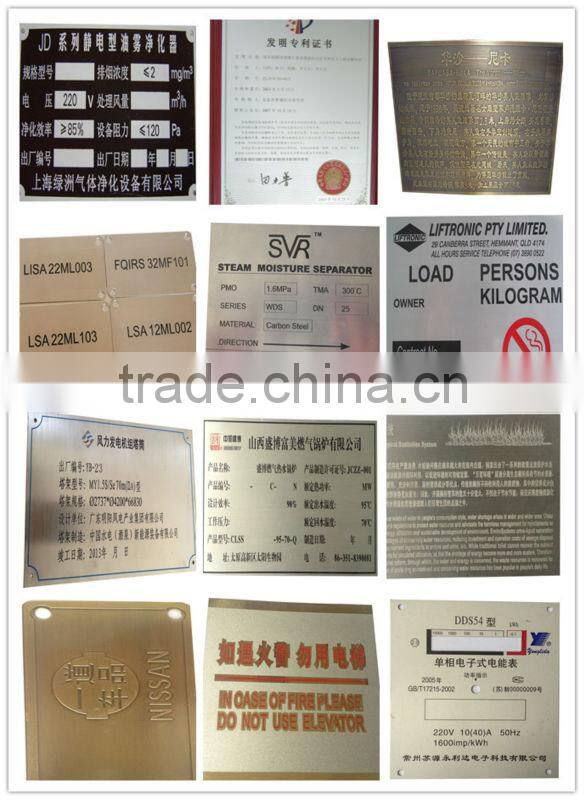

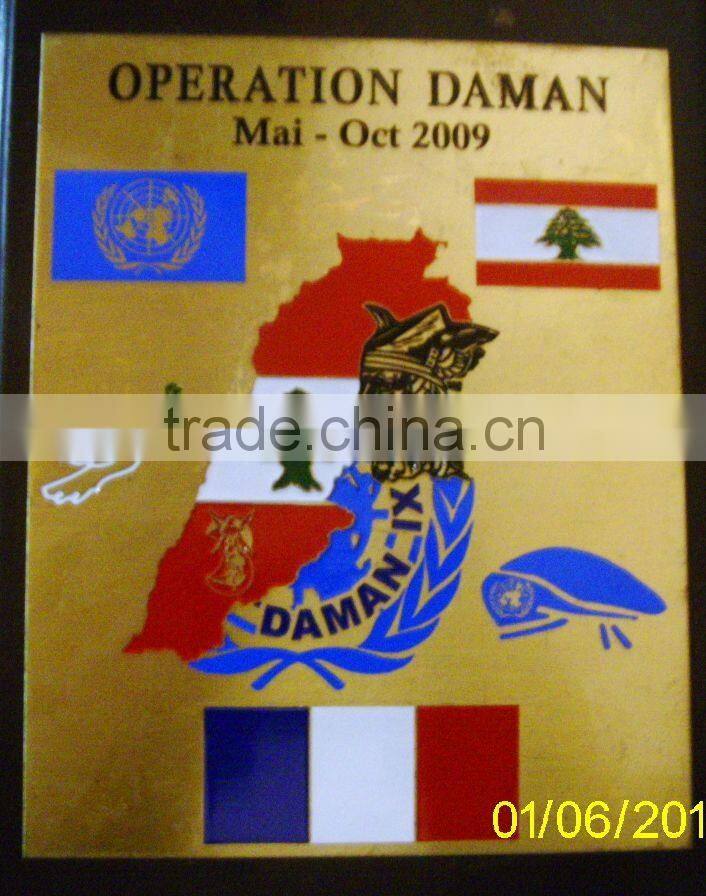

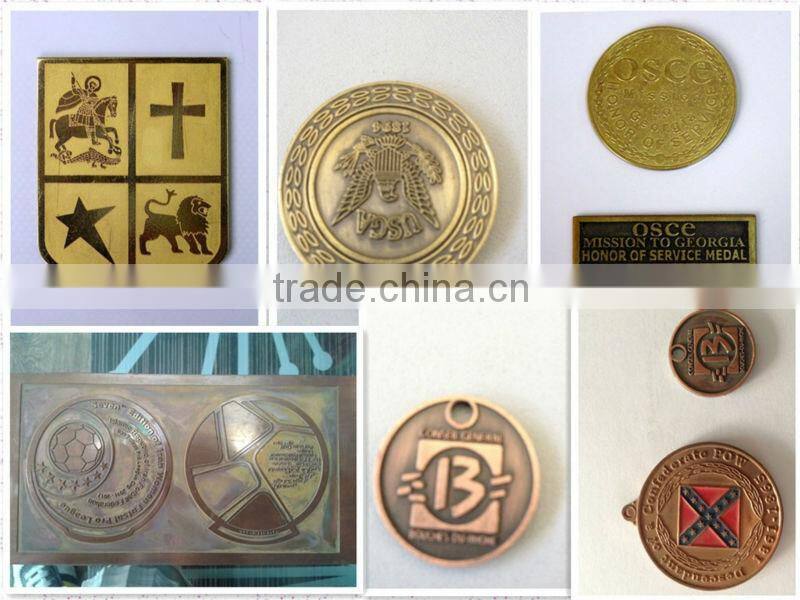

2. This machine can make nameplates,signs,tags,logos,medals,tags,stencils gobos,metal crafts and so on.

3. Materials can be Steel, Stainless steel, Copper, Brass, Aluminum,titanium and so on.

4. Machine is double side spraying,we can control separately for up nozzles or bottom nozzles.

5. This machine can also do developer and stripper,only put different chemical in tank.

6. Machine material is German PP plate,can resist high temperature 100 degrees.
