Low Elongation Steel Cord Conveyor Belt from China

FOB Price

US$ 1 - 300 / Meter

100 Meters(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	LL
Model Number	LL-SC

Product Description

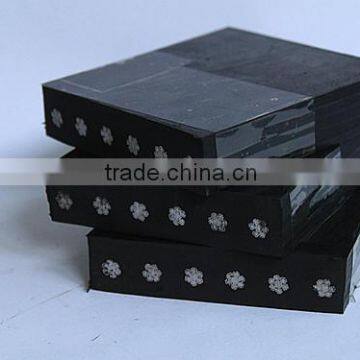

Low Elongation Steel Cord Conveyor Belt from China

Product Description

Application:

Strong tensile strength Steel Cord conveyor belt are widely used in distributed occasion, cement, coal mines, quarries, mining, power plants, metallurgy, ports and chemical industry, etc. It is popularly applied to main transmission lines, long overland transportation, laneway transportation, ship loader, tilt transmission, the transmission of other demanding requirements.

FEATURES:

1. High tensile strength:Steel cord conveyor belt is suitable for large span,long distance transportation of materials

2. Small elongation in use:It need only a very short take-up stroke distance.

3. Small diameter of drive pulley:Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue.Therefore,drive pulley of smaller diameter can be used to make the equipment smaller.

4.High adhesion between rubber and steel cord:The steel cords are coated with zinc on their surface,and also the rubber used has the property of qood adhesion with steel cords.Therefore,the rubber is tighrly adhered to the steel cords and is resistant to shock and difficult to drop,so the rubber belts are long in life.

Specification:

ST630	ST800	ST1000	ST1250	ST1600	ST2000	ST2500	ST3150	ST3500	ST4000	ST4500	ST5000	ST5400	ST6300
Tensile Strength (N/mm)	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400	6300
Max Diameter of Cord(mm)	3	3.5	4	4.5	5	6	7.5	8.1	8.6	8.9/	9.7	10.9	11.3	12.3
Pitch of Cord(mm)	10	10	12	12	12	12	15	15	15	15	16	17	17	18
Top Rubber Cover Thickness (mm)	5	5	6	6	6	8	8	8	8	8	8	8.5	9	10
Bottom Rubber Cover Thickness (mm)	5	5	6	6	6	8	8	8	8	8	8	8.5	9	10

Width (mm)	Cord Number
800	75	75	63	63	63	63	50	50	50
1000	95	95	79	79	79	79	64	64	64	64	59	55	55	54
1200	113	113	94	94	94	94	76	76	77	77	71	66	66	63
1400	133	133	111	111	111	111	89	89	90	90	84	78	78	74
1600	151	151	126	126	126	126	101	101	104	104	96	90	90	85
1800		171	143	143	143	143	114	114	117	117	109	102	102	96
2000			159	159	159	159	128	128	130	130	121	113	113	107
2200						176	141	141	144	144	134	125	125	118
2400						193	155	155	157	157	146	137	137	129
2600						209	168	168	170	170	159	149	149	140
2800									184	184	171	161	161

Cover rubber property and grades :

Test items		Property indexes
		GB9770-2001				DIN22131
		D	H	L	P	W	X	Y
Tdnsile strngth	Mpa >=	18	25	20	14	18	25	20
Pull to break the elongation rate	% >=	400	450	400	350	400	450	400
after aging(70°C,7D) Change rate of tensile strength Change rate of elongation	%	-25~+25	-25~+25	-25~+25	25~+25	-25~+25	-25~+25	-25~+25
Abrasion	<=	90MM³	120MM³	150MM³	200MM³	90MM³	120MM³	150mm³
