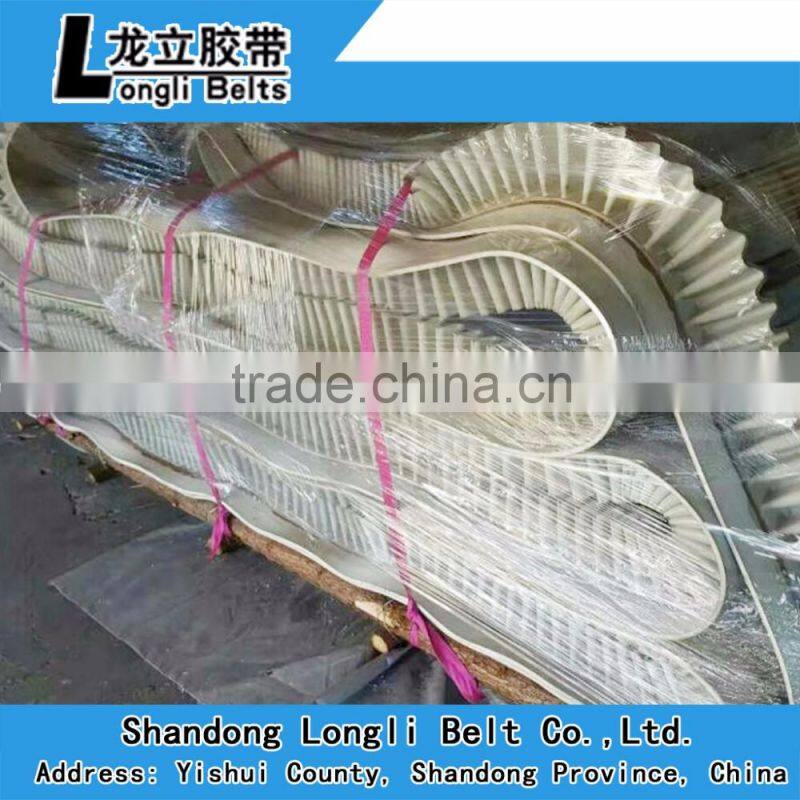

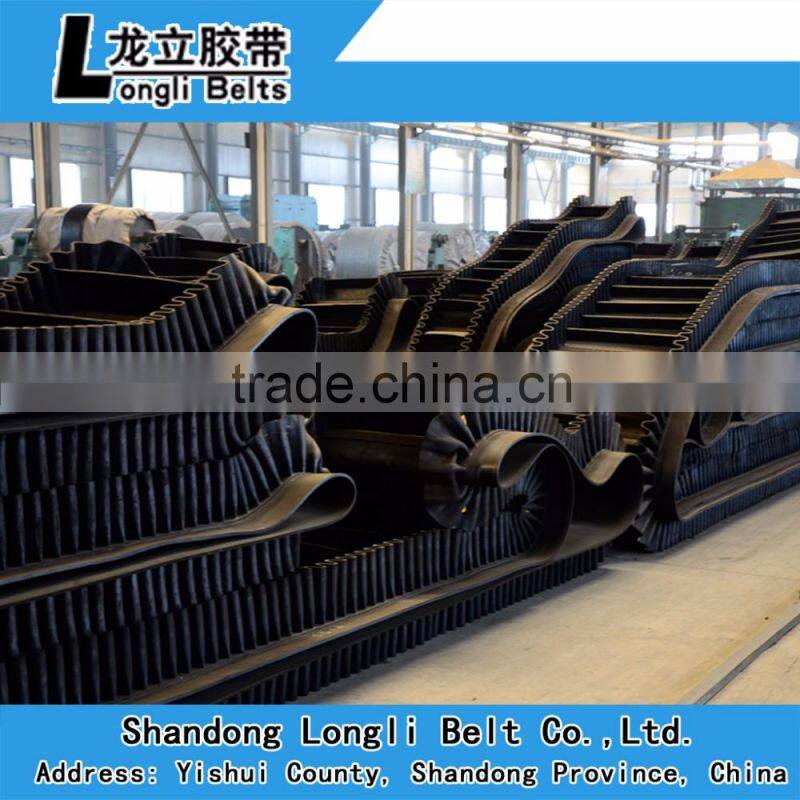

Sidewall belt conveyor /belt for coal industry conveyor

Applying for large angle transporting,the maximum angle is 90 degree.

Application:

Applying for large angle transporting,the maximum angle is 90°.

Characteristics:

1.      To save time

Because of large angle transporting,thus can be shortened the horizontal length and save the space of laying area.

2.       Strong transporting capacity

Compared with common conveyor belt,with large carrying cross section,has stronger transporting capacity than same width conveyor belt.

3.       Without sidewall plate

Because without sidewall plate,thus avoid the local abrasion.

4.       Impossible to use small roller

Impossible to use the traditional size of small roller.

5.       Because the baseband uses special canvas core to improve the canvas,then improve the anti-broken ability of belt at the same time.

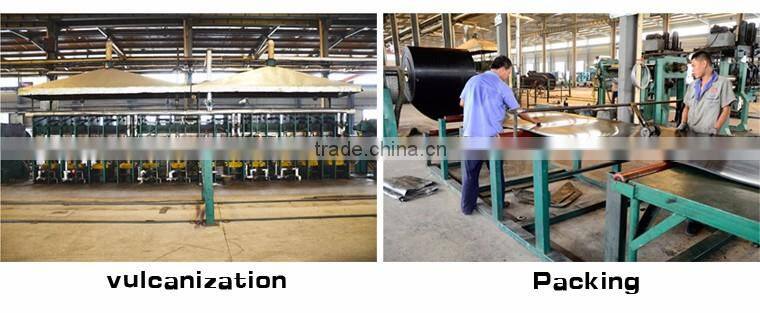

6.       The sidewall plate and diaphragm are adhesive with baseband through heat vulcanization method,thus ensure the bonding strength.

Baseband:

Baseband is consisted of upper rubber,lower rubber,core and transverse rigid layer.Upper rubber thickness is 3-6mm,the lower rubber thickness is 1.5-4.5mm.The core supports tensile force,the core are:Cotton(CC),Nylon,EP.To improve the transverse rigid ability,it has added special reinforced layers in the core,named transverse rigid layer.Baseband has the same width with common belt.

Cleat:

The cleat is produced by fiber load materials.With large anti-shock ability and impact resistance,thus avoid the distortion of stress.The cleat has T,TS,C,TC,TCS five types.TS and TCS types are mosaic pattern.The conveyor angle is small than 40°,using T or TS cleat;the conveyor angle is bigger than 40°,using C,TC or TCS cleat.

Corrugated sidewall plate:

According to the carrying capacity,there are three types corrugated sidewall:Light type(N),Medium type(S),Heavy type(ES).
