Home > Products > Blow molding machine > HDPE plastic oil barrel blow molding machine

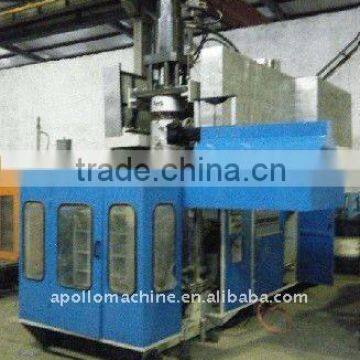

HDPE plastic oil barrel blow molding machine
- FOB Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PP | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | APOLLO | Model Number | ABLD75 | |
| Certification | CE |
Product Description
Specifications
adopt advanced technologygood quality
good after-sale service
competitive price
ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the duct volume is up to 25L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head,MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Technical Parameters: ( ABLD75 )
Max. Product volume | 25 liters |
Output capacity | 80~120pc/h |
Screw diameter | 75mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 30 KW |
Screw heating capacity | 16 KW |
No.of heating zone | 4 zones |
Output of HDPE | 100 KG/H |
Oil pump drive power | 22 KW |
Clamping force | 210 KN |
Max.size of mold | 550X650mm |
Mold stroke | 350-780mm |
Max.die diameter | 280mm |
Die heating power | 5.3 KW |
Die heating segments | 4 zones |
Blowing pressure | 0.8mpa |
Air volume | 0.8 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 60 L/MIN |
