Product Details
| Place of Origin | Shandong, China | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

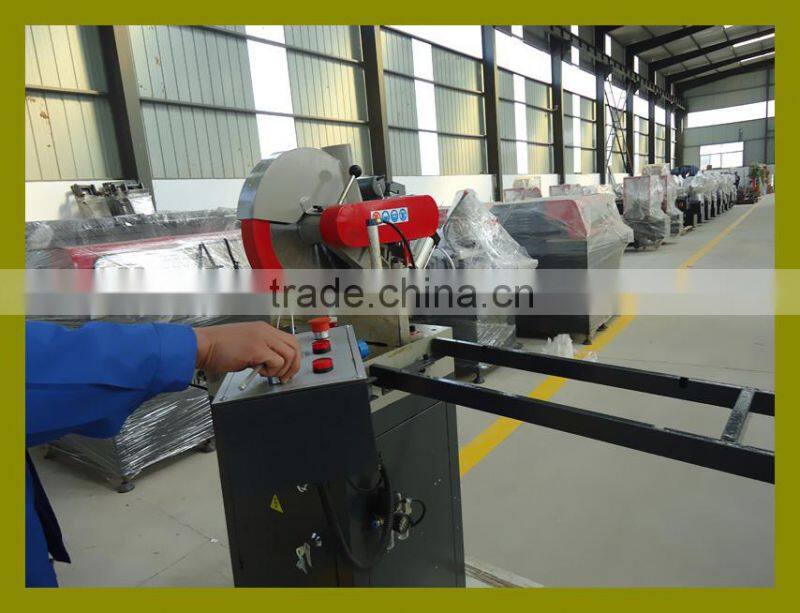

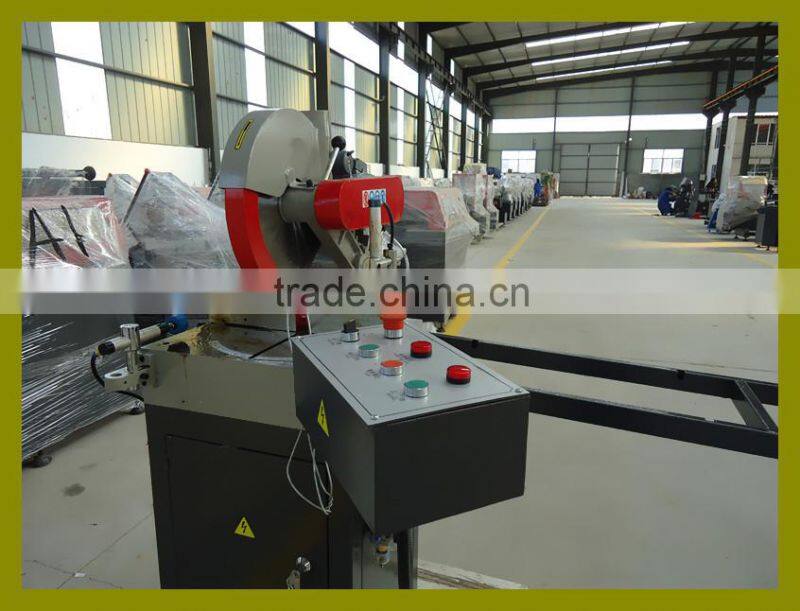

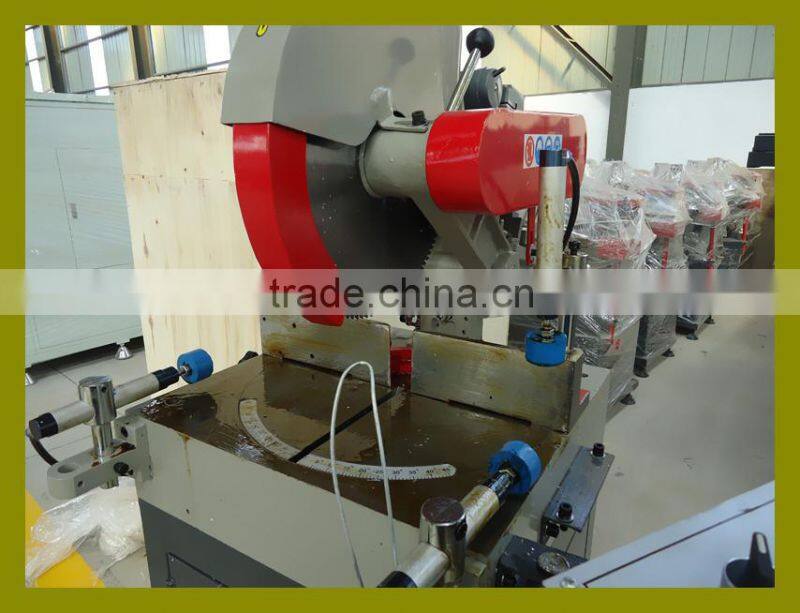

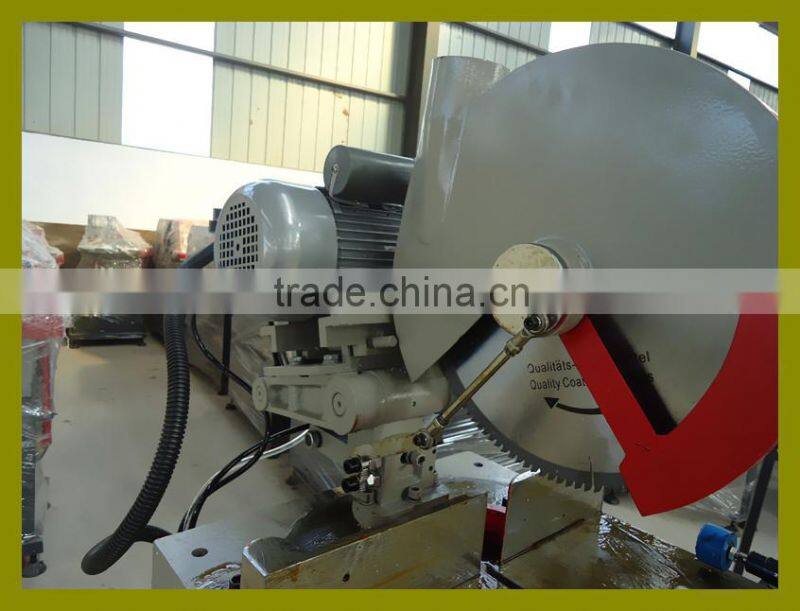

Single head aluminum&PVC cutting saw (DSJ02)
1). This machine is used for processing the PVC/UPVC/Vinyl/plastic profiles at angles of -45º ~90º ~45º , the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.
2).Note: This cutting saw is mainly used in processing PVC/UPVC/plastic/Vinyl window door, it can make about 15-20 pieces windows doors per 8 hours.
3).We can make the machine according to your true local power supply.
4).Parts brand:
------Button and contactor: Schneider
-----Linear guide:ABBA,TAIWAN
-----SAW Blade:WAGEN,JAPAN
Technical parameters:
Model number | DSJ02 |
Saw cutting(W H) | 160mm 120mm |
Main motor power | 1.1KW |
Main motor rotation speed | 2840 r/min |
Saw blade dimension | 350 30 |
Saw blade swing angle | 90~45 |
Working voltage | 380V 50Hz |
Repeat locating length | ≤0.05mm |
Angle cutting tolerance | ±5' |
Planeness of cutting surface | ≤0.10mm |
Cutting profile surface roughness | Ra 12.5Um |
Overall dimension(L*W*H) | 800*900*1300mm |
Machine weight(about) | 260KG |
Jinan better machinery Company Limited :

certification:
contact information:
after sale service:
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 2 years (24 months), the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you
