CE Approved 1~5L HDPE Bottles Jerry Cans Blow Molding Machine
- ShangHai
- T/T
You May Like
-
Automatic Chemical Bottles Jerry Cans Blow Molding Machine HDPE (1L~5L)
-
Fully Automatic Hollow Blow Molding Machine
-
Automatic Sea Ball Blow Molding Machine Bottle Moulding Machine
-
Automatic Sea Ball Blow Molding Machine
-
Plastic Drums Extrusion Blow Molding Machine Bottle Making Machine
-
Plastic Sea Ball Blow Molding Machine
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | Apollo | Model Number | ABLB65II | |
| Voltage | 220V/380V | Power(W) | 22KW | |
| Dimension(L*W*H) | 3.1X1.5X2.7M | Weight | 5.5TON | |
| Certification | CE/SGS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1~5L HDPE bottle blow molding machineSuitable for 1~5L bottles
Japan&Taiwan technology.
Stable movement & reliable
CE pass
1~5L HDPE bottle blow molding machine
blow molding machine ABLB65II
Products:

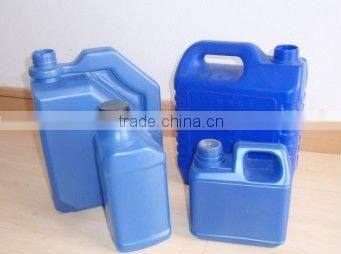

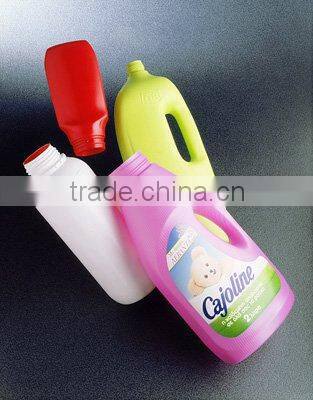

This type of machine is suitable to produce different shapes of plastic bottles from 500ml to 5L.

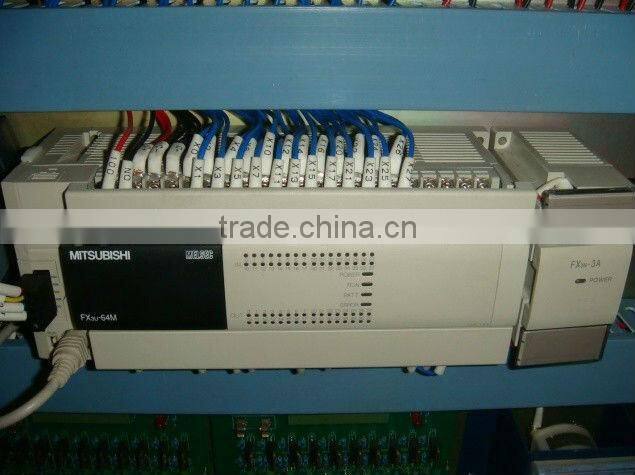

Adopt Mitsubishi PLC from Japan
Contactor use Schneider from France
Most of spareparts of hydraulic system and pneumatic system are imported from Japan,Korea,France and Taiwan,china to ensure the quality of the machine.
Related technical parameters:
Features: (ABLB65II)
Max. Product volume | 5 liters |
Dry cycle | 800X2pc/h |
Screw diameter | 65mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 18.5 KW |
Screw heating capacity | 5.7 KW |
No.of heating zone | 3 zones |
Output of HDPE | 80 KG/H |
Oil pump drive power | 7.5 KW |
Clamping force | 45 KN |
Max.size of mold | 148-508mm |
Mold stroke | 320X360mm |
Max.die diameter | 140mm |
Blow pressure | 0.6mpa |
Air volume | 0.7 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 65 L/MIN |
electronic parts |
|
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | HuiBang PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN MEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts |
|
Name | Trader |
Oil pump | TAIWAN HIGH-TECH |
Valve | TAIWAN JINSHUN |
Oil pump and connection | TAIWAN JINSHUN |
Sealed part | HALLITE |
air control system |
|
Name | Trader |
Cylinder | AIRTAC |
Air Valve | JELPC |
