15-30 Liter HDPE Drum Blow Molding Machine in 2014
- FOB SHANGHAI
- T/T
You May Like
-
20L Liter HDPE Drum Blow Molding Machine in 2014 NEW
-
16 Liter HDPE Drum Blow Molding Machine
-
15-30 Liter HDPE Drum Blow Molding Machine Hot Sale
-
25 Liter HDPE Drum Blow Molding Machine in 2014
-
5 Gallon Water Bottle Blow Molding Machine/china Supplier Plastic Blow Molding Machine
-
Chinese Plastic Brums Barrels Tool Cabinet Blow Molding Machine
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | 15-30 liter HDPE drum blow molding machine in 2014 | Model Number | ABLD80 | |
| Voltage | 220V/380V/415V | Power(W) | 43KW | |
| Dimension(L*W*H) | 4.1x2.2x3.5M | Weight | 11TON | |
| Certification | CE/SGS | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
15-30 liter HDPE drum blow molding machine in 2014good after service
excellent production team
safety production
15-30 liter bottle blow molding machine in 2014
Model No.: ABLD80(single station single die head)
ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the duct volume is up to 25L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head,MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Spare parts:
Main parts of Machine | Picture | Explanation |

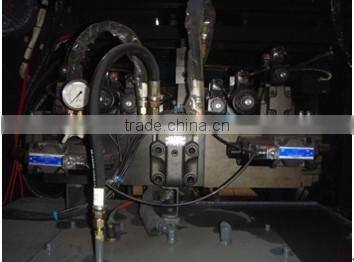

Oil Pump |
|
Oil pump From Japan YUKEN driving the machine |

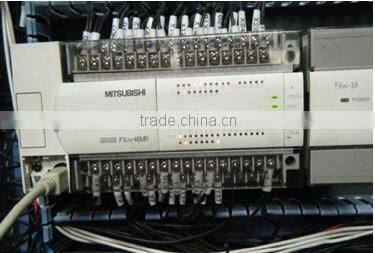

Computer control system (PLC) | |
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |

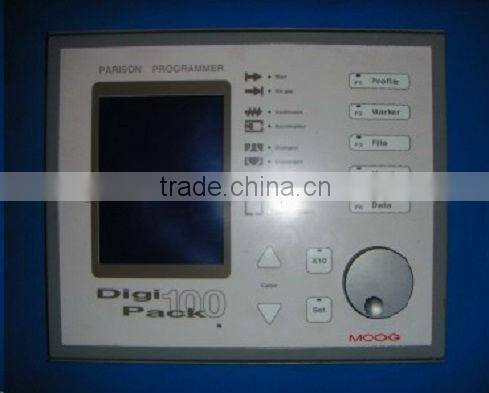

Parison controllor | |
MOOG parison Controllor Control the thickness of products |

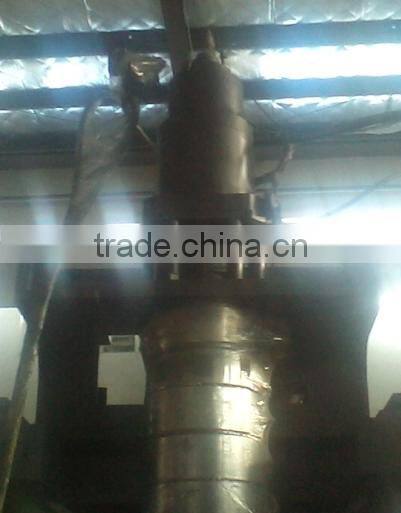

Die head | |
Accumulation die head |

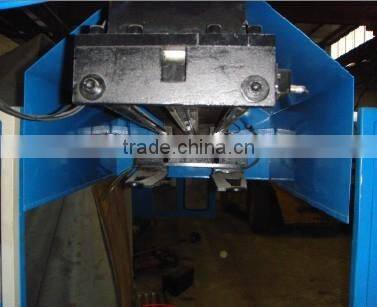

Manipulator | |
Manipulator will Take the finished Product out automatically |
Electric Cabinet | |
This part is the full electric components of the machine |
If you are interested in our product and need more information, please contact me without hesitation.
Ms. Haidee Zhang
MOB: +0086-13915462819
Tel: +0086-512 82593279
Fax: +0086-512 58426179
Address: Hongqi Bridge, Tianzhuang Village of Fenghuang Town, Zhangjiagang City, Jiangsu Province, China.
