China Suppliers Aluminum Window and Door CNC Corner Profile Cutting Machine
- Qingdao or any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Single Head Aluminum Window and Door Cutting Machine
-
Aluminum Winow Corner Connector Cutting Machine
-
Single Head Copy Router Milling Aluminium Window Machine
-
Single Head Copy Router Machine for Aluminum Profile
-
BETTER Single Head Copy Router Aluminum and Pvc Window Machines
-
Hot Selling High Precision Copy Router Machine for Aluminum Window
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Better | Model Number | LJJ-CNC-500 | |
| Voltage | as request | Rated Power | 3kw | |
| Dimension(L*W*H) | 2600*1600*1500mm | Weight | 650KG | |
| Certification | CE&ISO | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

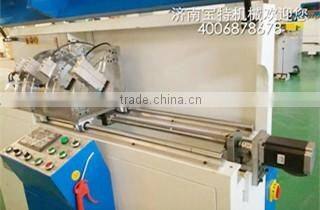

China Suppliers Aluminum Window and Door CNC Corner Profile Cutting Machine,LJJ-CNC-500

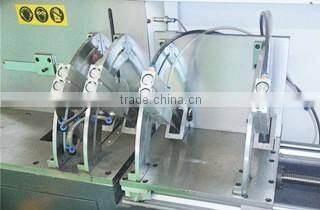

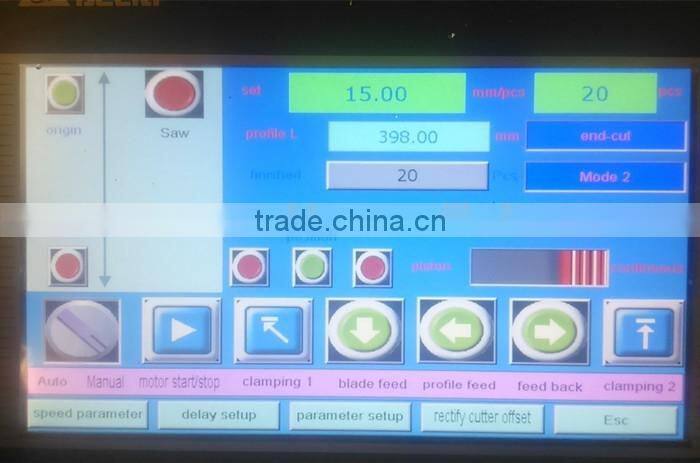

It is a CNC full automatic machine specially used to cut corner connector.Saw blade is made from imported hard alloy driven by powerful motor.Adjustable clamping system in front ,back,up and down direction.closed protective covering makes the operation safe.spraying cooling system ensure fast cooling.Machine body adopts integral construction with good rigidity.Linear bearing motion pair gives less resistance force and ensures high processing accuracy.The PLC control and auto feeding system with high efficiency is suitable for large volume production.Extensive range of processing dimension and suitable material.
Power Supply | As request |
Cutting motor power | 3kw |
Operation air pressure | 0.4-0.6Mpa |
Blade rotational speed | 3200 r/min |
Saw blade specification | D=500mm d=30mm |
Cutting length | Min3mm Max200mm |
Contour dimension(L*W*H) | 6300*1800*1600mm |
Cutting (width*height) | 140×280mm |
Machine weight(about) | 650kg |

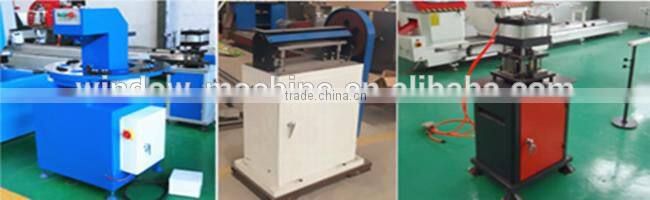

End milling machine
Copy router milling machine
Punching machine
Corner crimping machine
