Home > Products > Second hand textile machinery > Used Tsudakoma ZW408 Water Jet Loom With Dobby

Used Tsudakoma ZW408 Water Jet Loom With Dobby

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Year	2002
Place of Origin	Japan	Brand Name	Tsudakoma
Model Number	ZW408

Product Description

Sales Manager:Mr. Steven Liu

Whatsapp/Wechat:0086-13773240991
Skype:jaky5188

We can supply all spare parts for Promatech ,Somet ,Fimtextile ,Vamatex,Picanol,ITEMA,Nuovo pignone SMIT,Staubli ,Sulzer ect.

Used Tsudakoma ZW408 Water Jet Loom With Dobby

1. Improve quality of products
2. High-speed and high efficient textile
3.600rpm

main technical parameters

Oprional rate:Maximum 2280m/minute
Number of heald frame piece:16
a)Plain loom up to 8
b)Cam openings loom 2,4,6,8,10 film
c)A maximum of 16 Dobby Loom
Installed power:3.5kw,4.6kw
Weft density range:6-60pick/cm
Speed:the designed maximum speed 1200rpm/min(actual speed according to the fabric sizing)

For yarn type:

(1)nylon filament

(2)nylon with wire-free pulp

(3)multi-resin raw silk

(4)Multiple lipid retractable wire

(5)Multiple lipid rayon

(6)multi-resin hard twist yarn

(7)Multiple lipid extension wire

(8)Multiple lipid-free pulp with silk

(9)elastic fiber yarn

(10)lmitation silk cotton

Main Technical Parameters

Particulars	Main Specifications
Nominal reed space(cm)	135,190,210,230,260,280,340 cm
Connected electric power(kw)	2.2kw 135cm-190cm or 2.8kw 210cm -340cm
Inching	Stop control in position and operation by stop button
Shedding	Cam shedding:10 heald frames maxDobby shedding:16 heald frames max
Let-off	Variable speed controller
Weft density	5-60picks/cm
Beam flanges diameter(mm)	600mm
Leno device	Planetary gear type with proximity switch
Drying	By suction blower device
Weft yarn cutting	By mechanical cutters on both sides of selvedges
Nozzle and needle	As your requirement
Rate of weft insertion	2280m/min
Electric power source	380v
Electric motors	1.5kw 135cm-190cm & 2.2kw 210-340km
Mechanical speed	1000RPM max (according to fabric)
Control panel	Logic & PC type
Indicator signal lamp	4-colour LED type
Weight	1.6 tons depending on reed space

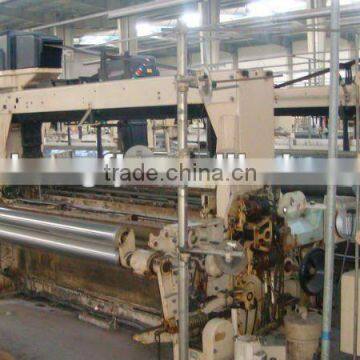

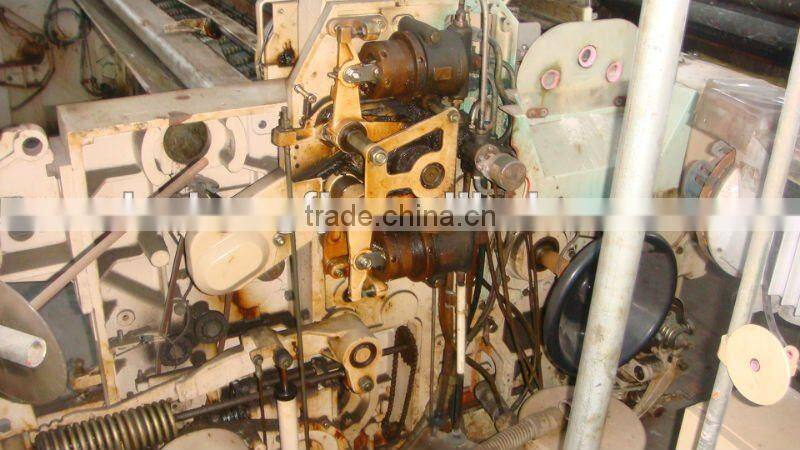

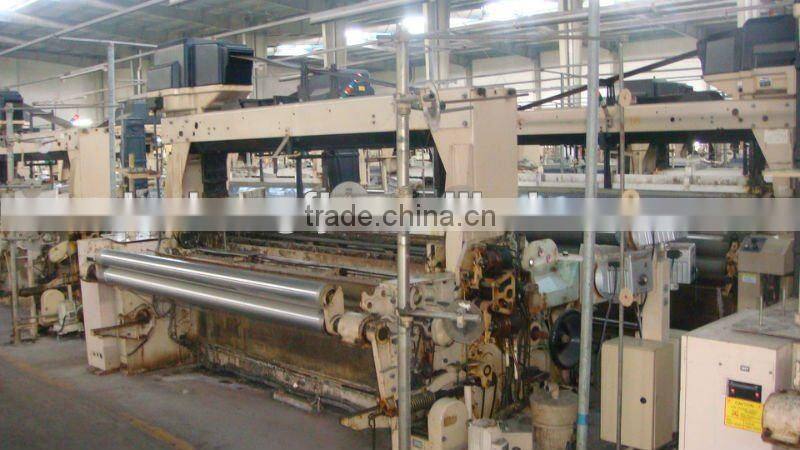

Picture Show
