W:CDH-V-7L 7 Lines V Folding Hand Towel Machine
- XIAMEN PORT CHINA
- T/T
You May Like
Product Details
| Condition | New | Product Type | Other, towel paper machine | |
| Processing Type | Other, folding and cutting | Place of Origin | Fujian, China | |
| Brand Name | chuangda | Model Number | CDH-V-7L | |
| Dimension(L*W*H) | 6300*2900*1980 | Weight | 4000kg | |
| Certification | CE | Warranty | within one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CDH-V-7L 7 Lines V Folding Hand Towel Machine
CDH-V-7L used PLC computer programming technology, variable frequency speed control, human-machine interface operating system; CVT transmission ratio before and after, to adapt to pull the paper to improve the uniformity of finished appearance
Functions and Features:
1.Configuration Pneumatic embossed steel to steel, pneumatic separator
2.Back pressure on the use of paper planes paper, non-polar ratio adjustment, adjusting the tension of base paper.
3.The use of Roots vacuum adsorption system, inspiratory capacity and stable operation.
4.Break automatic shutdown system, to avoid breaking free paper or paper waste generated.
5.The use of traction before and after the switch to move the base, operation is more simple and more secure
Main Technical Parameter:
Production Size | 200×200mm |
Parent Roll Size | 1200mm (other sizes are available) |
Paper Core Size | 76.2mm (other sizes are available) |
Production Speed | 80 m/ min |
Control System | PLC Control System |
Embossing System | Steel to Steel |
Cutting System | Pneumatic Cutting |
Drive System | Synchronous Belt Nonpolar Gear-box |
Counting System | Printing ink |
Power System | 5.5 KW |
Vacuum System | 37 KW Roots Vacuum Pump |
Pneumatic System | 3 HP Air Compressor ≥5kg/cm Pa (prepared by customer) |
Machine Size | 6300×2900×1980mm (L×W×H) |
Net Weight of Machine | 4000 kg |
Specification of Material | 35-38 g/m Wet Strength Paper |
Working flow:
Unwinding the paper roll ,make it go through the embossing unit,then the paper absorb by the steel roller and folding the paper ,and then cutting the paper ,finally out put the product

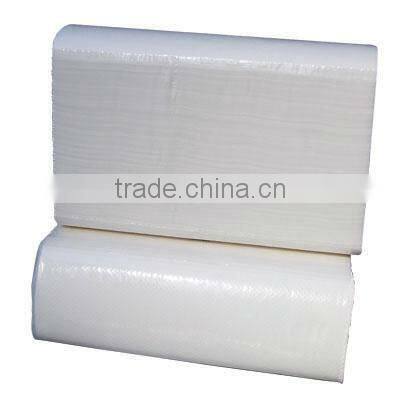

Finished product:
Our factory:
