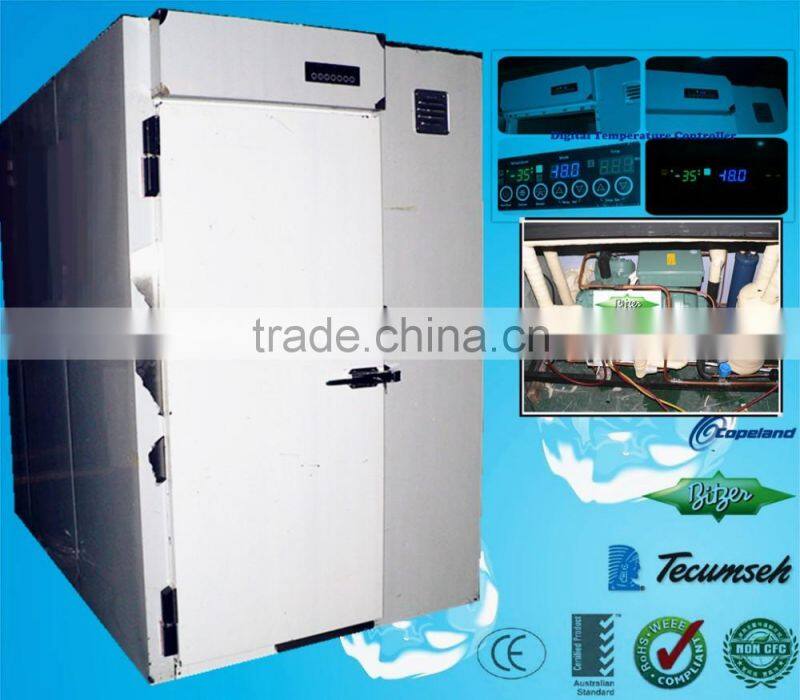

Blast Freezer/deep Freezer/frozen Machine

Blast freezer  Product Feature

1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick

2. Imported compressor for Blast freezer , famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. Blast freezer can freezer the food from 60kg ~500kg
4. we can design the module Blast freezeror the finished assembled Blast freezer
5. Environment-protection Refrigerant :R404a
6.hight quality with CE Rohs
7. Blast freezer Refrigeration unit : Germany brand Bitzer unit

Blast freezer  specification

Model BF-2-S :

Blast freezer  CONSTRUCTION:

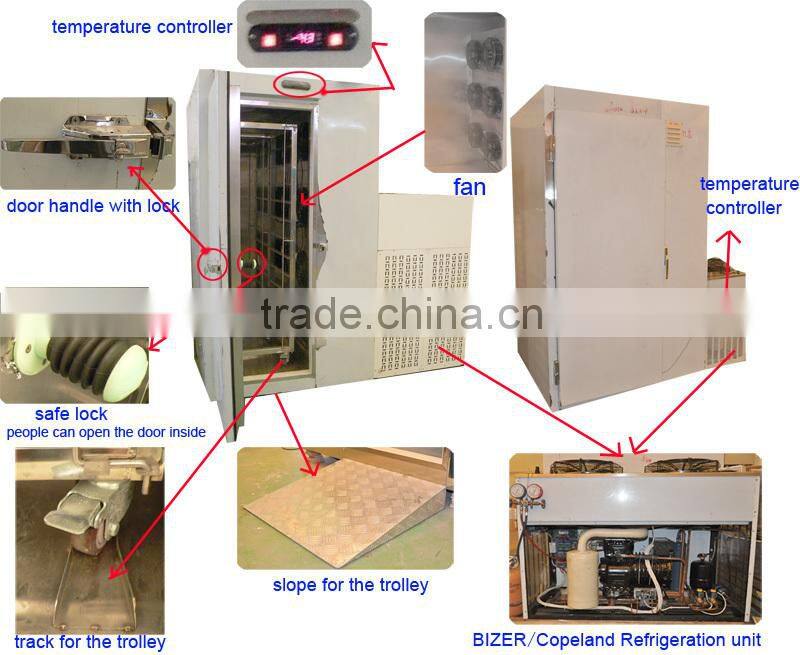

The Blast freezer  is included freezing chamber , refrigeration unit, trolleys, slope .

The Blast freezer  freezing chamber is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is with magnetism,which can be auto close .

In order to know more about our Blast freezer  , please check the following detailed pictures

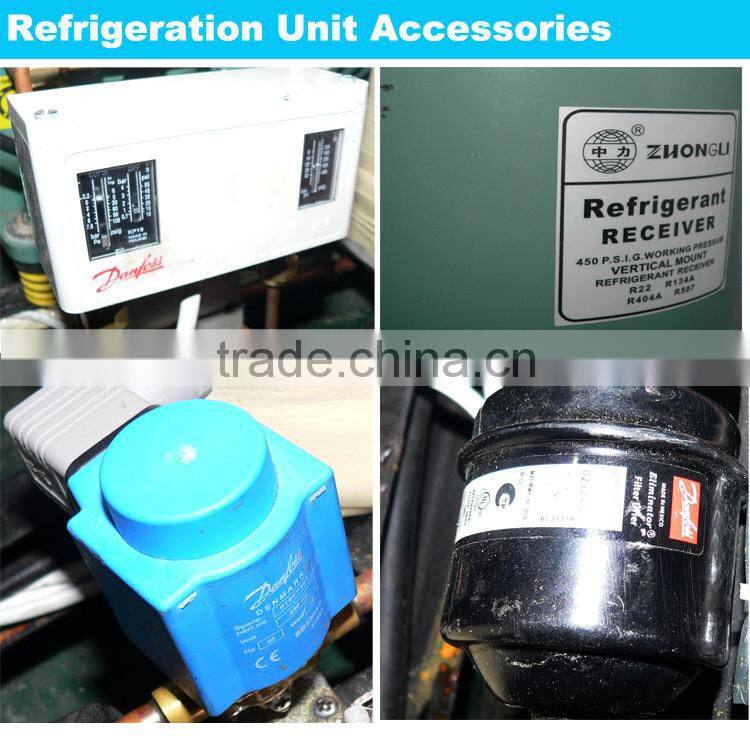

Blast freezer  Refrigeration Unit :

The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a semi- hermetic type with inherent overload protection.

All the parts is famous brand

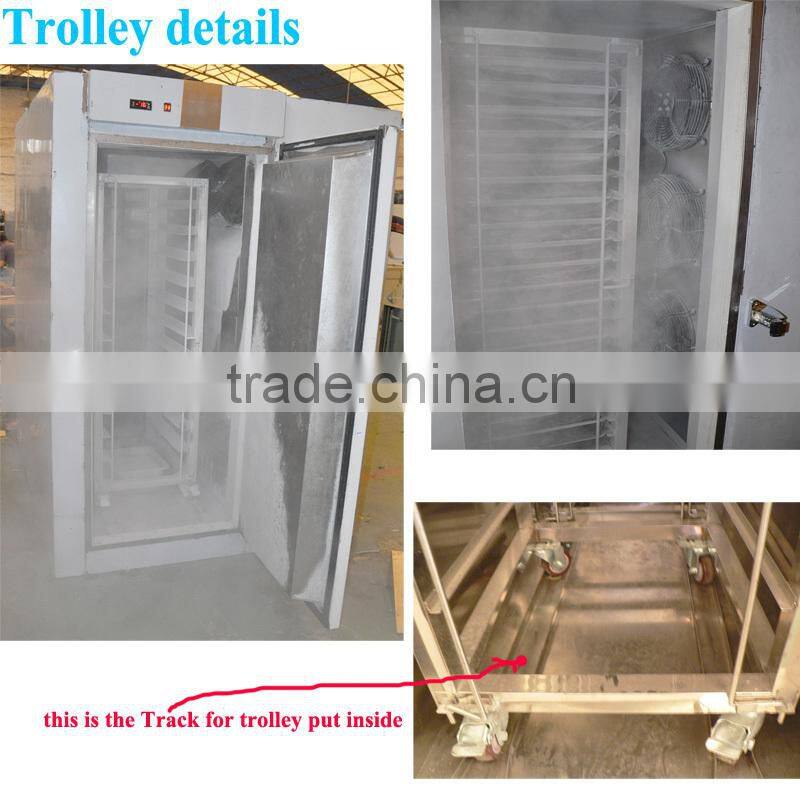

Each Blast freezer   will with Trolleys.
Trollery size is 500X600X1450 mm ( 18 layers) or 500*600*1850mm ( 28 layers).

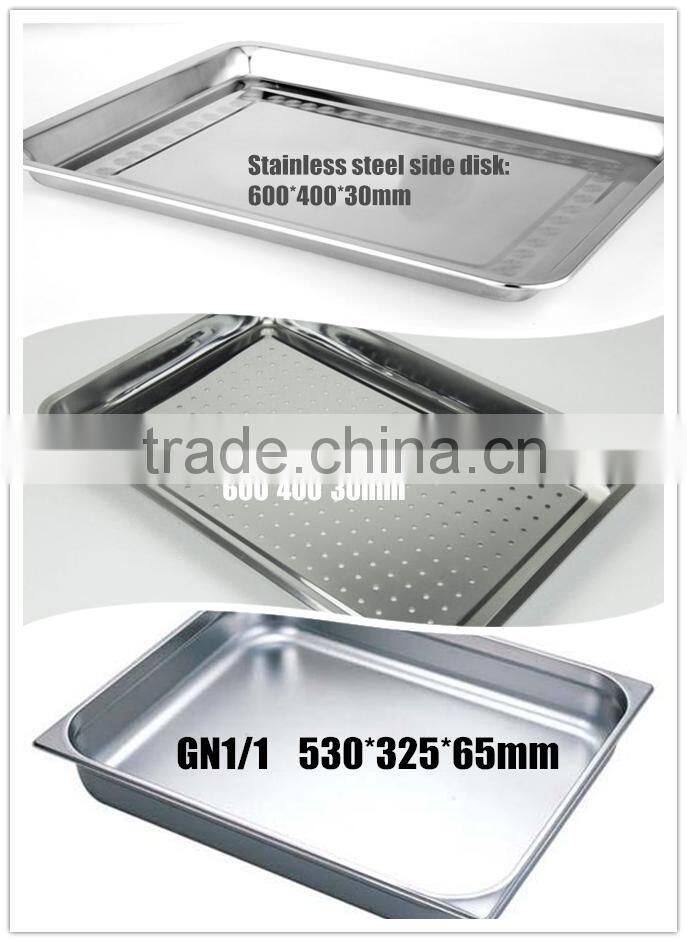

people can put the food on the pan , then put the pan to the trollerys , finally , push the trollerys into the Blast freezer   for quick freezing

Stainless steel panel for  Blast freezer

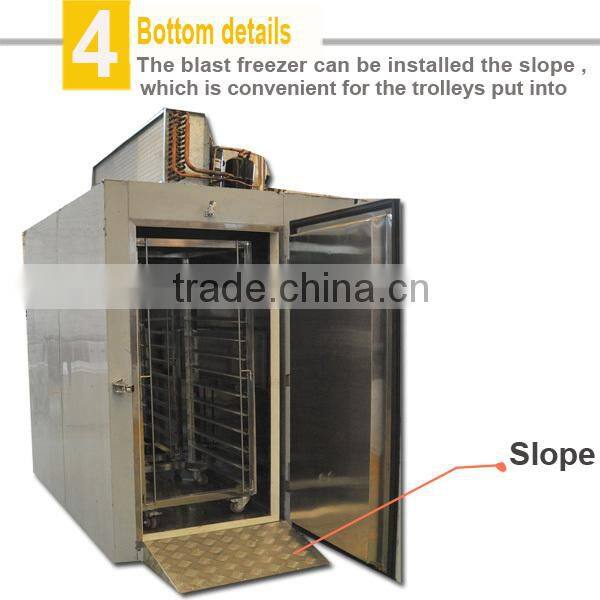

The Blast freezer  is with the slope ,which conventient for the trolleys put into the Blast freezer

Blast freezer  temperature can fall down from +70degree C to -35 degree C or -45 Degree C  (just accprding to the food feature  and size) , it can be Auto-defrosting . so there is no frost inside even if the temperature is very low

Blast freezer  door :

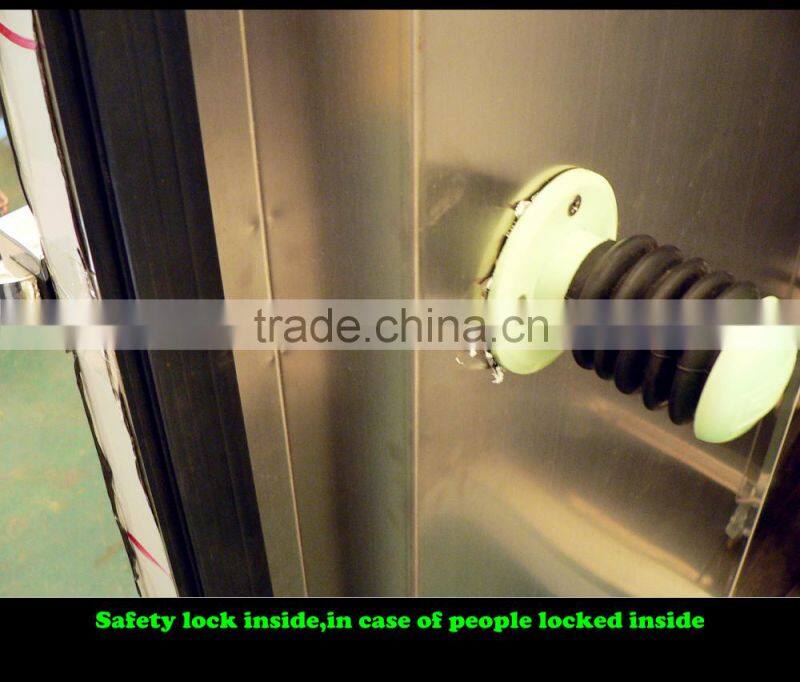

We can design the door can be auto close . Also , we design the door inner with safty lock .It can open the door from the Blast freezer  inside .

  Packaging information for the  Blast freezer

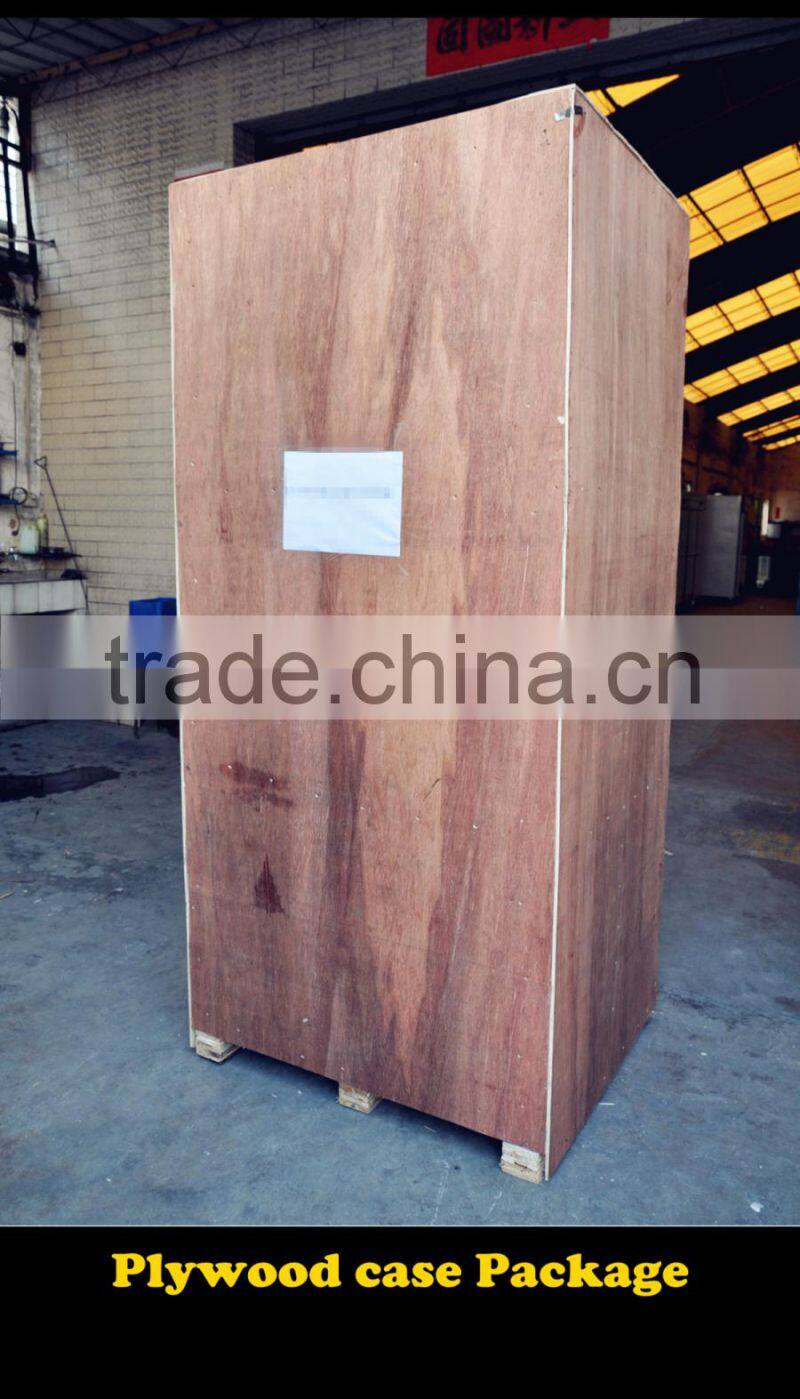

 1. plywood case for sample Blast freezer order

 2. packaging size : 2000*2010*2300mm

 we are the manufacturer to do the  Quick freezer , So OEM order is welcome . In order to design the suitable Quick freezer  for your , please answer us the following quesions:
