polyurethane cold stores panel with PPGI surface
- 10000 Square Meter / Square Meters per Month
- FOSHAN CHINA
- T/T D/P D/A
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | YQ | |
Model Number | YQ | Type | Refrigeration Compressor | |
Application | Refrigeration Parts | Certification | CE |
Product Description

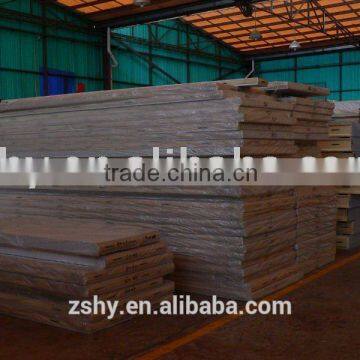

polyurethane panel
Features of our Cold storage Cold room Walk in freezer Panel:
1. The cold storage room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel
density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel
and durable for anti-scratch
4. The hinged door panel of our cold-room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high
quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasterners for
tight connection and sealing of the cold room.
Dimension | Length (m) *Width (m)*Height (m) According to client's requirement . |
Panel | polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material | BASF. |
Panel thickness | 50mm,75mm,100mm,150mm,200mm |
Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel |
Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
Type of door | hinge door, convex door, sliding door. |
Temp.of room | -50~+20 degree, optional |
Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit | Copeland / Bitzer / Sanyo etc |
Refrigeration type | air cooled / water cooled |
Fittings | all necessary fittings are included, optional |
Place to assemble | indoor/out door(concrete construction building/steel construction building) |
Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ optional |
2)Steel sheet cover: painted galvanized steel steel, we also have stucco embossed aluminum, stainless steel,and PVC stell.
3)Panel thickness: for the standard cold room is 100mm
50mm (operating temperature 5 or above)
75mm(operating temperature -5 or above)
100mm (operating temperature -25 or above)
150mm (operating temperature -45 or above)
200mm (operating temperature -55 or above)
4)door: convex door,we also have hinge door, sliding door
5)refrigeration unit: copeland brand compressor
6)all necessary fittings are included
