Home > Products > Channel Steel > Hot Rolled Channel

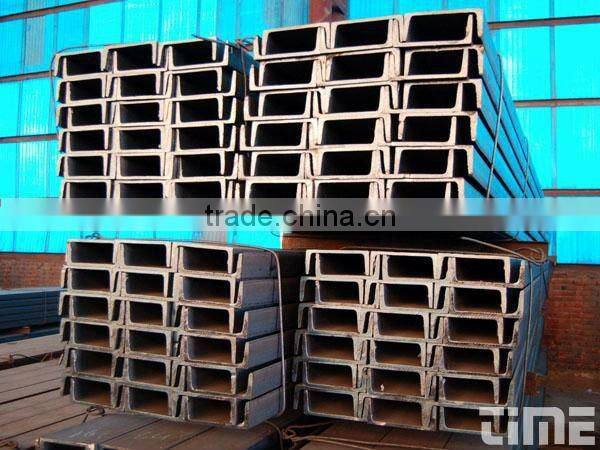

Hot Rolled Channel
- TIANJIN CHINA
- T/T
You May Like
Product Details
| Standard | BS, DIN, JIS | Dimensions | 50*25-200*100 | |
| Grade | JIS G3192,SS400,EN10025,DIN1026 | Place of Origin | Hebei, China | |
| Brand Name | TIME | Model Number | 50*25-200*100 | |
| Shape | U Channel | Application | contribution and buildings | |
| Perforated Or Not | Not Perforated |
Product Description
Specifications
1.directly factorychinese and JIS standard U Channels
2.Specification: from 5# to 40# and 75*40 to 150*75
3.Material:Q235
U Channel:
We are manufacturer and can supply U channel according to JIS standard,Gost Standard ,EN standard and Chinese standard.
STEEL CHANNEL SPECIFICATION: GB707 JIS3192 UPN
We have Steel Channel Bar 6 years exporting experiene
We have factory with more competitive price,and full size stock.
THE STEEL CHANNEL DETAILS SIZE AS FELLOWING:
JIS 3192 Standard U Channel
size
Depth x Flange width
(mm)
Web thickness
(mm)
Flange thickness
(mm)
Weight
(kg/m)
U50
50x25
3.0-5.0
6.0
2.37-3.46
U75
75x40
3.80
7.0
5.3
U75
75x40
4.0
7.0
5.6
U75
75x40
4.5
7.0
5.85
U75
75x40
5.0
7.0
6.92
U100
100x50
3.8
6.0
7.3
U100
100x50
4.2
6.0
8.03
U100
100x50
4.5
7.5
8.97
U100
100x50
5.0
7.5
9.36
U125
125x65
5.2
6.8
11.66
U125
125x65
5.3
6.8
12.17
U125
125x65
5.5
8.0
12.91
U125
125x65
6.0
8.0
13.40
U150
150x75
5.5
7.3
14.66
U150
150x75
5.7
10.0
16.71
U150
150x75
6.0
10.0
17.90
U150
150x75
6.5
10.0
18.60
U150
150x75
9.0
12.5
24.00
U200
200x80
7.5
11.0
24.60
U250
200x90
9.0
13.0
34.60
UPN Channel
size
Depth x Flange width
(mm)
Web thickness
(mm)
Flange thickness
(mm)
Weight
(kg/m)
UPN140
140 x 60
7
10
16
UPN160
160 x 65
7.5
10.5
18.8
UPN180
180 x 70
8
11
22
UPN200
200 x 75
8.5
11.5
25.3
